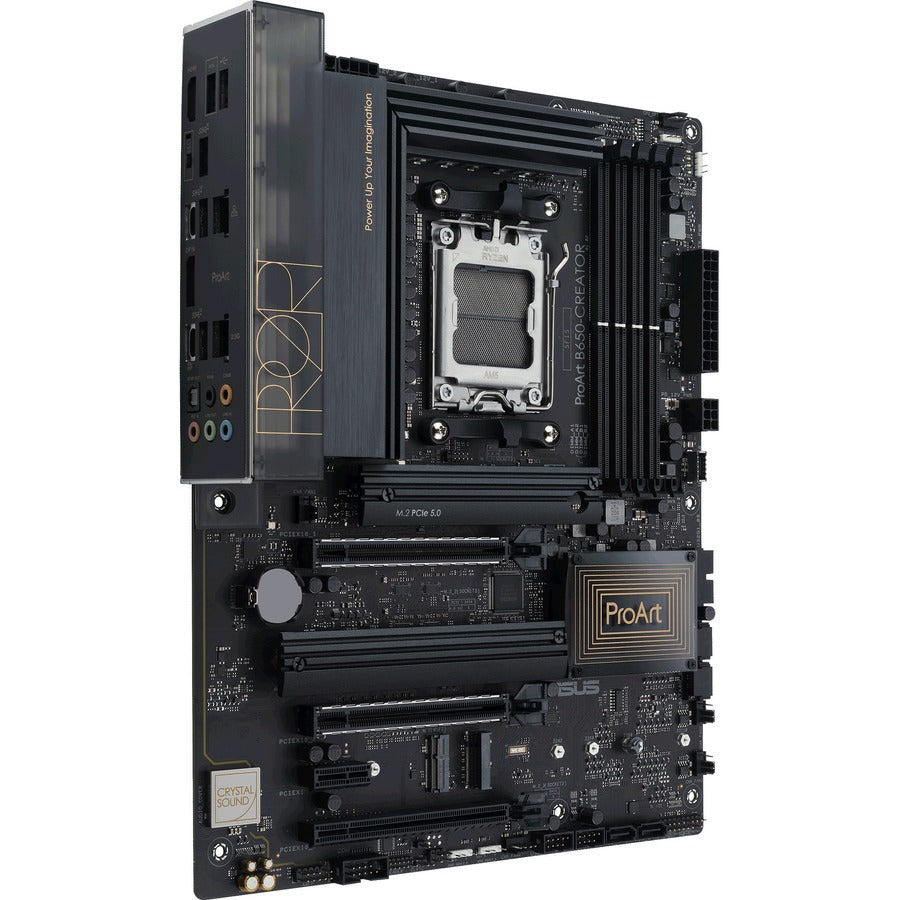

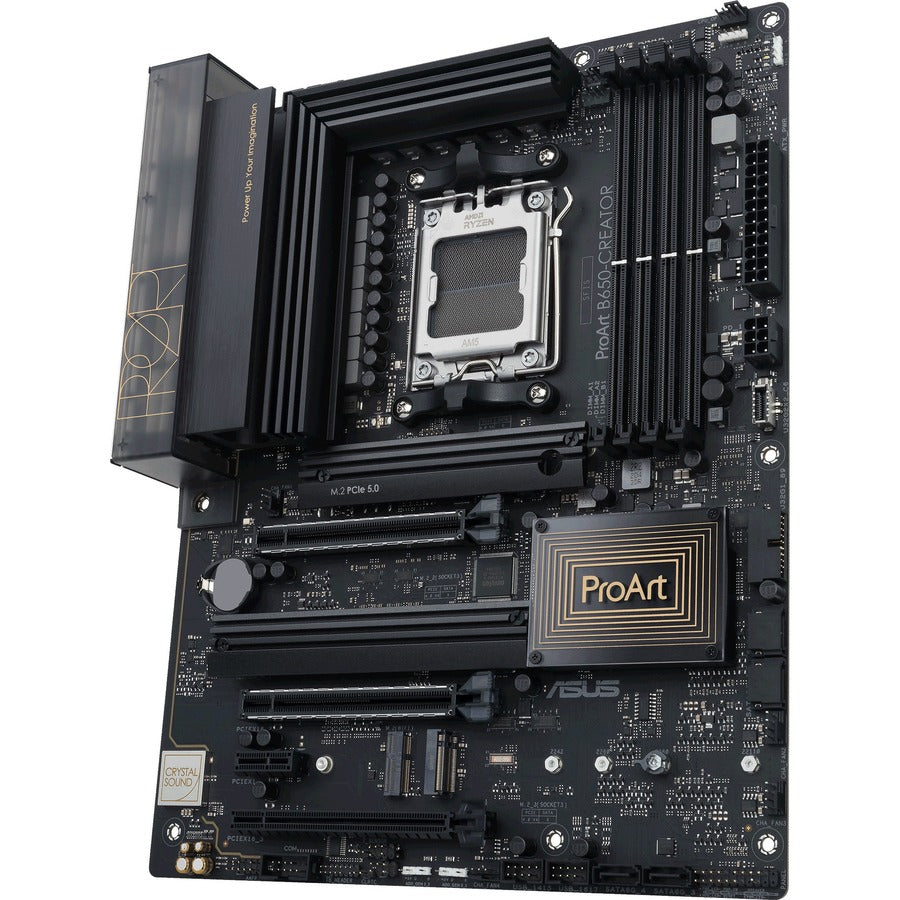

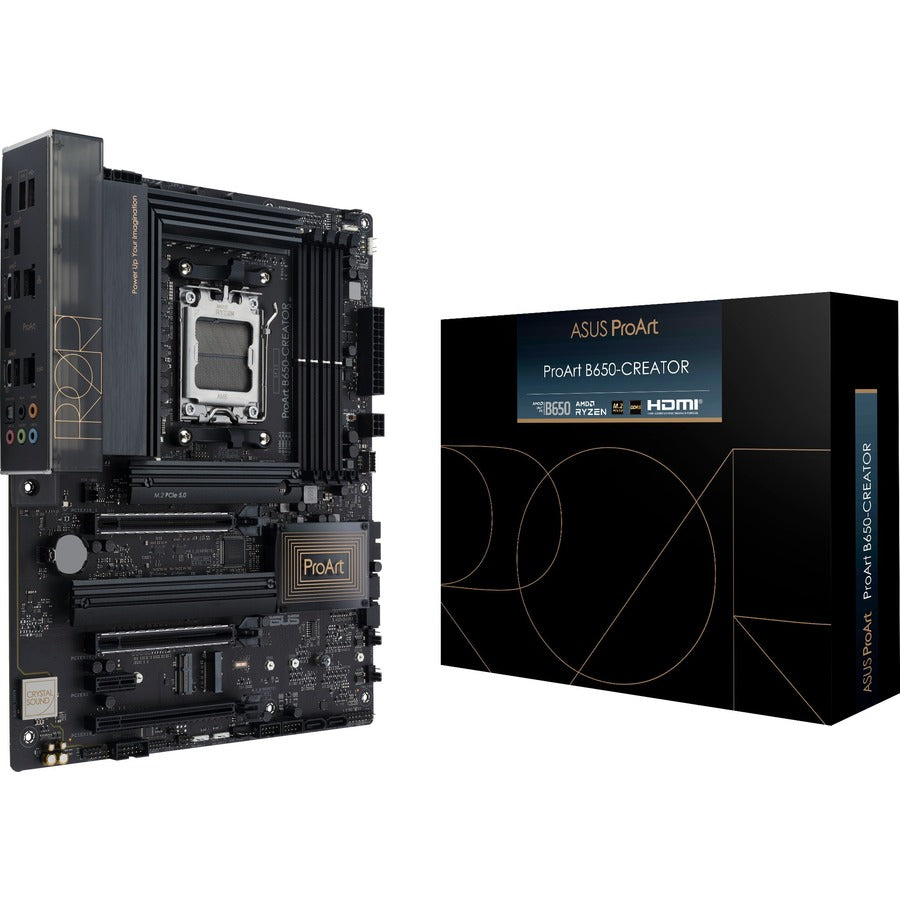

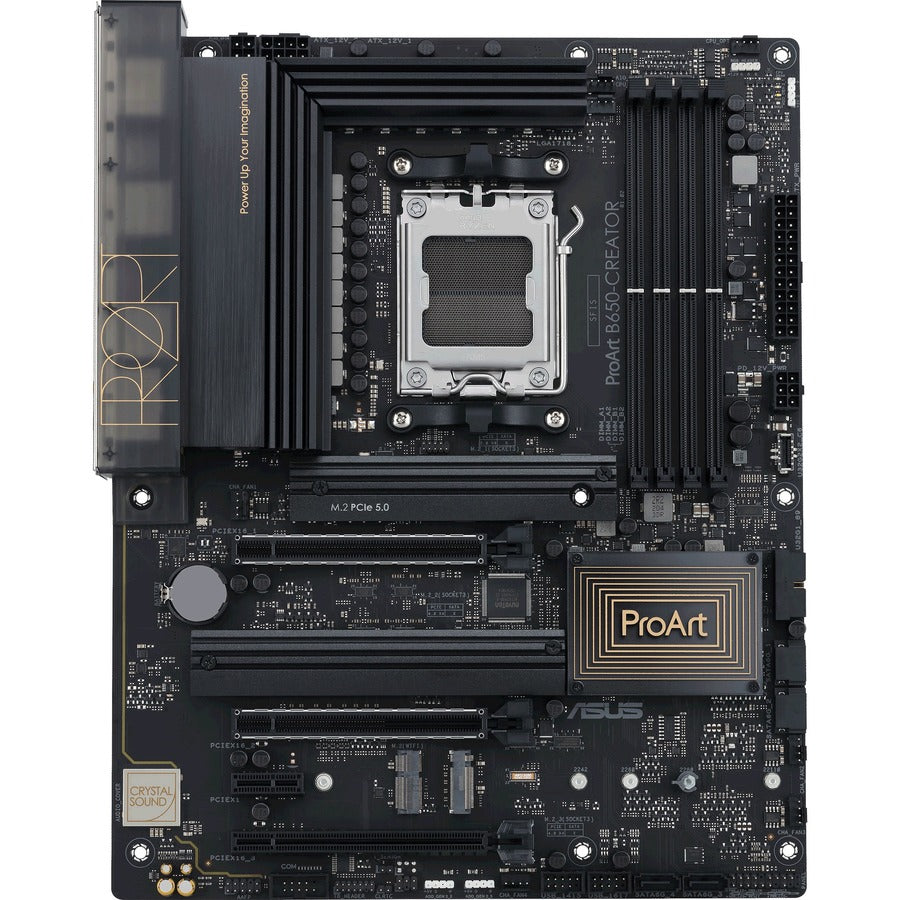

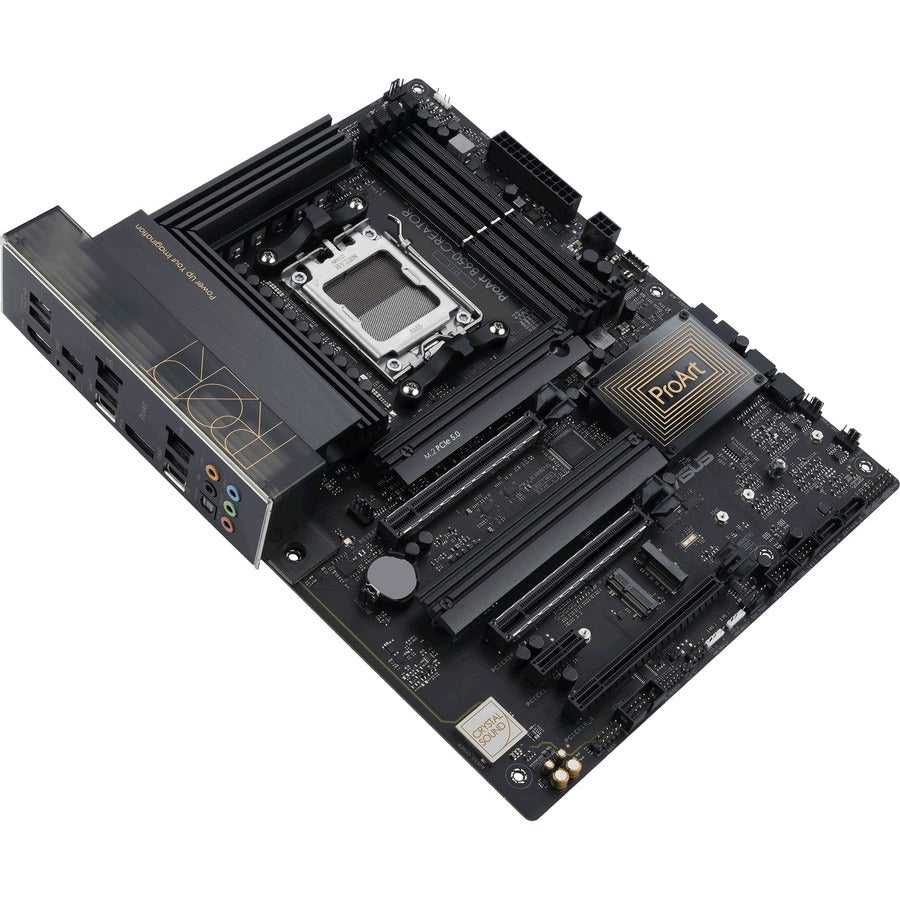

Asus ProArt B650-CREATOR Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX PROART B650-CREATOR

ProArt B650-CREATOR

ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

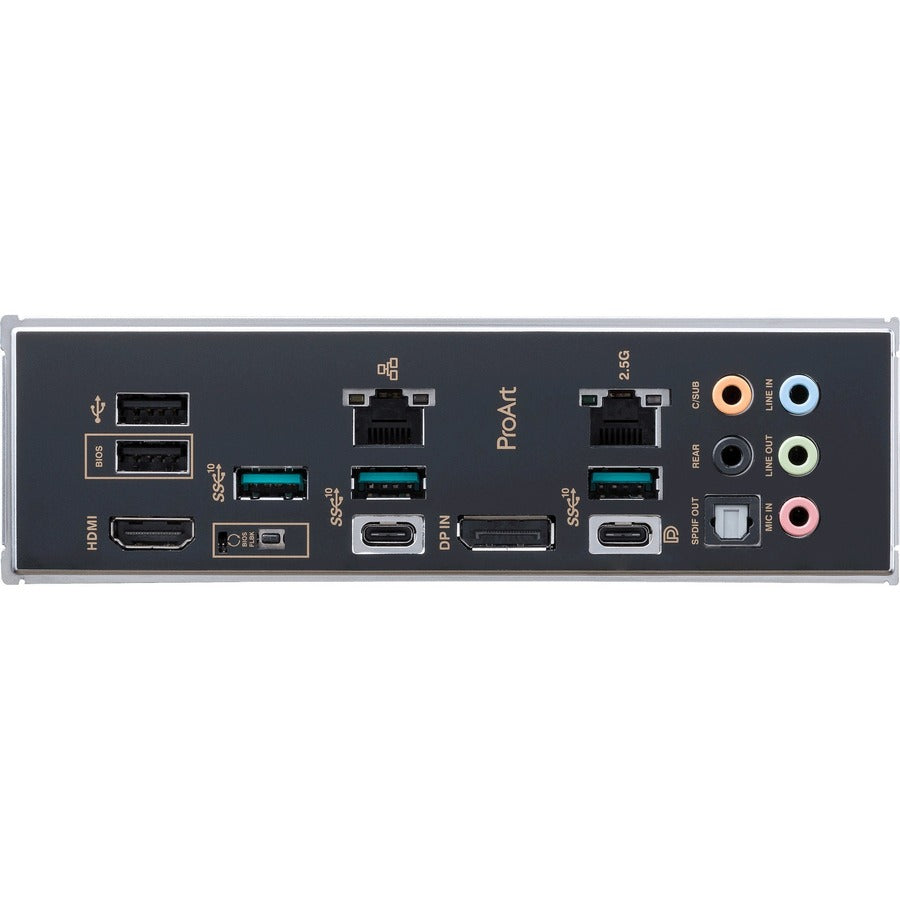

Comprehensive Connectivity | USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display

USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

USB4® Support

ProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

Multi-card support

The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.

Networking | Dual Ethernet

2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules.

PCIe 5.0 M.2 Storage

The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

The core of your powerful workstation | Robust power design | 12+2 teamed power stages

Rated for 60 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.

• Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
• DDR5 SDRAM slot for convenient installation of memory
• RAID supported levels provide data reliability and fault tolerance
• DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
• ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
