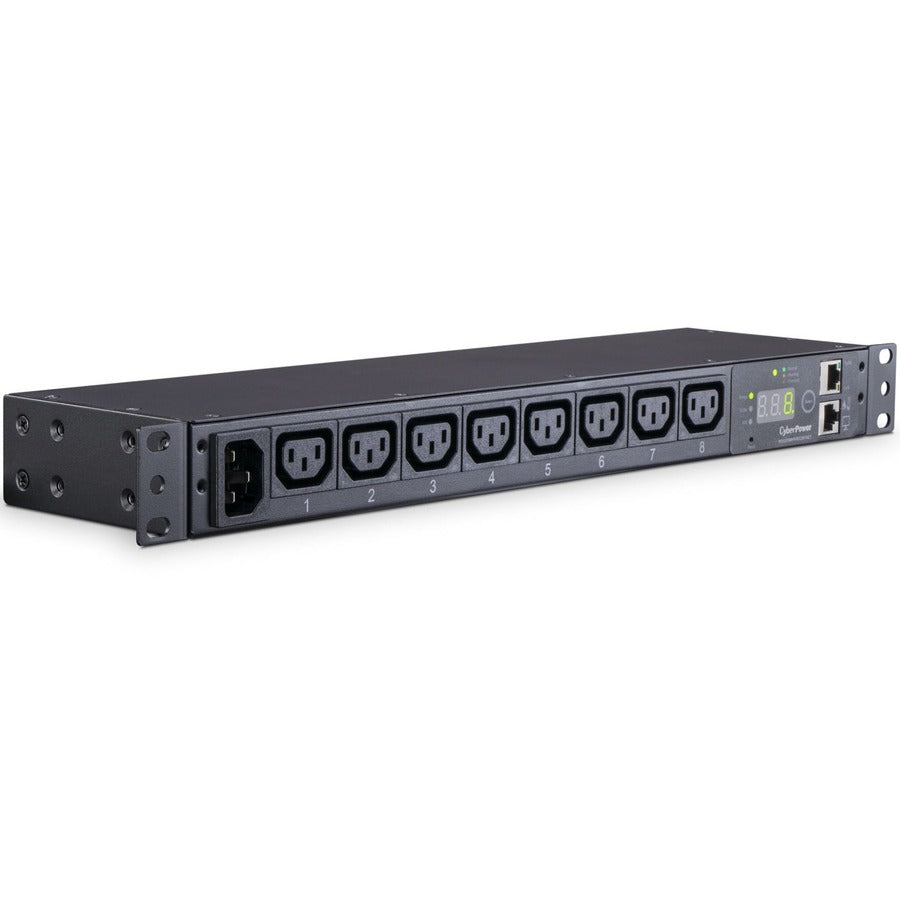

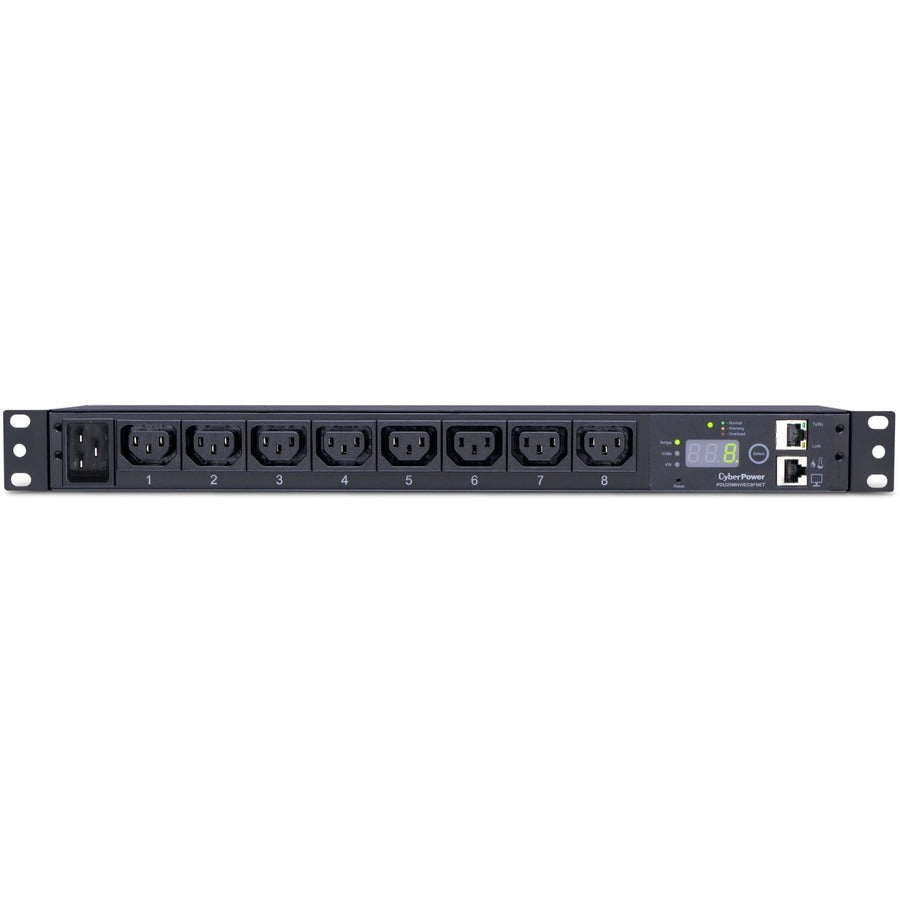

CyberPower Monitored PDU RM 1U PDU20MHVIEC8FNET 20A 8-Outlet PDU20MHVIEC8FNET

The CyberPower (PDU20MHVIEC8FNET) 8-outlet 1U rack mount monitored power distribution unit (PDU) provides 200-240V 20A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Power status can be monitored over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD. The front LCD displays the electrical current used by connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the IP address of the network interface.

The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally or vertically, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

• 208V, 20A Monitored PDU with SNMP Network interface
• LED Digital Display (Load, Voltage, KW, and IP Address)
• Output: 8 IEC-320 C13 Receptacles. Input: IEC-320 C20 Plug with 10-ft. power cord
• Automatic events notification via Email and SNMP Trap
• 1U rack mount.

• 1U rack mount.
• Automatic events notification via Email and SNMP Trap
• Output: 8 IEC-320 C13 Receptacles. Input: IEC-320 C20 Plug with 10-ft. power cord
• LED Digital Display (Load, Voltage, KW, and IP Address)
• 208V, 20A Monitored PDU with SNMP Network interface

• Energy Star : No
• Product Series : Monitored
• Input Voltage : 230 V AC
• Rack Height : 1U
• PDU Type : Monitored
• Mount Type : Rack-mountable
• Package Contents :
  • Monitored PDU RM 1U PDU20MHVIEC8FNET 20A 8-Outlet
  • Mounting Brackets (2 Sets)
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 240 V AC
• Environmentally Friendly : Yes
• Plug/Connector Type : IEC 60320 C20
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Receptacle Type : IEC 60320 C13
• Limited Warranty : 3 Year
• Receptacle Detail : 8 x IEC 60320 C13
• Product Model : PDU20MHVIEC8FNET
• Network (RJ-45) : Yes
• Length : 4.41" (112.01 mm)
• Country of Origin : China
