CyberPower OR1000LCDRM1U Smart App LCD UPS Systems OR1000LCDRM1U

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.

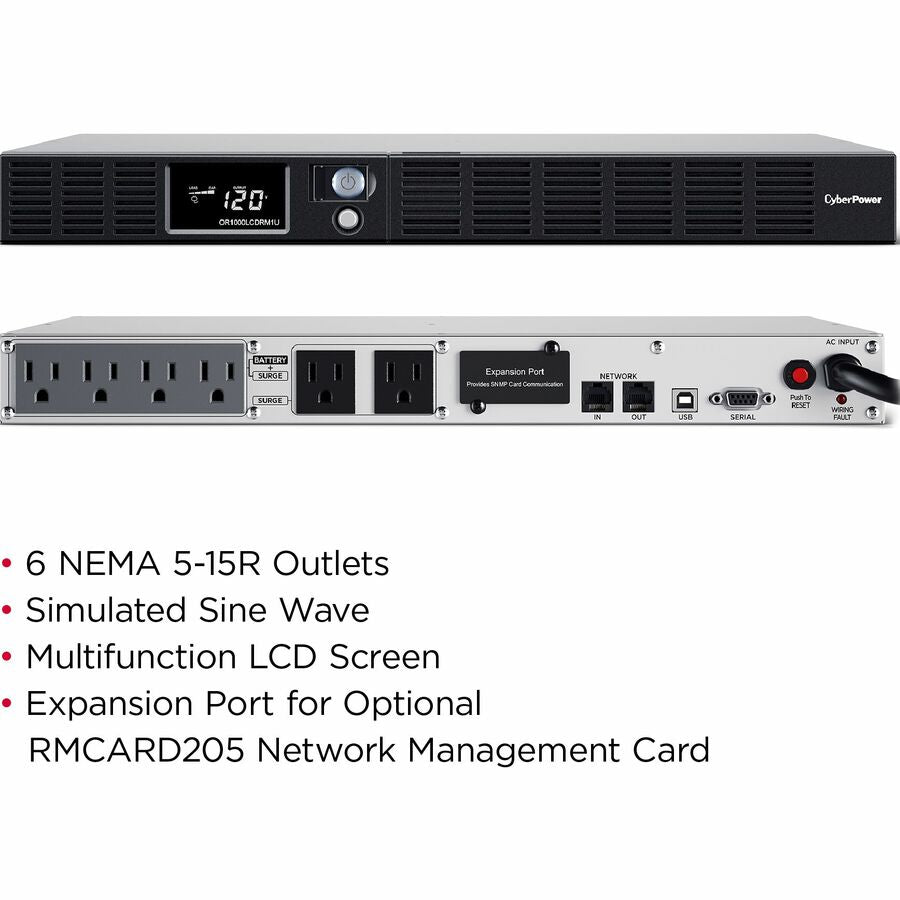

• Capacity: 1000 VA / 600 W
• Topology: Line Interactive
• Waveform: Simulated Sine Wave
• Output: 120 VAC ± 10%
• Plug type & cord: NEMA 5-15P, 10 ft. cord
• Outlet types: 6 � NEMA 5-15R
• Communication: USB, Relay, SNMP
• Management software: PowerPanel® Business
• Remote management: Yes, with optional RMCARD205
• Warranty: 3 year

• Input Voltage : 120 V AC
• Application/Usage : Telecommunication
• AVR : Yes
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 120 V AC
• Input Voltage Range : 90 V AC - 140 V AC
• Number of Surge-only Outlets : 2
• Waveform Type : Simulated Sine Wave
• Backup/Run Time (Half Load) : 13 Minute
• Network Management : SNMP Manageable
• Country of Origin : China
• Color : Black
• Number of Battery & Surge Outlets : 4
• Replaceable Battery : Yes
• Energy Star : Yes
• Product Series : Smart App LCD UPS
• Rack Height : 1U
• Package Contents :
  • Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS
  • User's Manual
  • Rackmount Brackets
  • USB A+B Type Cable
• Battery Chemistry : Sealed Lead Acid (SLA)
• Environmentally Friendly : Yes
• Typical Battery Recharge Time : 8 Hour
• Backup/Run Time (Full Load) : 3 Minute
• Plug/Connector Type : NEMA 5-15P
• Environmental Certification : RoHS
• Load Capacity : 1 kVA
• Form Factor : Rack-mountable
• Manufacturer : CyberPower Systems, Inc
• Product Type : Line-interactive UPS
• Receptacle Type : NEMA 5-15R
• Limited Warranty : 3 Year
• Receptacle Detail : 6 x NEMA 5-15R
• Product Model : OR1000LCDRM1U
