StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mount, LAN To DB9 Converter I23-SERIAL-ETHERNET
This 2-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.
Configuration and Management
The serial over LAN adapter is highly customizable using the Windows-based companion software, Device Server Manager (DSM), that enables the creation of virtual COM ports, allowing seamless migration of existing serial applications to the new virtual COM ports. The DSM provides a unified management experience, allowing multiple serial to Ethernet converters to be managed simultaneously. The converter also features a versatile web-based interface for remote management, making it compatible in mixed OS environments.
Flexible Installation and Rugged Chassis

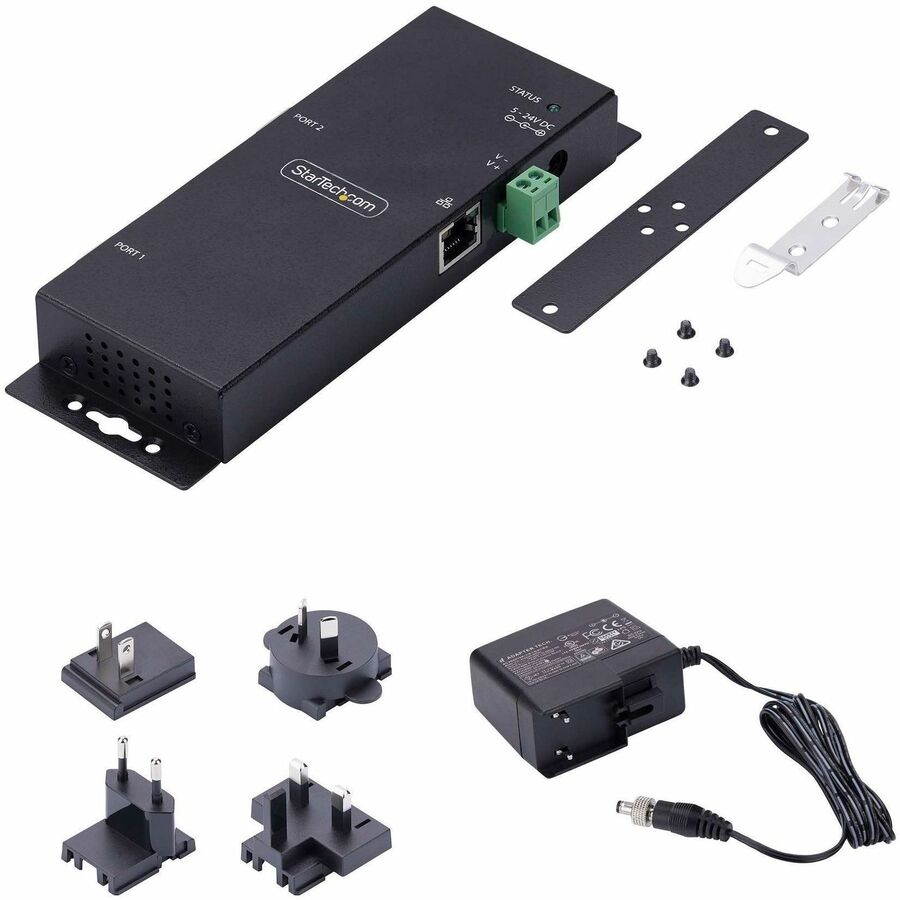

Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).
Ethernet and Power Options

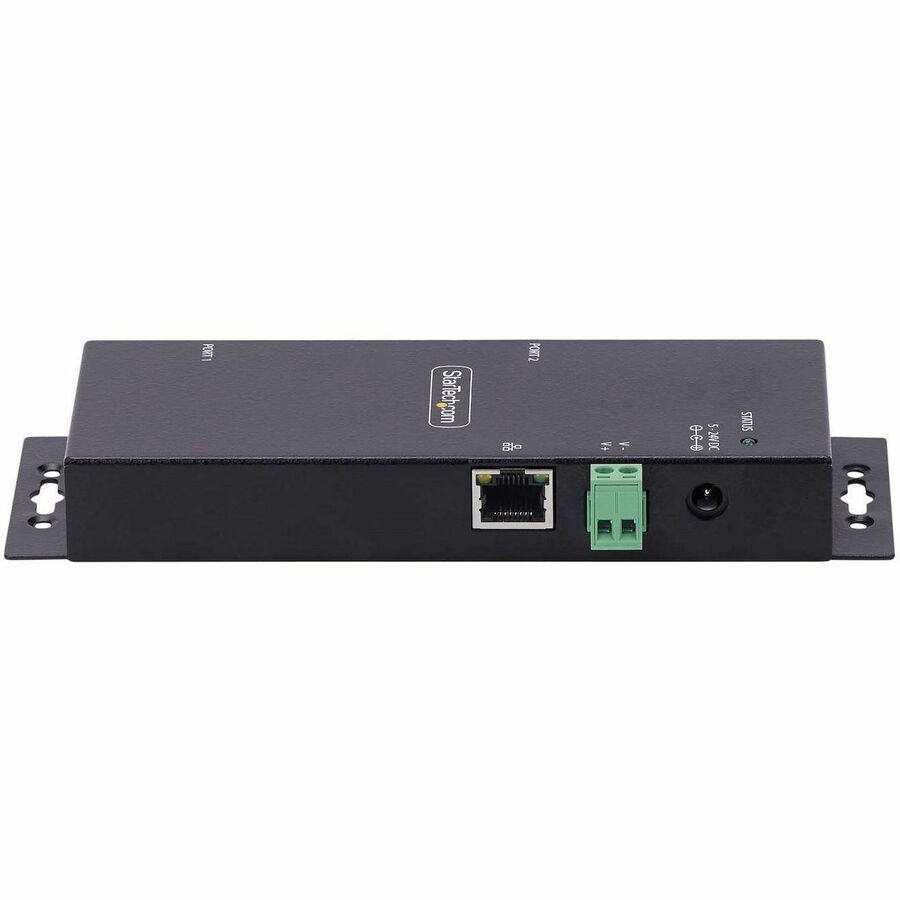

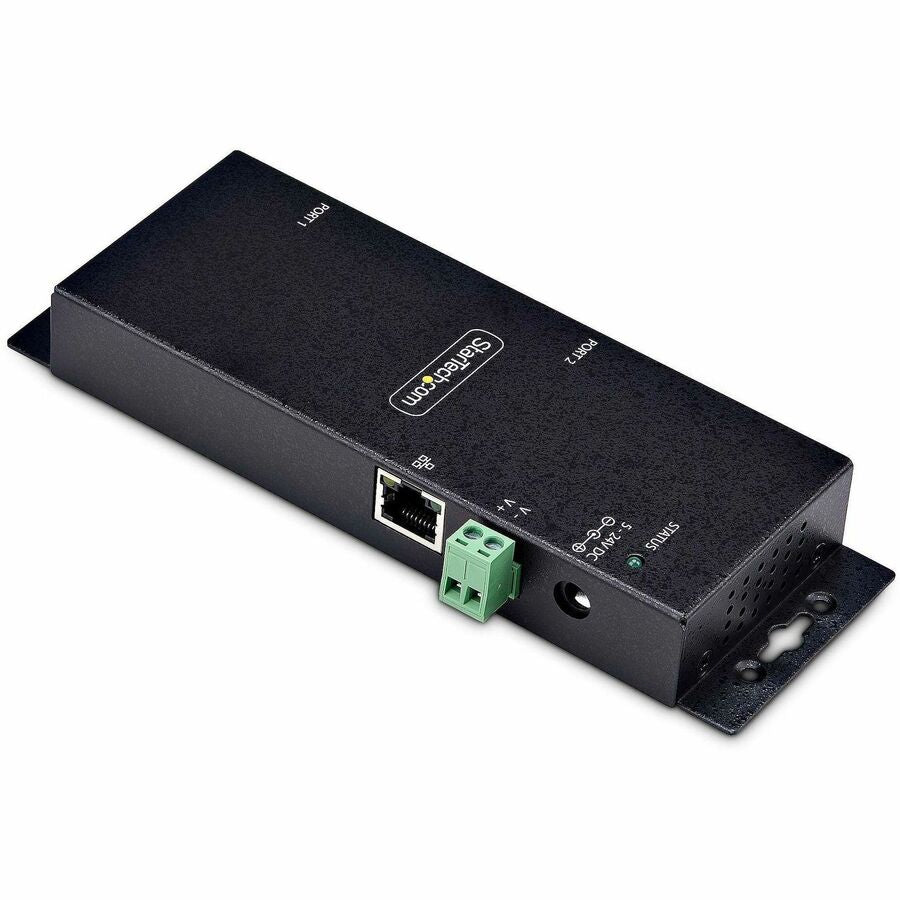

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.

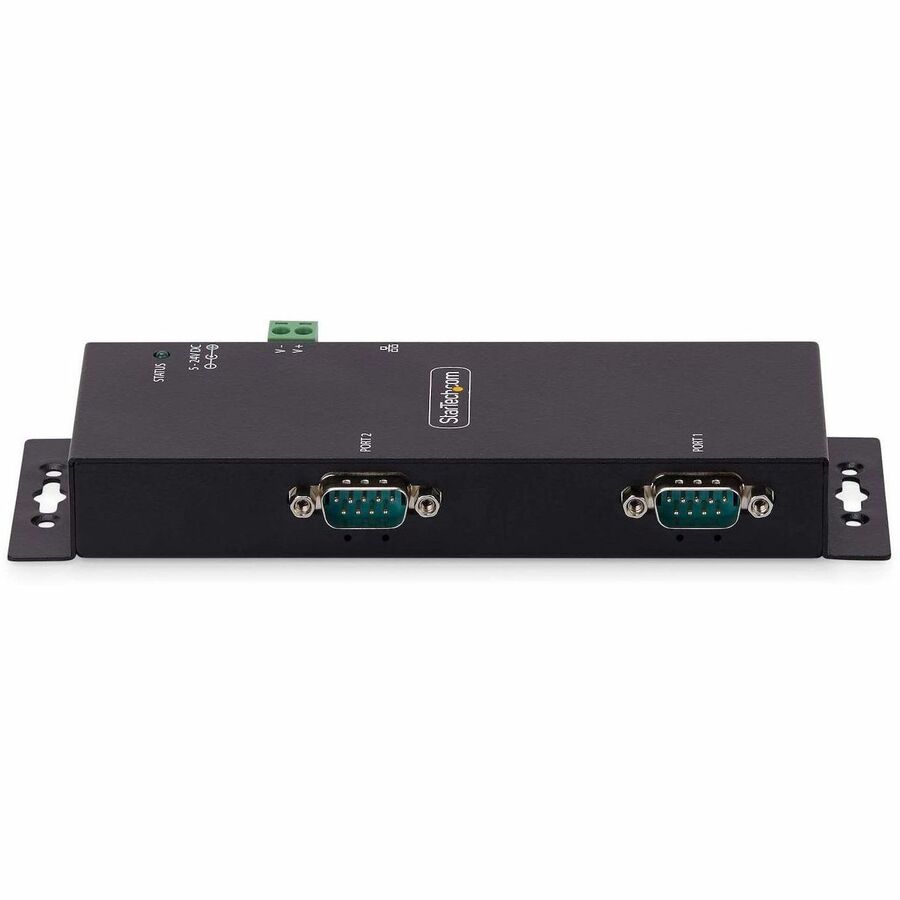

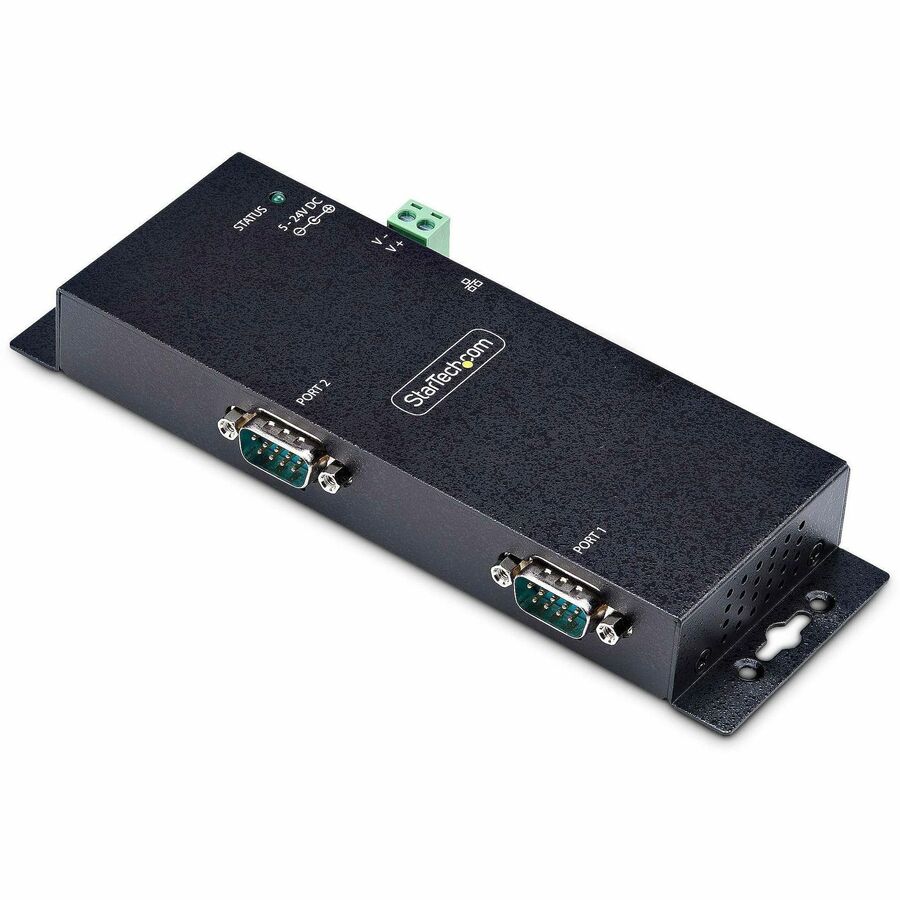

SERIAL TO IP CONVERTER: Connect up to two RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial ports supports up to 921.6Kbps; TAA-compliant
ETHERNET AND POWER OPTIONS: Single RJ45 port compatible w/auto-negotiation 10/100Mbps; Serial device server operates over Telnet (RFC2217)/UDP/TCP client/server; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
VIRTUAL COM AND WEBUI: Windows-based DSM (Device Server Manager) software enables virtual COM port management for one or more serial device servers; Fully configurable through a WebUI with universal OS compatibility

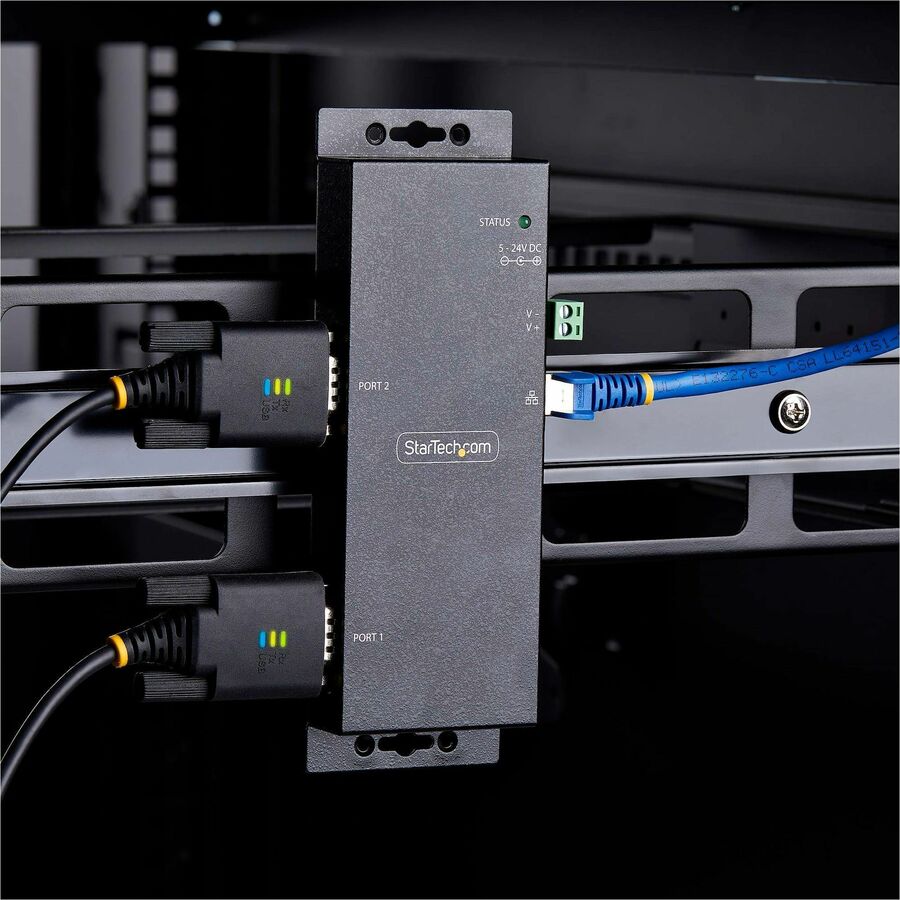

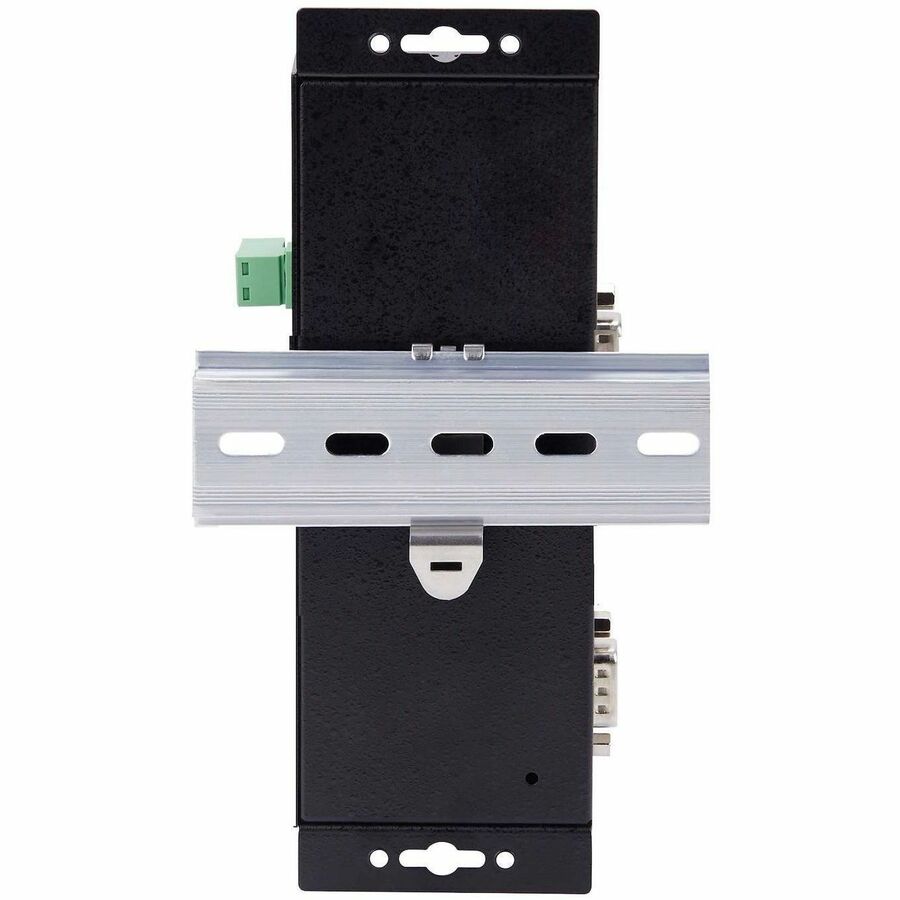

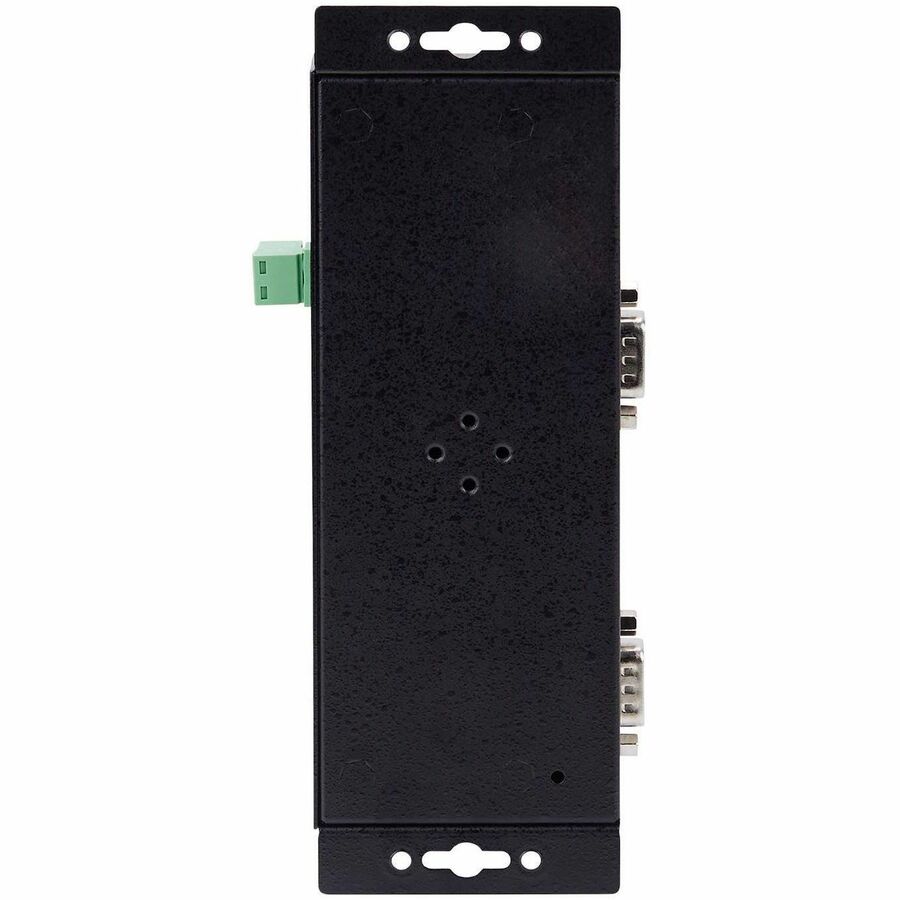

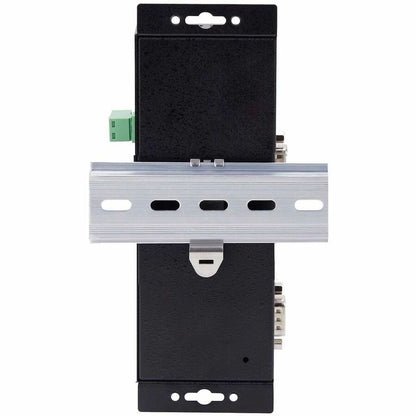

MOUNTING OPTIONS: Includes all the necessary hardware for wall and DIN rail mounting; Multiple mounting holes on the RS232 over IP adapter allow installation in the optimal orientation for any application
