StarTech.com 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems MPEX2S1P552

StarTech.com 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems MPEX2S1P552

En rupture de stock

For a custom quote please email sales@ziestech.com

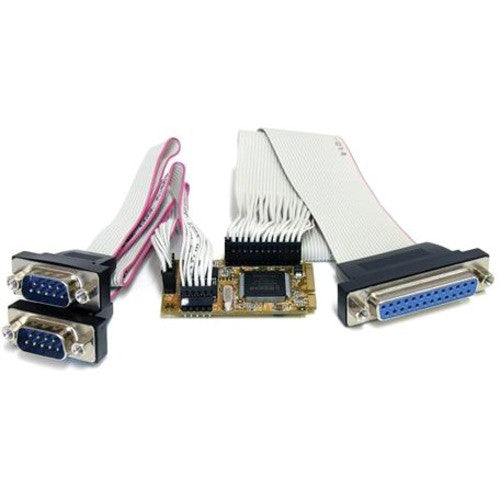

The MPEX2S1P552 2S1P Mini PCI Express Serial/Parallel Combo Card turns a mini-PCIe slot into two RS232 (DB9) serial ports, and one IEEE 1284 parallel port - a cost-saving solution for adding serial and parallel support to embedded systems that lack built-in serial/parallel functionality.

The 16650 UART adapter card features a native PCI Express single chip design, which enables you to take advantage of full PCI Express capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .

Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

More from the Manufacturer


  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
  • Compliant with PCI Express base specifications revision 1.1
  • Native single-chip, single lane PCI Express
  • 256-byte deep FIFO
  • Two RS232 serial ports, one IEEE 1284 parallel port
  • TAA Compliant : Yes
  • Weight (Approximate) : 11.3 g
  • Packaged Quantity : 1
  • Depth : 2" (50.80 mm)
  • Width : 1.20" (30.48 mm)
  • Package Contents : 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems, 1 x Mini PCI Express Card, 1 x Driver CD, 1 x Instruction Manual, 2 x DB9 to IDC Ribbon Cable, 1 x DB25 to IDC Ribbon Cable
  • Height : 0.30" (7.62 mm)
  • Environmentally Friendly : Yes
  • Manufacturer Part Number : MPEX2S1P552
  • Brand Name : StarTech.com
  • Environmental Certification : REACH
  • Form Factor : Plug-in Card
  • Manufacturer : StarTech.com
  • Product Type : Serial/Parallel Combo Adapter
  • Limited Warranty : Lifetime
  • Product Name : 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems
