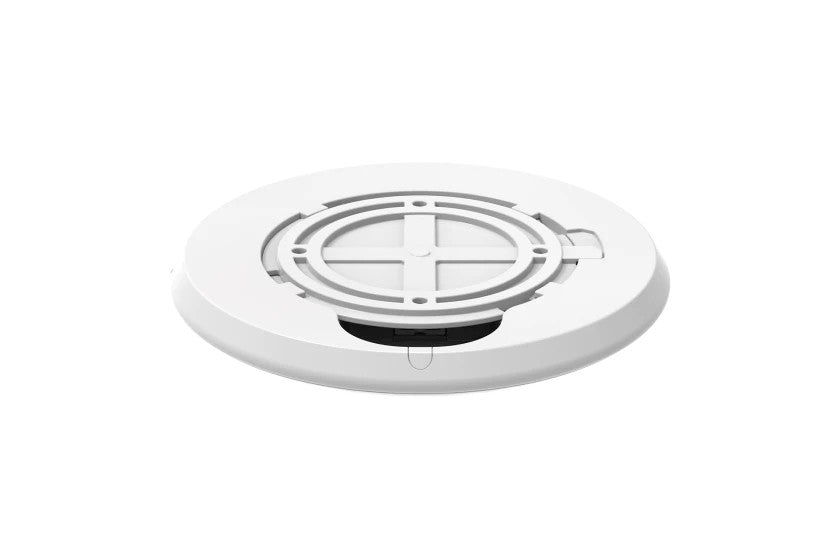

Teltonika TAP100 WI-FI Access Point
Teltonika TAP100 WI-FI Access Point
En rupture de stock
For a custom quote please email sales@ziestech.com
TAP100
-
Wireless mode
IEEE 802.11b/g/n (Wi-Fi 4)
-
WiFi security
WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, client separation
-
SSID/ESSID
SSID stealth mode and access control based on MAC address
-
Wireless Hotspot
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
-
WiFi users
Up to 100 simultaneous connections
ETHERNET-
Ethernet
1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK-
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH, DHCP client, SMNP
SECURITY-
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
-
VLAN
Tag based VLAN separation
MONITORING & MANAGEMENT-
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
-
FOTA
Firmware update from server, automatic notification
-
SSH
SSH (v1, v2)
-
SNMP
SNMP (v1, v2, v3), SNMP Trap
-
JSON-RPC
Management API over HTTP/HTTPS
-
RMS
Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS-
CPU
Mediatek, 580 MHz, MIPS 24Kc
-
RAM
64 MB, DDR2
-
FLASH storage
16 MB, SPI Flash
FIRMWARE / CONFIGURATION-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMIZATION-
Operating system
RutOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++
-
Development tools
SDK package with build environment provided
POWER-
Connector
RJ45 Socket
-
Input voltage range
44.0 – 57.0 V
-
PoE standards
802.3af PoE Class 1
-
Power consumption
< 2 W Max
PHYSICAL INTERFACES-
Ethernet
1 x RJ45 ports, 10/100 Mbps
-
Status LEDs
1 x Power LED (can be turned off from web-UI)
-
Antennas
2 x Internal for 2.4 GHz Wi-Fi
-
Reset
Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION-
Casing material
UV stabilized plastic
-
Dimensions
Ø 158 mm x 30 mm
-
Weight
190 g
-
Mounting options
AP Mounting Bracket (for ceiling mount)
-
