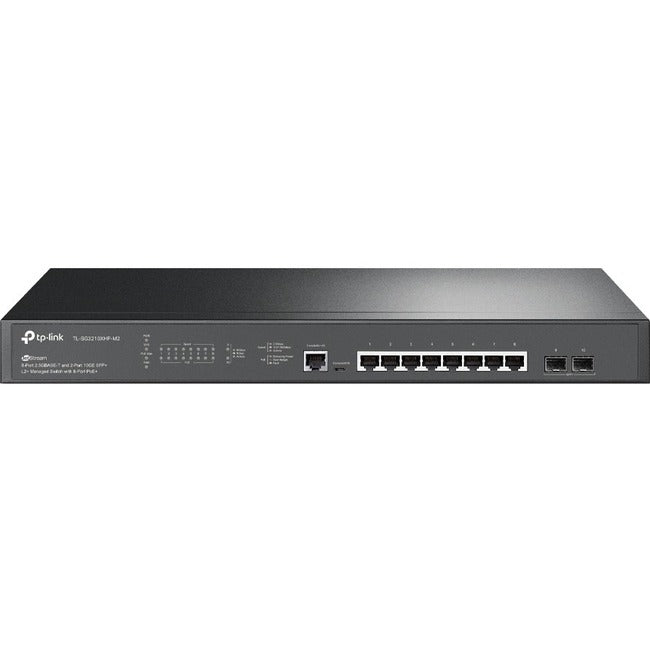

TP-Link JetStream TL-SG3210XHP-M2 Ethernet Switch* TL-SG3210XHP-M2

Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for a Complete Omada Network

• 2.5G PoE+ Portsfor WiFi 6

  8� 2.5 Gbps Ports Unlock the Full Potential of WiFi 6 APs

• 10G Lightning-Fast Uplink Connection

  2� 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

• PoE+ Output

  8 PoE+ Ports with Total 240 W Power Budget

• Centralized Cloud Management

  SDN Solutions Integration for a Highly Efficient Network

Centralized Cloud Management

SDN Solutions Integration for a Highly Efficient Network

Unlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports

Featuring 8� 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget and flexible installation to fit in various application scenarios.

Enterprise Switch with 10G Uplink

2� 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access

Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

• Hassle-Free Cloud or On-Premises Controllers

• Multi-Site Cloud Management

• Zero-Touch Provisioning (ZTP)

• Intelligent Monitoring

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

• Features 8 networking ports to easily establish a local network or expand your existing one
• Cascade to other network devices through the uplink port to expand your local area network
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
• Can work as layer 3 routing for scalable network design
• Management capability provides control over setup and configuration of your network
• The desktop installation makes it ideal for deployments outside the wiring closet

• Depth : 7.10" (180.34 mm)
• Width : 17.30" (439.42 mm)
• Product Line : JetStream
• Height : 1.70" (43.18 mm)
• Manufacturer Part Number : TL-SG3210XHP-M2
• Brand Name : TP-LINK
• Form Factor : Desktop
• Manufacturer : TP-LINK Technologies Co., Ltd
• Product Type : Ethernet Switch
• Limited Warranty : Lifetime
• Product Model : TL-SG3210XHP-M2
• Product Name : JetStream TL-SG3210XHP-M2 Ethernet Switch*
• Country of Origin : China
