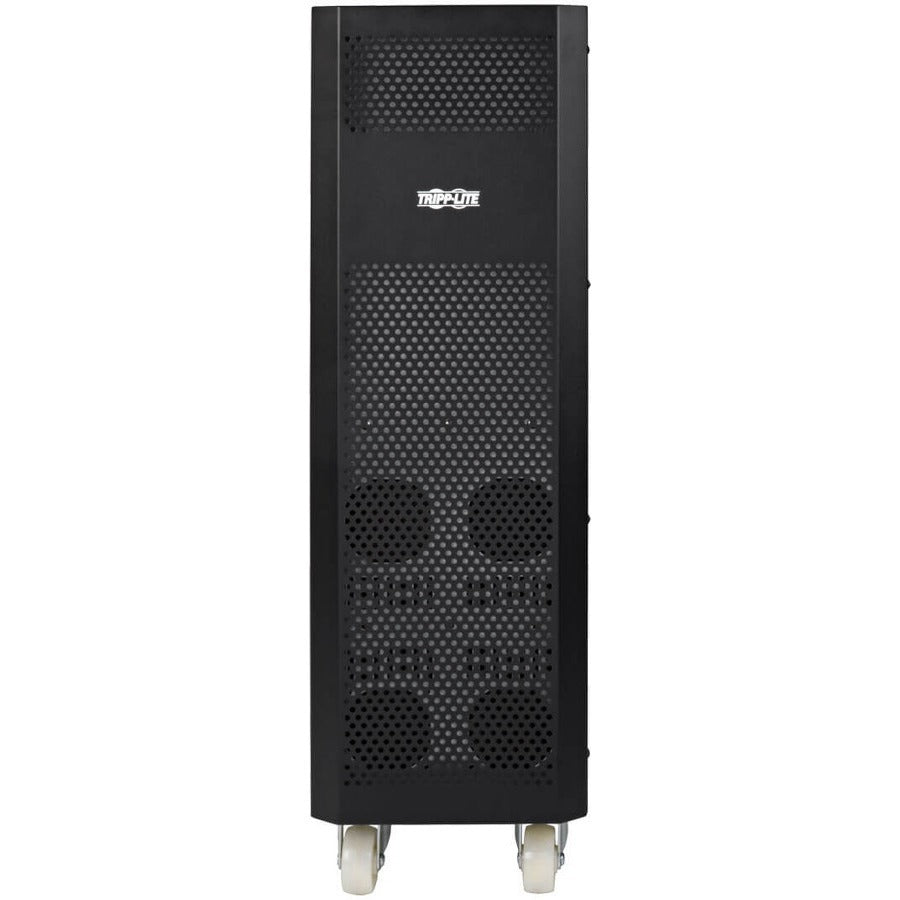

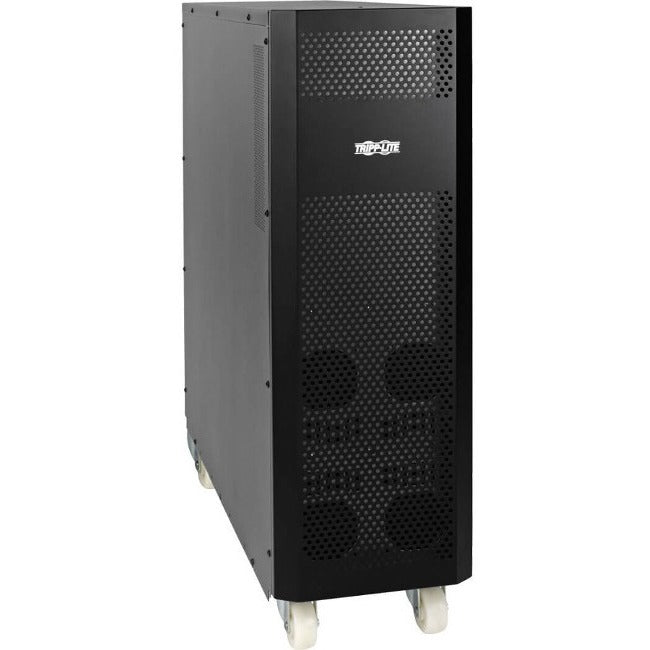

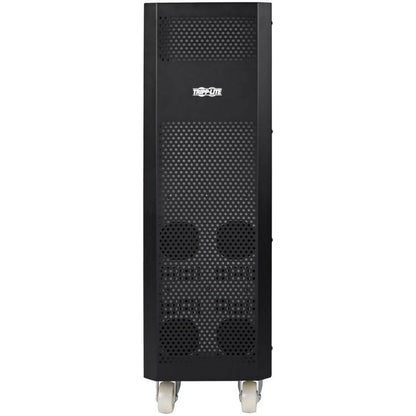

Tripp Lite's BP480V10-NIB External Battery Cabinet Does Not include batteries. However, the cabinet is designed for 80 9Ah or 80 10Ah batteries. This cabinet offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Includes internal disconnect for battery isolation.
Compatible UPS Systems: S3M30KX when using 80 9Ah, and with S3M40KX when using 80 10Ah batteries. The external battery cabinet battery Ah capacity must match the internal UPS battery Ah capacity.
Features
+/-240VDC Backup Battery Pack - You Provide the Batteries
This special configuration includes the steel enclosure and all required internal wiring and accessories for a quantity of 80 user-supplied 9Ah or 10Ah internal batteries (batteries not included). With 9Ah batteries installed, the UPS battery pack cabinet is compatible with Tripp Lite's 3-phase S3M30KX UPS system. With 10Ah batteries, it's compatible with the S3M40KX. For the same battery pack with internal batteries included, see Tripp Lite's BP480V09 (9Ah) or BP480V10 (10Ah).
Gives Your Compatible UPS System Extended Runtime

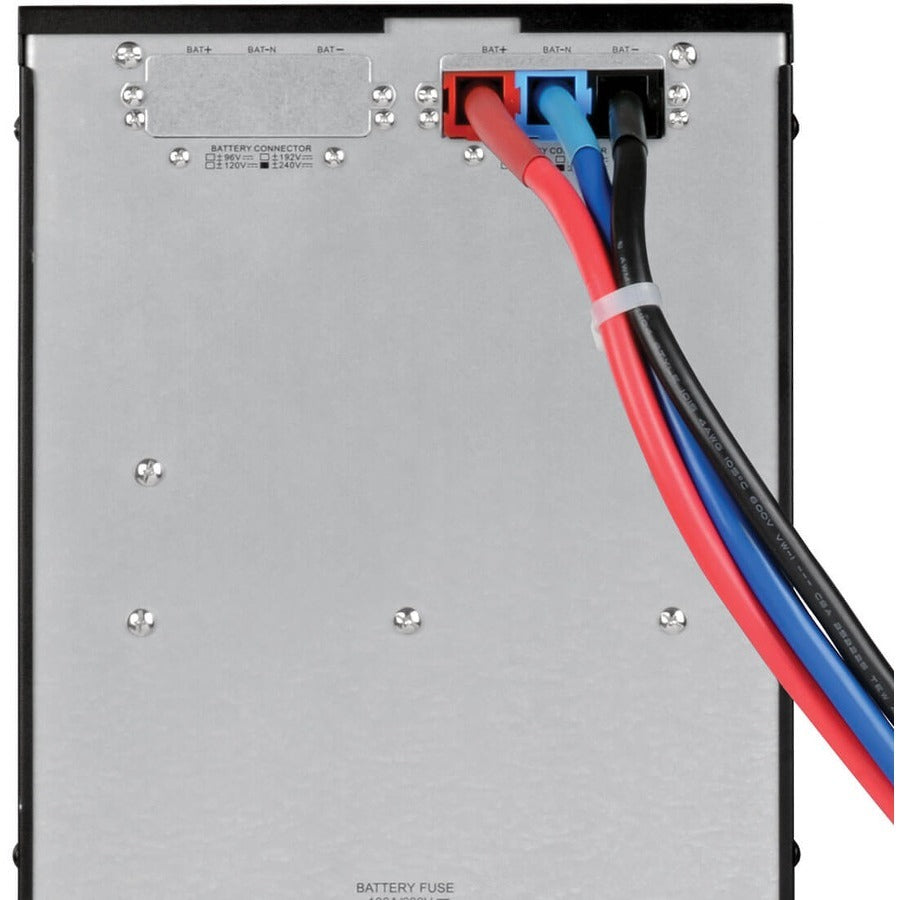

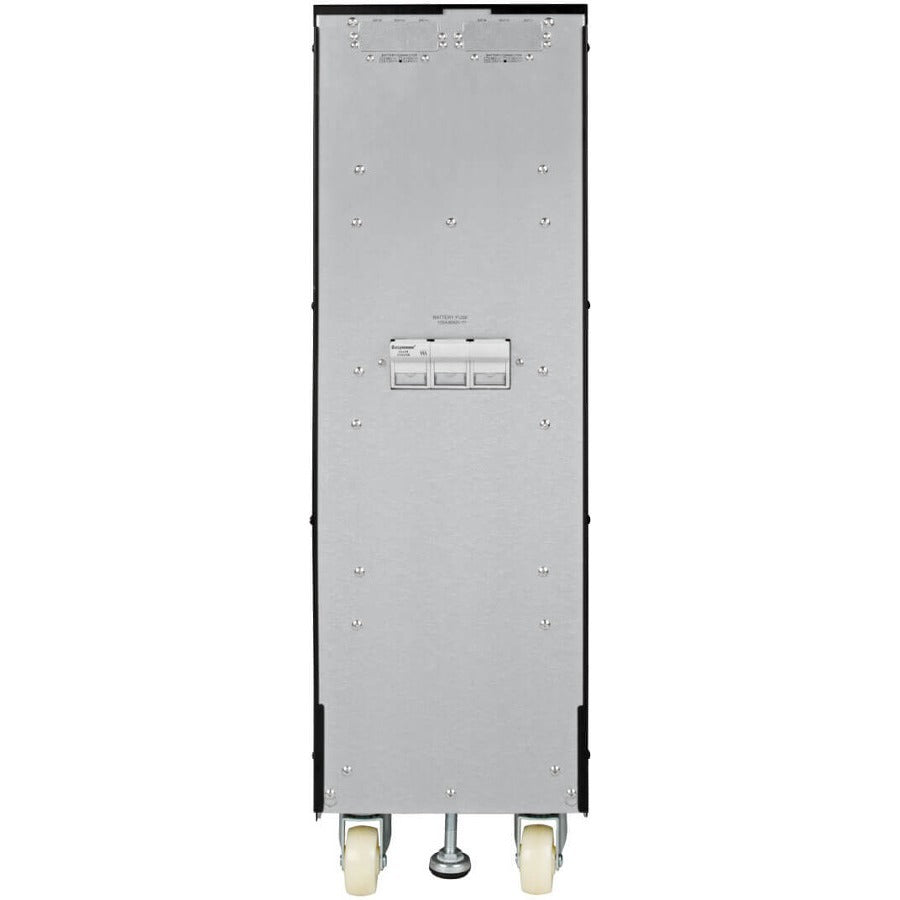

After you buy and install your own batteries, the BP480V10-NIB not only provides extended runtime, but it can also be daisy-chained to as many as seven additional external battery packs for even longer extended-run operation. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V10-NIB is backed by a one-year warranty, ensuring reliability and performance.
