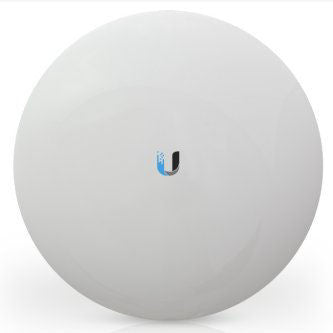

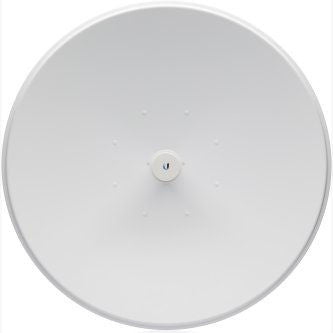

Ubiquiti 5GHz Powerbeam AC, 620mm PBE-5AC-620-US
Ubiquiti 5GHz Powerbeam AC, 620mm PBE-5AC-620-US
Stock bas : 21 restant(s)
For a custom quote please email sales@ziestech.com
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.
Features:
- Highly Efficient Antenna Beam Performance
- Custom Ubiquiti® airMAX® ac Processor
- Up to 450+ Mbps Real TCP/IP Throughput
- Innovative Snap and Lock Assembly
- Proprietary InnerFeed™ Technology
| Mechanical | |
|---|---|
| Dimensions | 620 x 620 x 386 mm (24.41 x 24.41 x 15.2") |
| Weight | 6.4 kg (14.11 lbs) |
| Enclosure Material | Outdoor UV-Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | Radome Excluded: 1510 N at 200 km/h (340 lbf at 125 mph) Radome Included: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20-26VDC |
| Gain | 29 dBi |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.6:1 |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual Linear |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| Operating Frequency Mhz | |
| Worldwide | 5150 - 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
