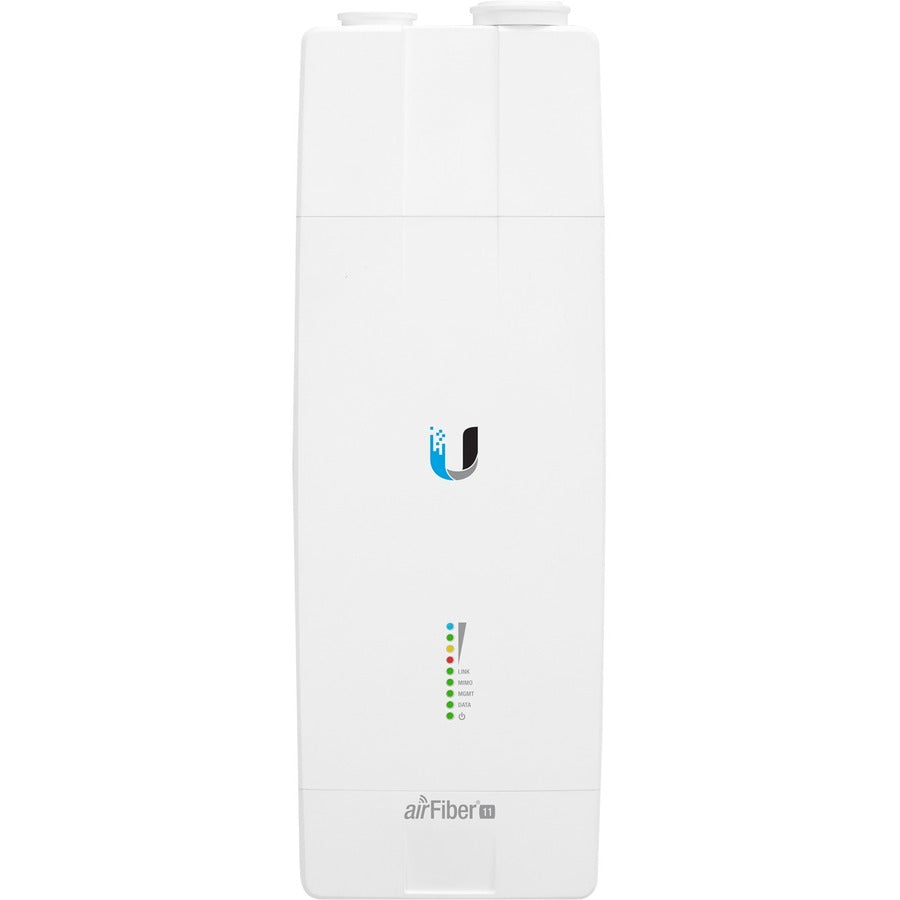

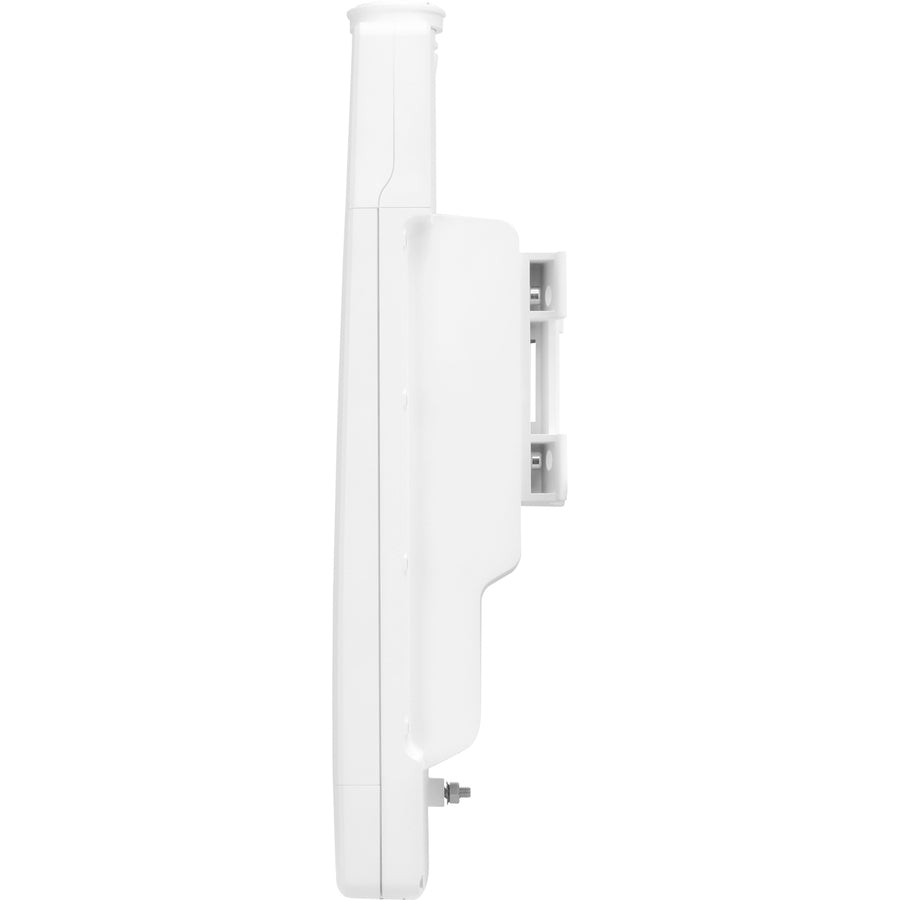

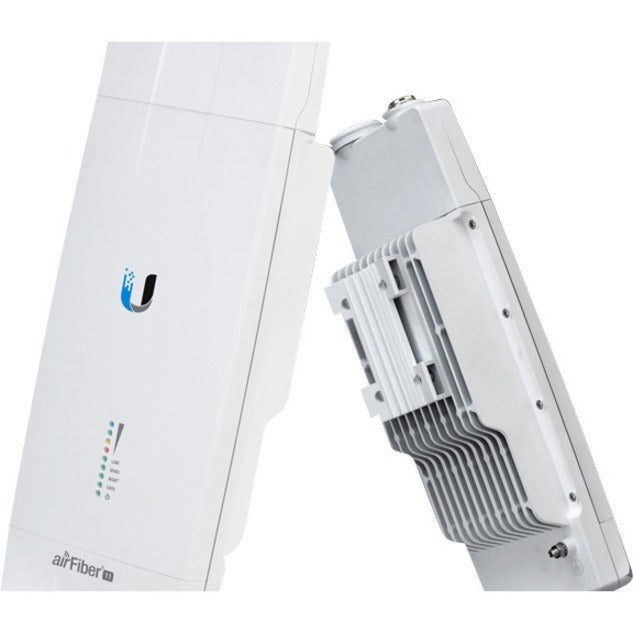

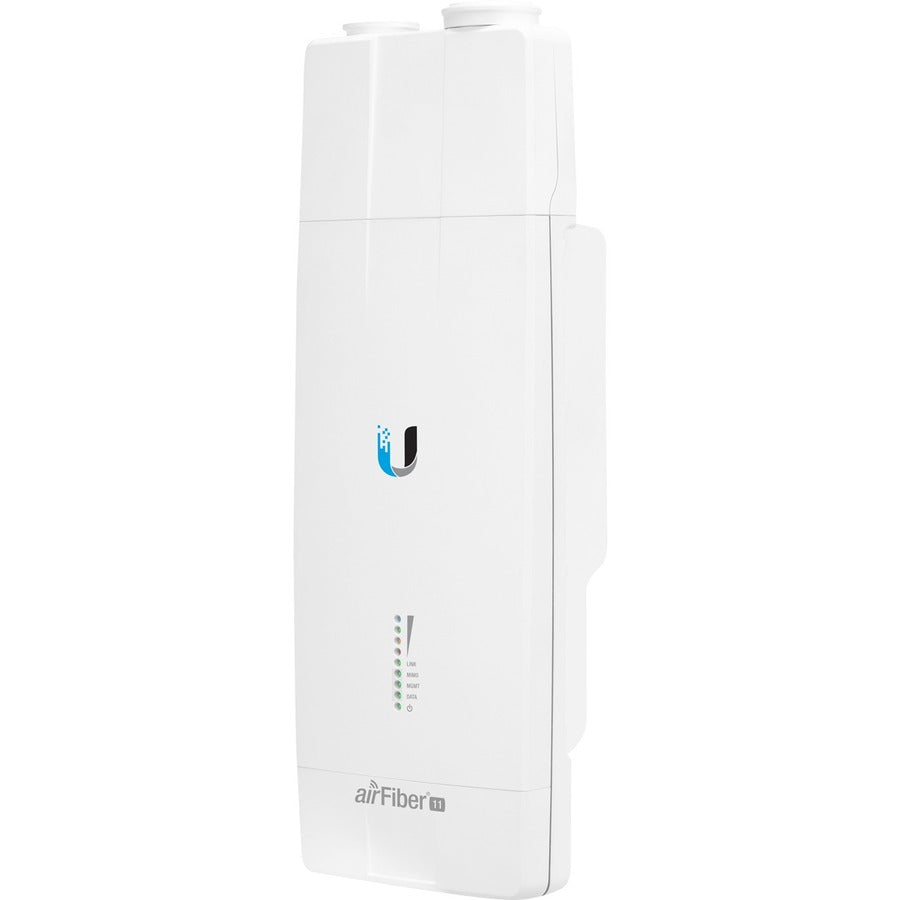

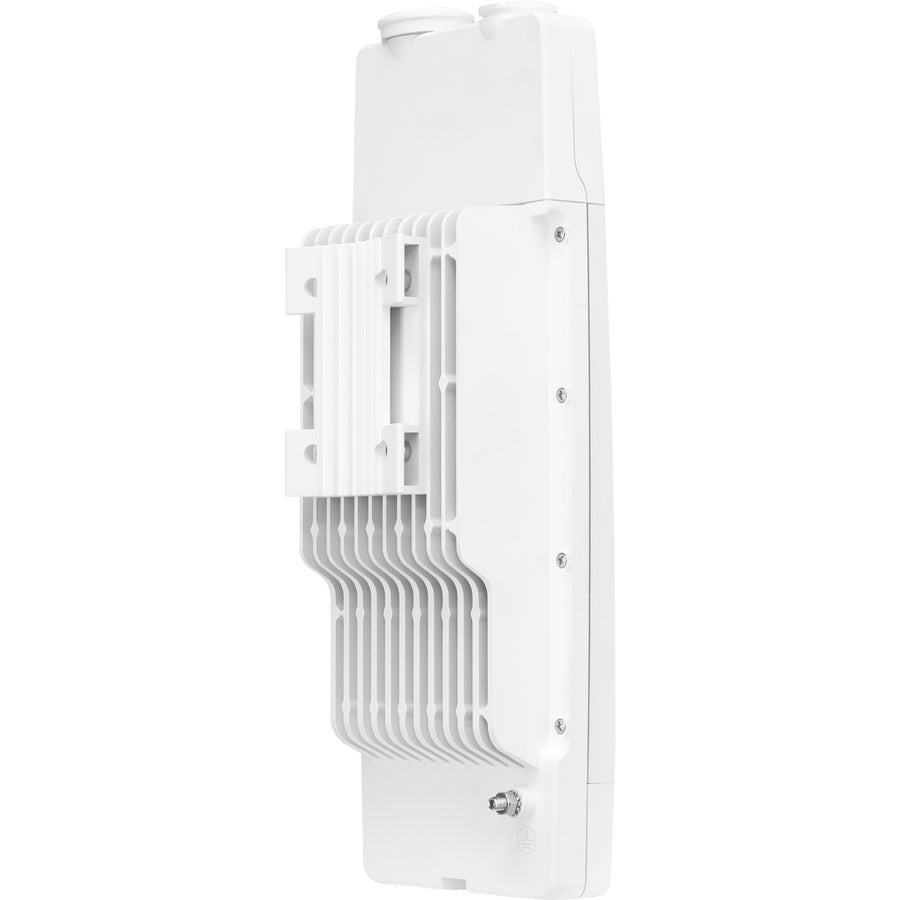

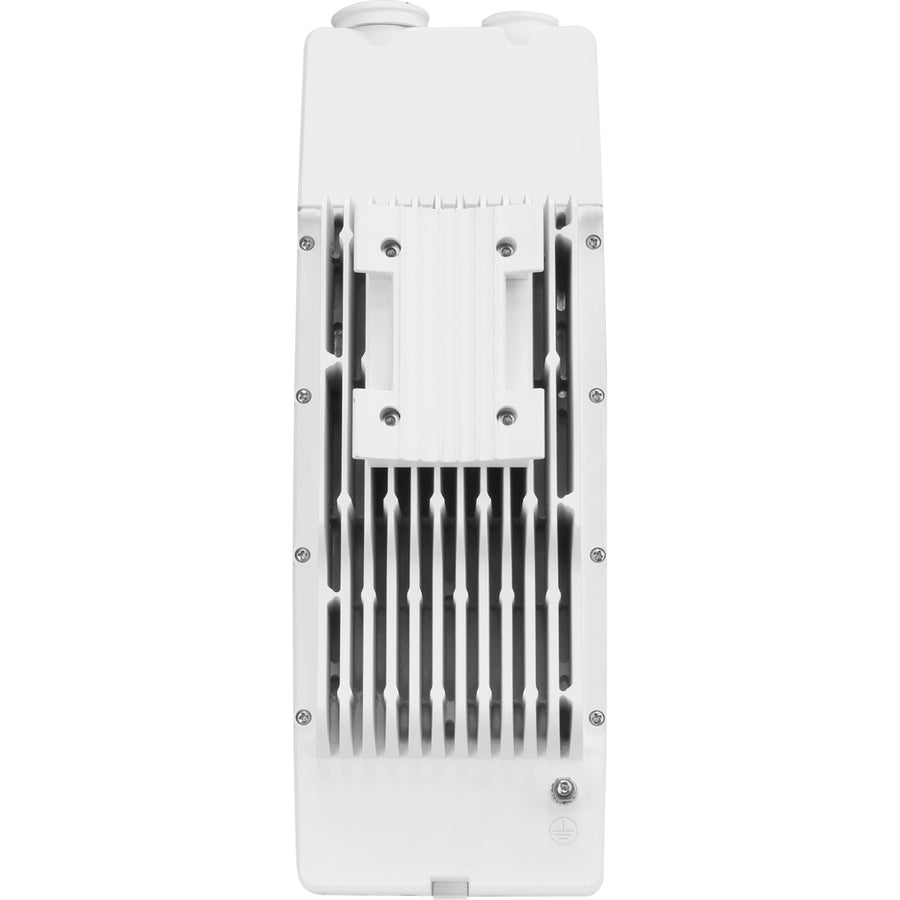

Ubiquiti continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing, by introducing the airFiber® AF-11, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.
The AF-11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity.
For maximum flexibility, the airFiber AF-11 works with the Ubiquiti® AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).
Groundbreaking Design
The AF-11 gives exceptional performance compared to other 11 GHz radios in its price range. Unlike other products that use adaptations of Wi-Fi-based designs, the AF-11 is specially engineered for the 11 GHz band, with a custom modem and radio design optimized for the efficient transport of data.
Product Advantages
True Full-Duplex Design
The AF-11 offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band.
Ultra-Low LatencyOverall customer experience and system capacity are enhanced with FDD performance.
Enhanced Robustness
The AF-11 uses managed licensed frequencies to create a robust, interference-free link that provides the maximum possible throughput.
Extended Range The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
Channel Configuration
Optimized Channels
The airFiber AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11 also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
Reconfigurable Duplexers
The AF-11 features a unique modular duplexer design to suit multiple frequency configurations.
Each AF-11 radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high-band or low-band use in the 10.7 - 11.7 GHz allocation.
Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.
Highest Performance Value
The compact AF-11 supports high-order constellations - up to 1024QAM - allowing it to deliver the greatest spectral efficiency in its class.
Advanced Engineering

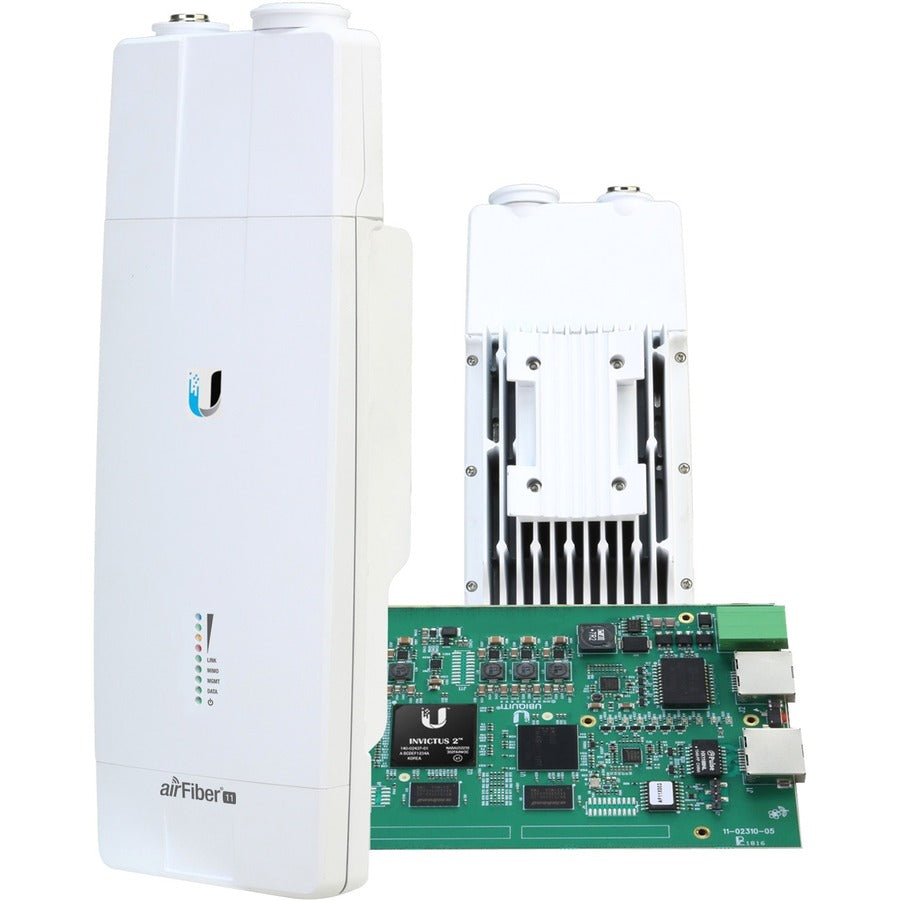

Ubiquiti's INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
Deployment Flexibility
The airFiber AF-11 provides a number of deployment options including:

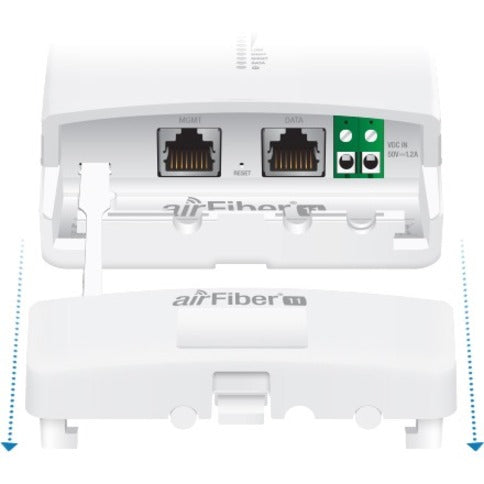

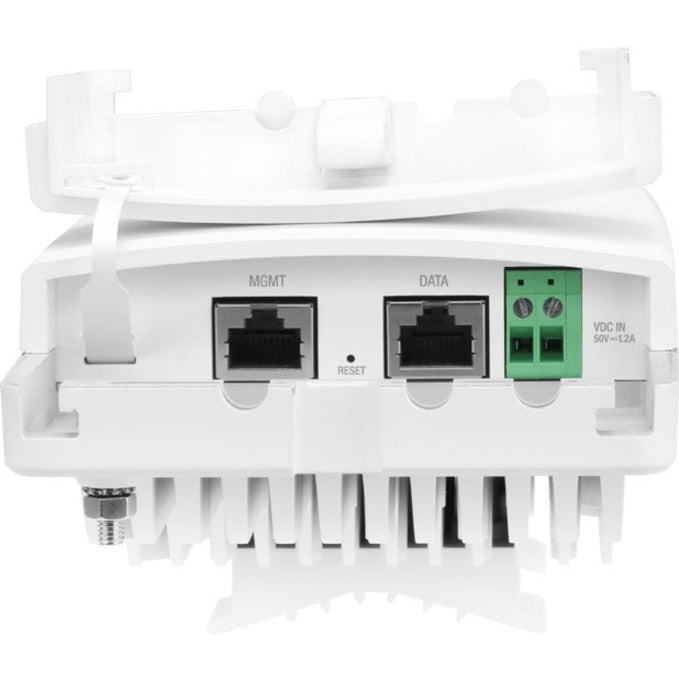

Power Source Options
Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.
- PoE power can be supplied on the DATA port, using the provided PoE adapter.
- DC power can be supplied using the terminal block.

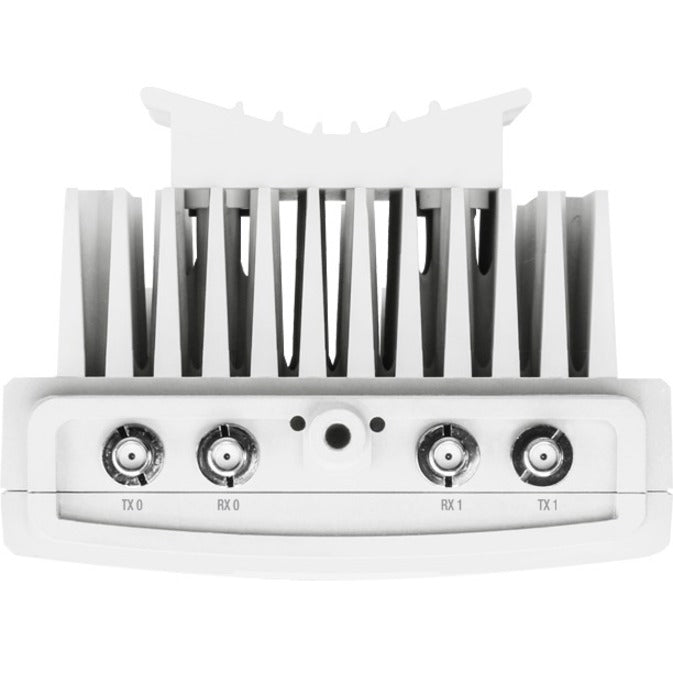

Versatile, Ruggedized N-Type Connectors
N-connectors allow the AF-11 to be used with either the Ubiquiti AF-11G35 antenna or a variety of commonly available antennas.
Specially designed silicone boots provide a weatherproof barrier against dust and moisture.
- Full-Duplex, Point-to-Point Radio
- 11 GHz Frequency Operation
- Up to 1.2+ Gbps Throughput
- Manufacturer : Ubiquiti Networks, Inc
- Product Type : Radio Modem
- Limited Warranty : 2 Year
- Product Model : AF-11
- Package Contents :
- Licensed Backhaul Radio
- 50VDC, 1.2A PoE Gigabit Adapter
- Pole Mount
- Product Line : airFiber
- Manufacturer Website Address : http://www.ubnt.com
