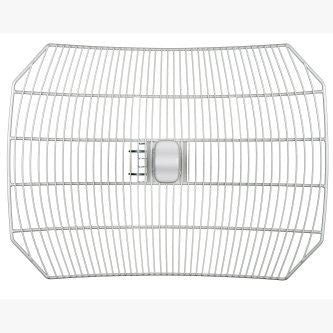

Ubiquiti UISP airFiber 2.4 GHz Radio AF-2X-US
Ubiquiti UISP airFiber 2.4 GHz Radio AF-2X-US
En rupture de stock
For a custom quote please email sales@ziestech.com
Create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul.
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.
Features:
- 2x2 dual-polarity performance
- Compatible with the airFiber® X antenna
- Powered with the included 24V, 1A PoE Gigabit adapter
- (1) 10/100 Ethernet port
- (1) 10/100/1000 Ethernet port
- 687 Mbps maximum throughput
- 17W maximum power consumption
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
| Weight | 0.35 kg (0.77 lb) |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) |
| Hardware | |
| Processor | INVICTUS IC |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| GPS | External, Magnetic Base |
| Operating Frequency | 2.4GHz |
| Power Supply | 24V, 1A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Maximum Power Consumption | 17W @ Max. Power/Duty Cycle |
| Supported Voltage Range | 19-29VDC |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| Operating System | airOS |
| Maximum Throughput | 525 Mbps |
| Maximum Range | 200+ km |
| Encryption | 128-bit AES |
| Radio Frequency | |
| Max TX Power | 30 dBm (Dependent on Regulatory Region) |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth* | 3.5/5/7/10/14/20/28/30/40/50/56 MHz *Selectable Programmable Uplink and Downlink Duty Cycles Independently Programmable TX and RX Frequencies |
