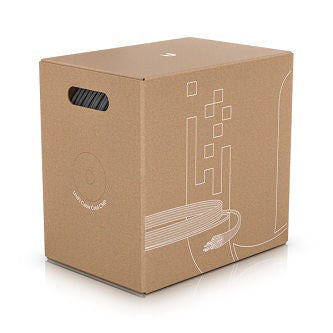

Ubiquiti UniFi Cable Cat6 CMP - U-CABLE-C6-CMP
Ubiquiti UniFi Cable Cat6 CMP - U-CABLE-C6-CMP
55 en stock
For a custom quote please email sales@ziestech.com
Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling
The U-Cable-C6-CMP is a Category 6 UTP cable that supports speeds up to 1Gbps with its 23 AWG solid copper, twisted pair conductor. The conductor's small diameter, combined with the cable's anti-crosstalk divider, isolates and protects signals from interference. The U-Cable-C6 is also a CMP cable with a fire-resistant jacket that ensures full fire prevention, which is especially critical in plenum spaces where air is circulated to facilitate building HVAC. Category 6 Ethernet connectors are recommended to accommodate the conductor's size and optimize its performance.
Features:
- Category 6 Unshielded Twisted Pair (UTP) cable
- Communications Multipurpose Cable, Plenum (CMP)-rated, fire-resistant jacket
- 1,000 ft (305 m)
- 23 AWG solid copper conductor pair
- Anti-crosstalk divider
- For 1000BASE-T Ethernet applications
| Mechanical | |
|---|---|
| Box Dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box Weight | 14.75 kg (32.52 lb) |
| Cable Length | 305 m (1000 ft) |
| Cable Color | White |
| Cable Type | Category 6 |
| Shielding Type | UTP |
| Flame Rating | CMP |
| Conductor Wire Gauge | 23 AWG |
| Conductor Type | Solid Bare Copper |
| Jacket Material | Low Smoke Flame Retardant PVC |
| Jacket Diameter | 5.6 ± 0.2 mm |
| Bend Radius | Min. 22.4 mm |
| Pulling Tension | Max. 110 N |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Temperature | -20 to 60°C (-4 to 60°F) |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Data Rate | 10/100/1000 Base-T |
| Reference Bandwith | Up to 600 MHz |
| Standards | Electrical Transmission: ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame Test: NFPA 262 (CMP) Material and Construction: UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
