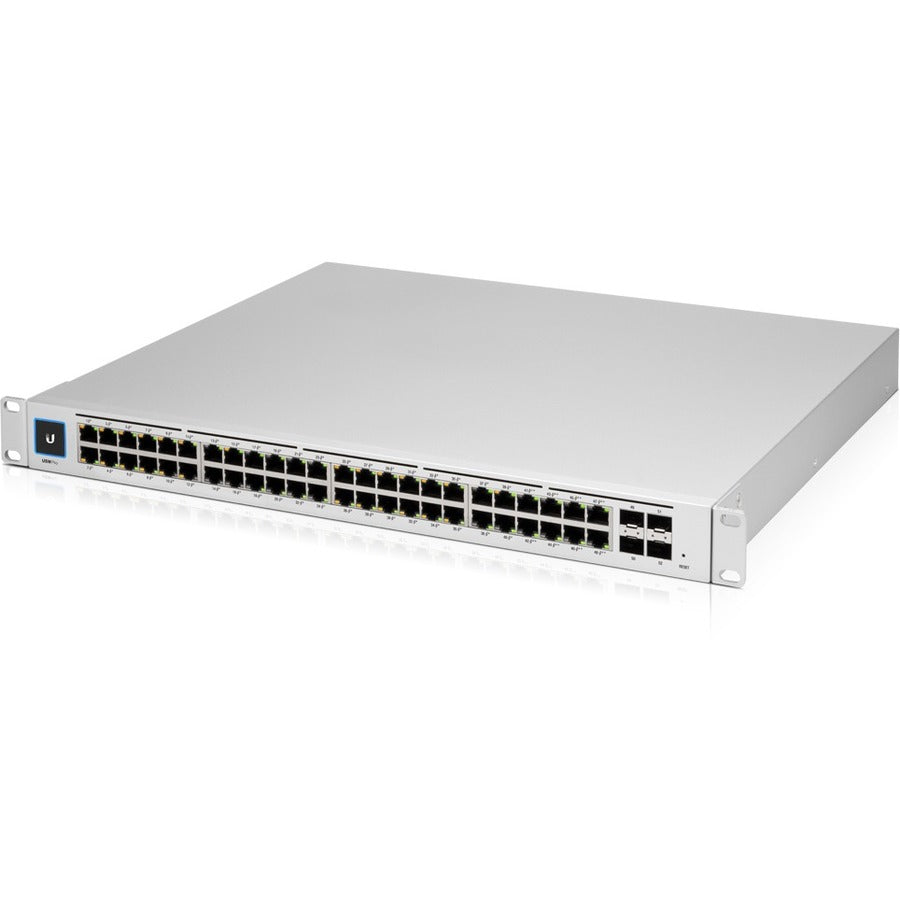

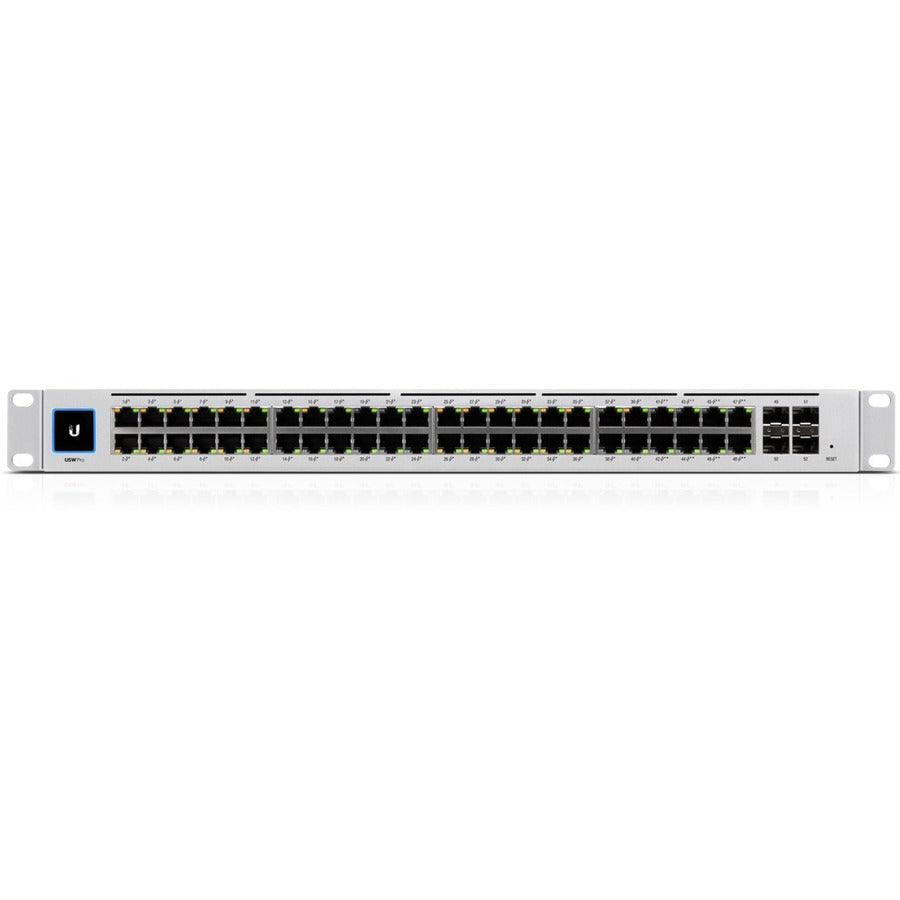

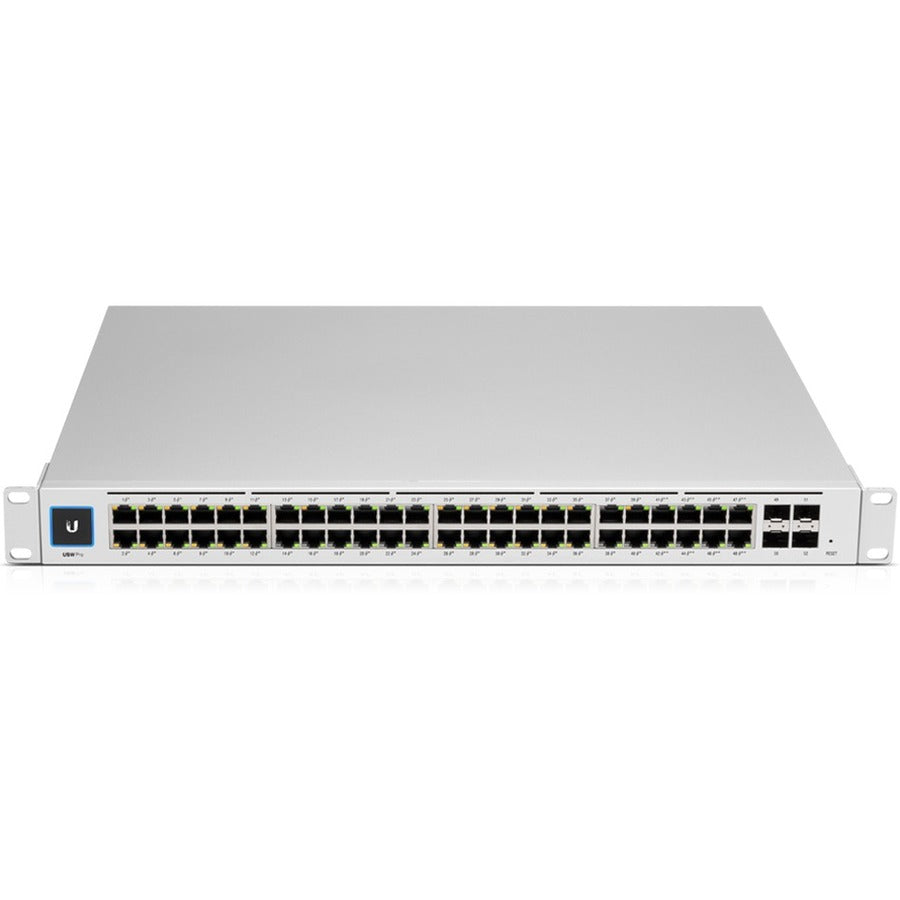

Ubiquiti USW-PRO-48-POE Layer 3 Switch USW-PRO-48-POE

Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:

• USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
• USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports

Layer 3 Features

In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.

Near-Silent Cooling

The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.

Fiber Connectivity

SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

802.3bt PoE++

PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.

Redundant Power Option

The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.

• Auto-Sensing IEEE 802.3af/at/bt PoE
• SFP+ Ports for 10G Links
• Integrated Fans for Near-Silent Cooling

• Power Source : Power Supply
• Package Contents :
  • USW-PRO-48-POE Layer 3 Switch
  • Rack Mount Hardware
• Expansion Slot Type : SFP+
• Manufacturer Website Address : http://www.ubnt.com
• Compatible Rack Unit : 1U
• Modular : Yes
• Total Number of Network Ports : 48
• Manageable : Yes
• Layer Supported : 3
• Environmentally Friendly : Yes
• Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Uplink
• Number of Total Expansion Slots : 4
• Uplink Port : Yes
• Network Technology : 10GBase-X
• Media Type Supported : Twisted Pair
• Environmental Certification : WEEE
• Redundant Power Supply Supported : Yes
• Number of SFP+ Slots : 4
• Form Factor : Rack-mountable
• Manufacturer : Ubiquiti Networks, Inc
• Product Type : Layer 3 Switch
• Limited Warranty : 1 Year
• Ethernet Technology : 10 Gigabit Ethernet
• Product Model : USW-PRO-48-POE
