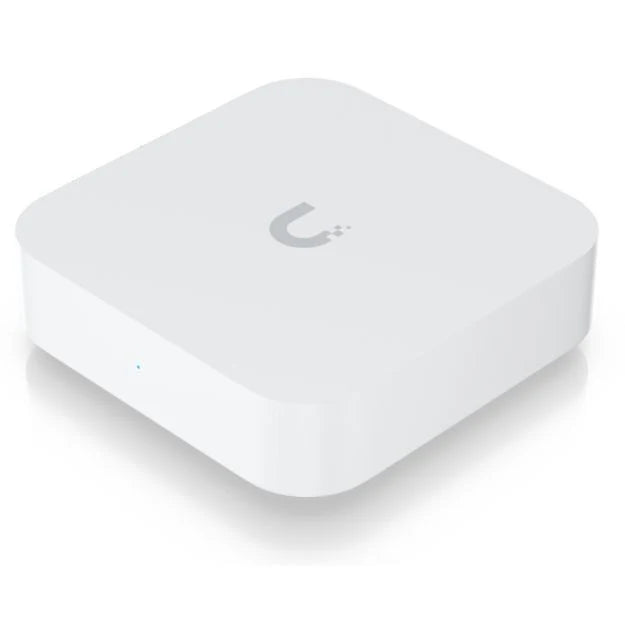

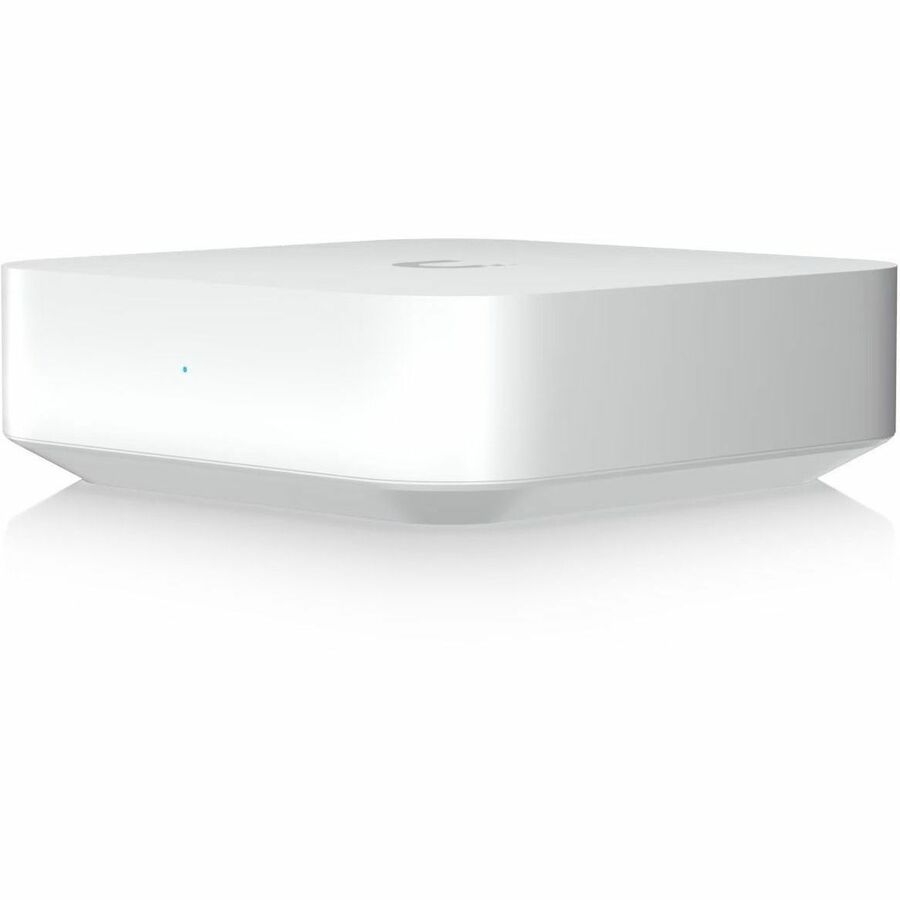

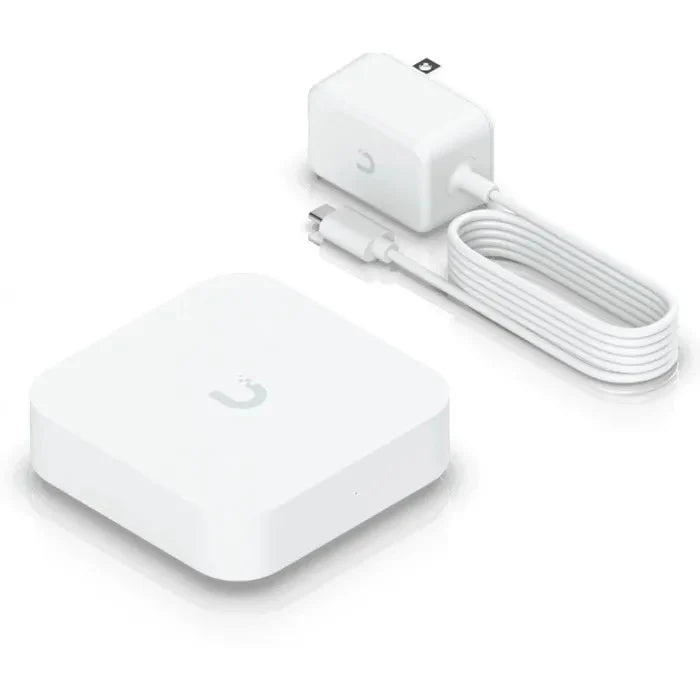

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
Technical Specifications
Mechanical
Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
Weight
320 g (11.3 oz)
Enclosure materials
Polycarbonate
Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory information
1 GB DDR3L
Management interface
Ethernet Bluetooth 5.1
Networking interface

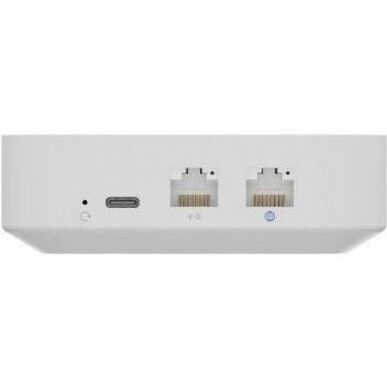

(1) GbE RJ45 WAN port (1) GbE RJ45 LAN port
Power method
USB type C (5V/3A)
Supported voltage range
100–240V
Max. power consumption
3.83W
Operating temperature
-10 to 40° C (14 to 104° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security
Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking
License-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IPv6 ISP support
*When paired with a Cloud Key or Official UniFi Hosting. **When paired with a Cloud Key.
