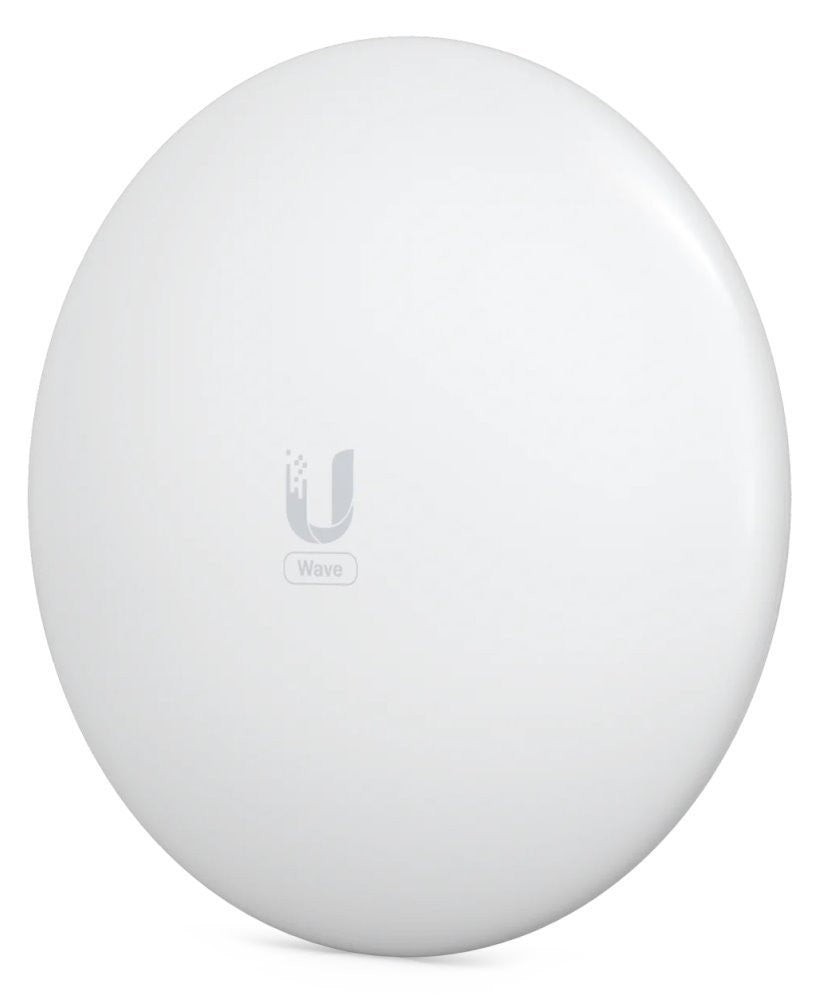

Ubiquiti Wave Long Range 8km - WAVE-LR
Ubiquiti Wave Long Range 8km - WAVE-LR
Stock bas : 12 restant(s)
For a custom quote please email sales@ziestech.com
Compatibility and supported distances:
— Wave AP - 8 km link range
— Wave AP Micro - 6 km link range
2 Gbps max. throughput (1 Gbps duplex)
5 GHz 800+ Mbps weather-resilient backup radio
(1) GbE RJ45 port
Precision alignment mount
Integrated GPS & Bluetooth
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight | Without mount: 2.59 kg (5.7 lb) With mount: 3.79 kg (8.4 lb) |
| Enclosure material | UV stabilized plastic |
| Mount material | Stainless steel |
| Pole mount diameter | 25 to 76.2 mm (1 to 3") on pipe outer diameter |
| Wind loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual ARM® Cortex®-A53 cores at 1 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 18W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP station |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router mode |
| Management application | UISP: Version 1.4.5 and later |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Maximum range | 8+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 46 dBi |
| Azimuth and elevation beamwidth | 3 dB: 0.8° 6 dB: 1.1° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 22 dBi |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Azimuth and elevation beamwidth | 3 dB: 8 to 10° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links | White: 5GHz link Blue: 60GHz link |
