CyberPower Metered PDU30MVHVT20F 20-Outlets PDU PDU30MVHVT20F

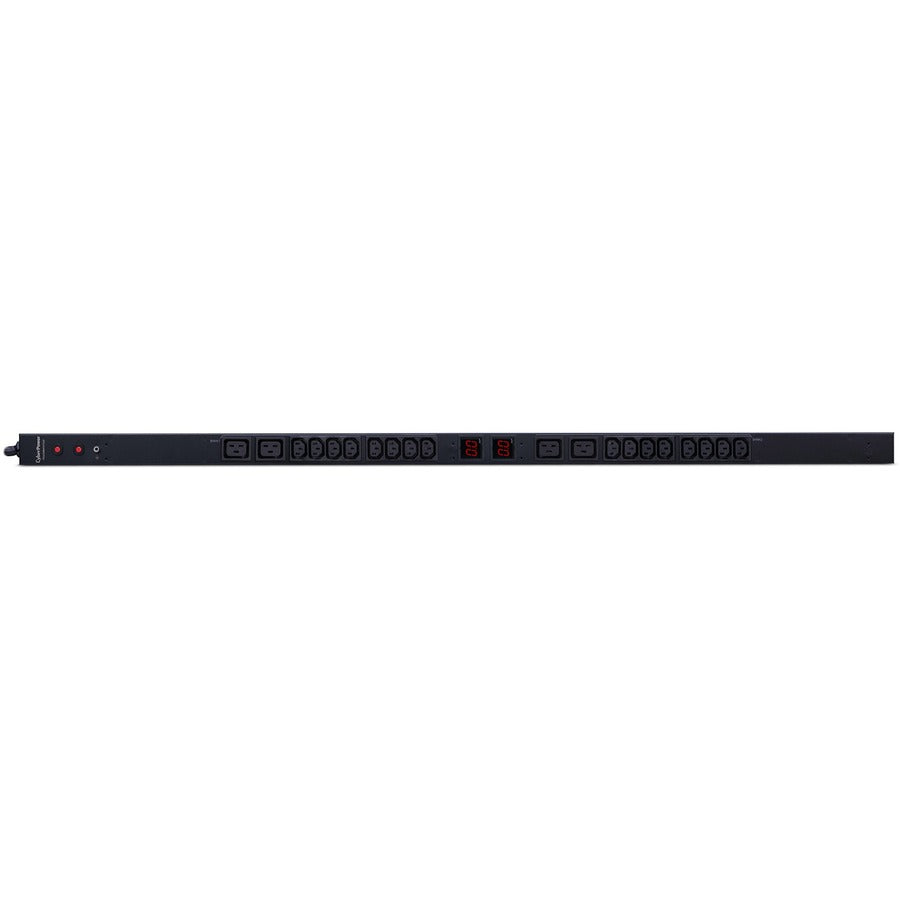

The CyberPower 20-outlet (20 Front) 0U vertical rack mount metered power distribution unit (PDU30MVHVT20F) provides 200/230V 30A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

• 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
• 200/230V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
• 20 IEC-320 (4-C19 and 16-C13) output receptacles
• Metered PDU

• Energy Star : No
• Product Series : Metered PDU
• Input Voltage : 230 V AC
• Protection Type : Overload Protection
• Mount Type : Rack-mountable
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 230 V AC
• Mounting Orientation : Vertical
• Environmentally Friendly : Yes
• Plug/Connector Type : NEMA L6-30P
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Receptacle Type : IEC 60320 C13
• Limited Warranty : Lifetime
• Receptacle Detail : 16 x IEC 60320 C13
• Product Model : PDU30MVHVT20F
• Length : 2.25" (57.15 mm)
