CyberPower PDU20SW10ATNET Switched ATS PDU 120V 20A 1U 10-Outlets (2) 5-20P PDU20SW10ATNET

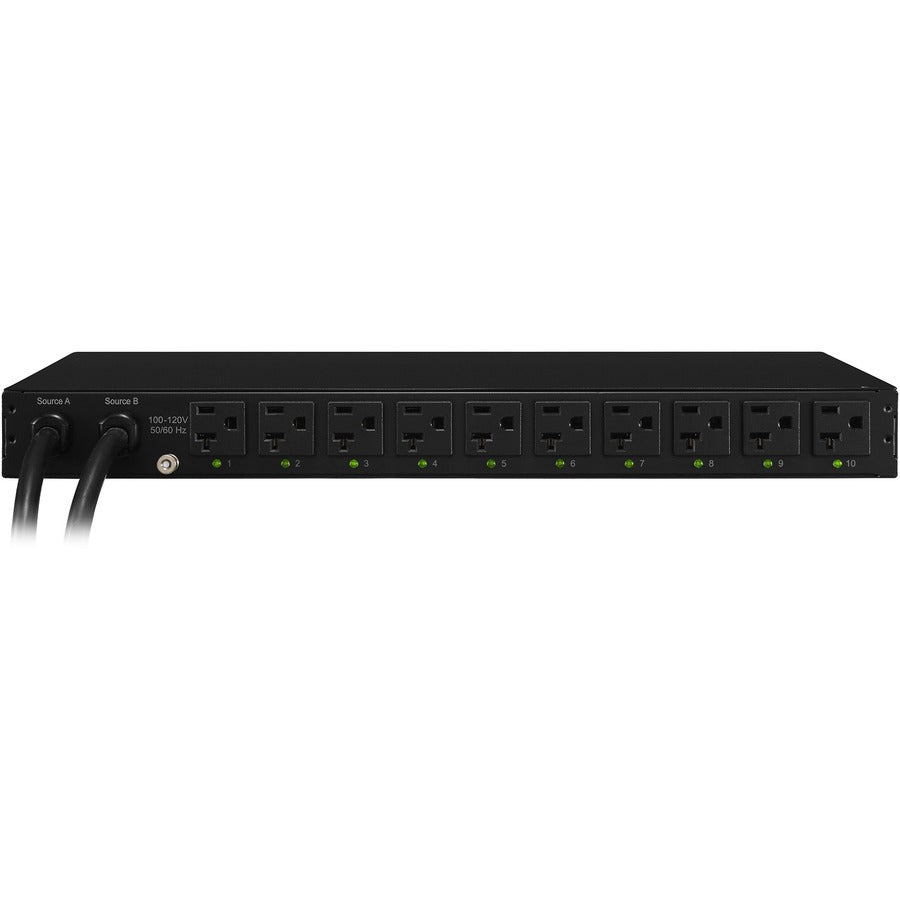

The CyberPower PDU20SW10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 100-120V / 20A output. The PDU distributes power to 10 NEMA 5-20R receptacles from redundant NEMA 5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

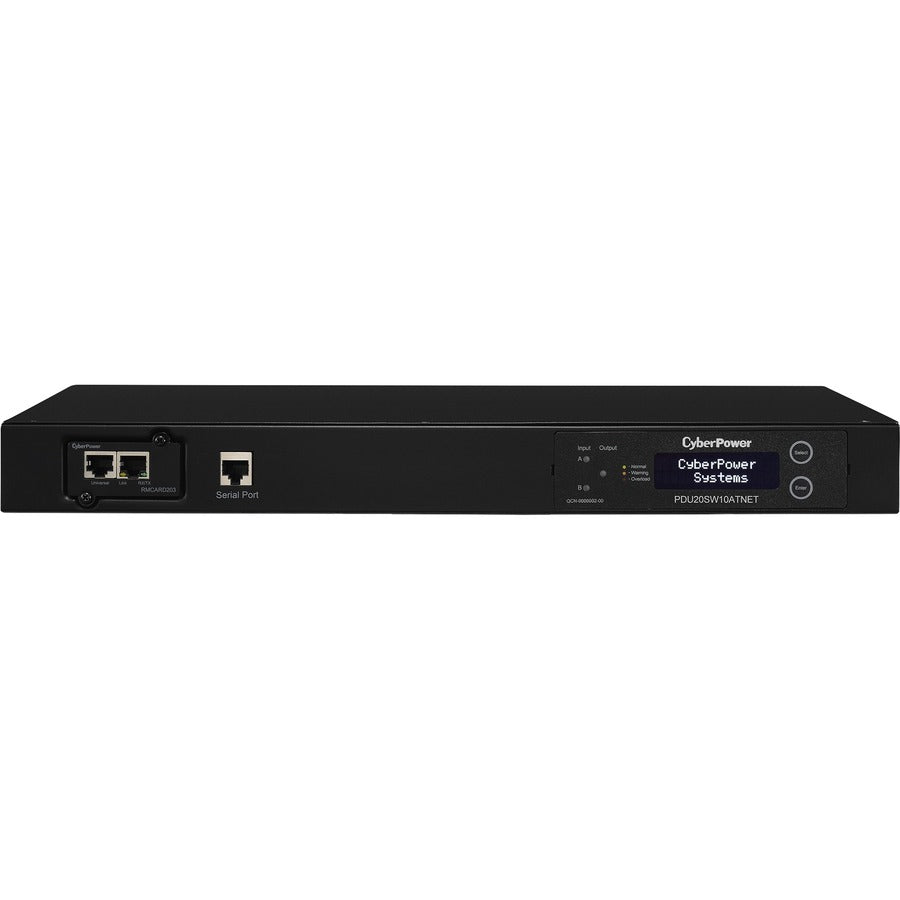

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

• 120V 20A Switched ATS PDU with 10 NEMA 5-20R outlets and dual NEMA 5-20P 20A 120V input connections
• Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU
• 1U Rugged, industrial-grade metal housing

• 1U Rugged, industrial-grade metal housing.
• SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
• 120V 20A Switched ATS PDU with 10 NEMA 5-20R outlets and dual NEMA 5-20P 20A 120V input connections
