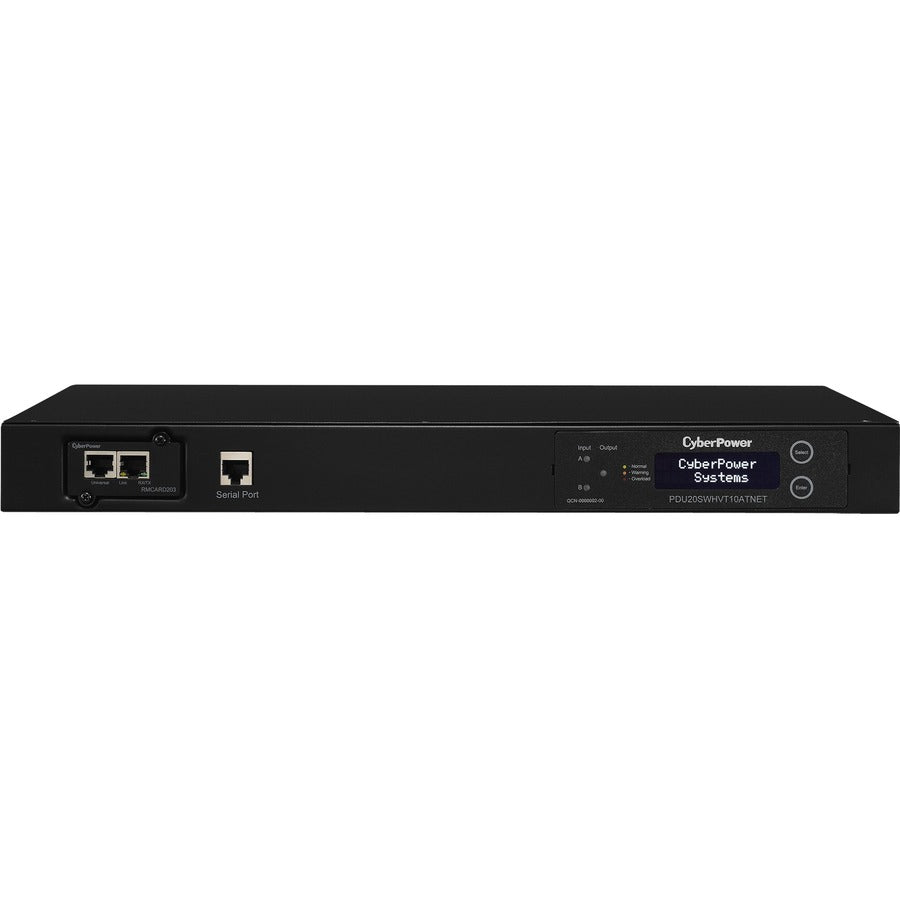

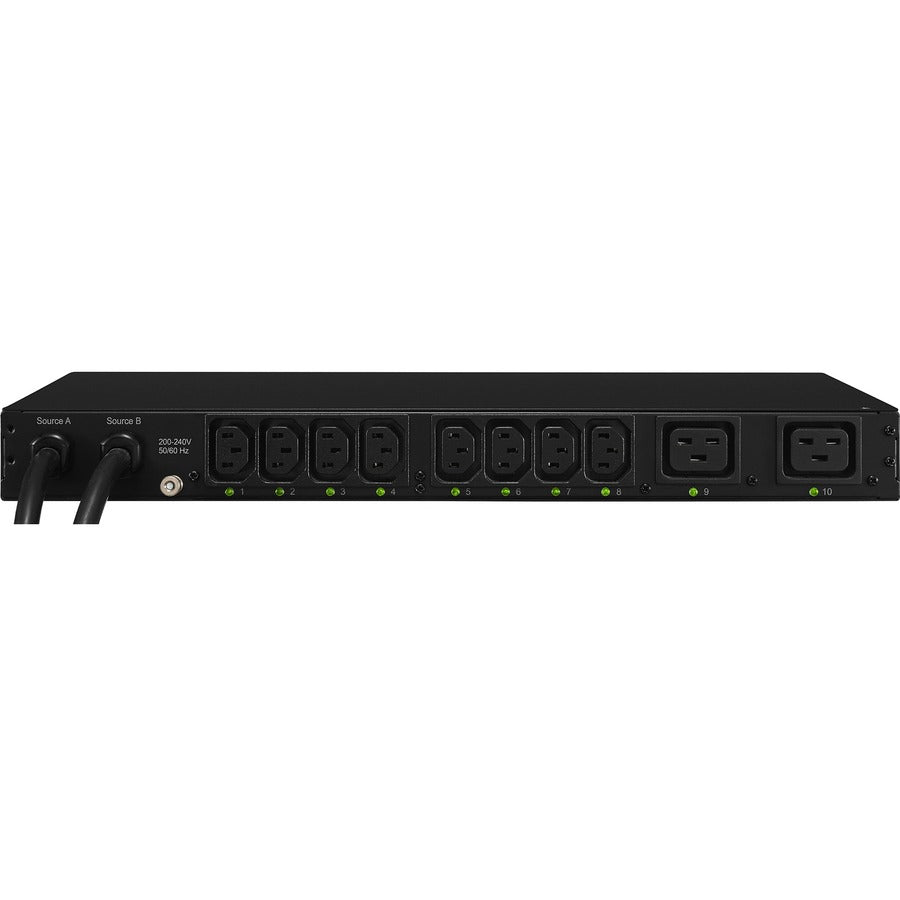

CyberPower PDU20SWHVT10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P PDU20SWHVT10ATNET

The CyberPower PDU20SWHVT10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

• 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets, 2 IEC-320 C19 outlets and dual NEMA L6-20P 20A high-voltage input connections
• Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU

• SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
• 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets, 2 IEC-320 C19 outlets and dual NEMA L6-20P 20A high-voltage input connections
