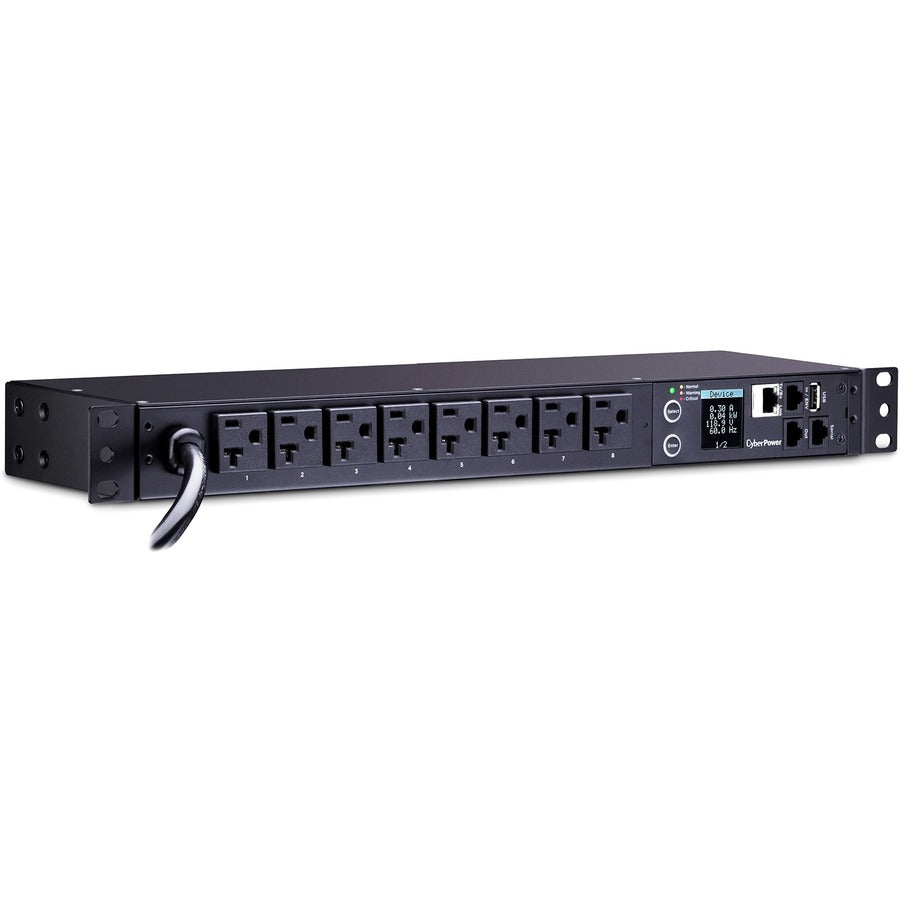

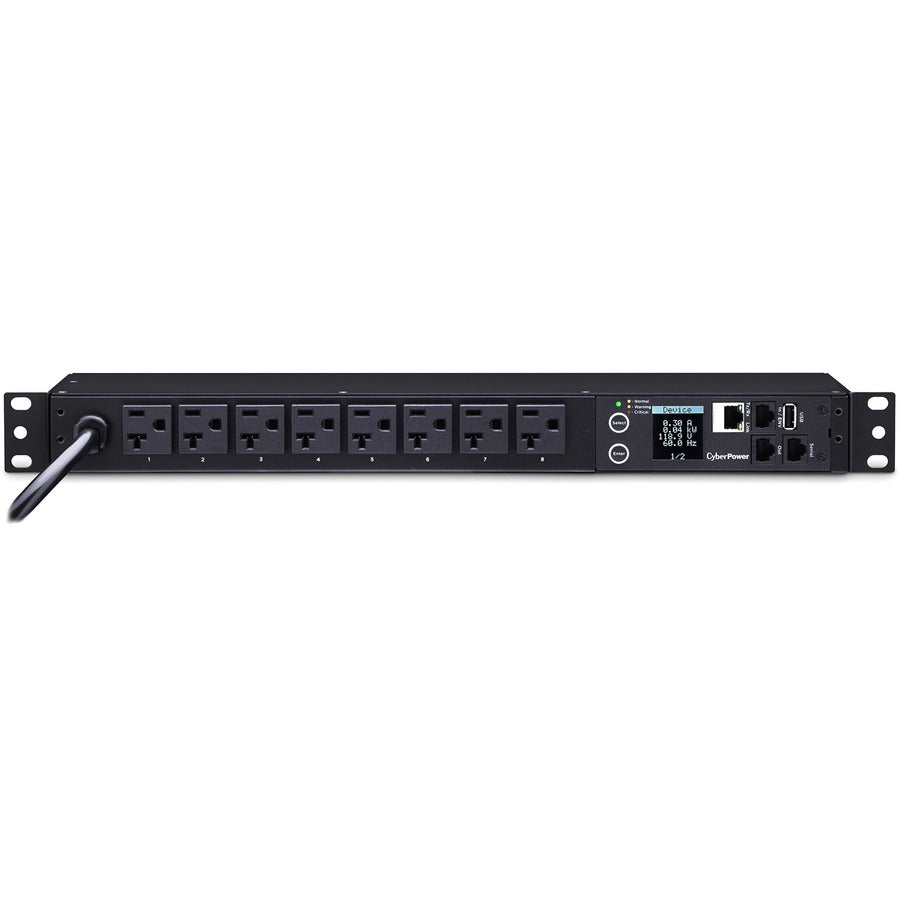

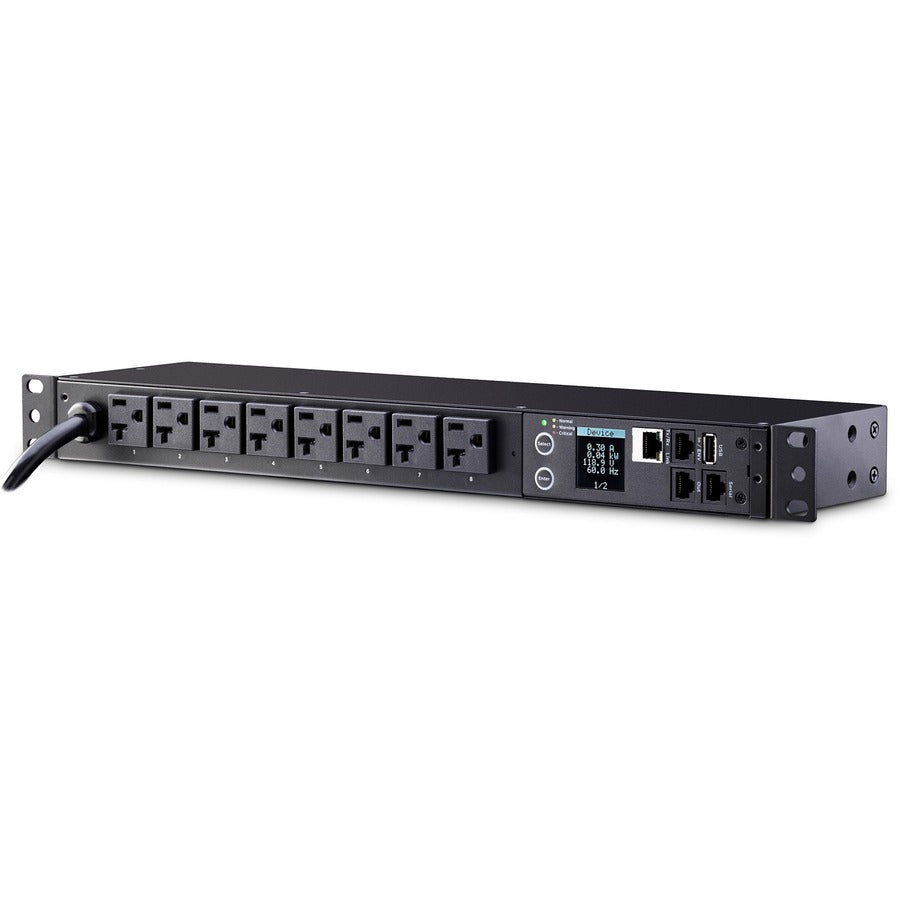

CyberPower PDU31002 Monitored PDU, 100-120V, 20A, 8 NEMA 5-20R Outlets, 1U Rackmount PDU31002

The CyberPower PDU31002 an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 120V 20A output. PDU31002 distributes power to 8 NEMA 5-20R receptacles from a single twist lock NEMA L5-20P, or, with the included adaptor, NEMA 5-20P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.

• Delivers AC power to servers, equipment, and connected devices
• Switch-free design safeguards against accidental power shutdown
• Provides local and remote control for individual and multiple outlets
• Enables offsite and onsite tracking of PDU vitals
• Provides immediate updates about power events via email, SMS text, or SNMP traps
• Includes 3-year limited warranty

• Delivers AC power to servers, equipment, and connected devices
• Switch-free design safeguards against accidental power shutdown
• Provides local and remote control for individual and multiple outlets
• Provides immediate updates about power events via email, SMS text, or SNMP traps
• Includes 3-year limited warranty

• Energy Star : No
• Product Series : Monitored PDU
• Input Voltage : 120 V AC
• Management :
  • IPv4
  • TCP/IP
  • UDP
  • SNMPv1
  • HTTP
  • NTP
  • DNS
  • Telnet
  • DHCP
  • SMTP
  • FTP
  • IPv6
  • SNMPv3
  • HTTPs
  • SSH
  • SSL
  • TLS
  • LDAP(S)
  • RADIUS
  • Syslog
  • CLI
  • Windows AD
• Rack Height : 1U
• Output Voltage Range : 100 V AC - 120 V AC
• Input Current : 20 A
• PDU Type : Monitored
• Mount Type : Rack-mountable
• Package Contents :
  • PDU31002 8 Outlet PDU
  • 2 x Mounting Brackets Short/Long
  • 6 x (M5 x 12) Rack Mounting Screws/Washers
  • Cord Retention Tray
  • 12 x (Flat Head M4 x 8) Bracket Mounting Screws
  • 6 x (M3 x 6) Cord Retention Tray Mounting Screws
  • 12 x Cable Ties
  • RJ45/DB9 Serial Port Connection Cable
  • User's Manual
  • Registration & Software Download Cards
  • Adapter NEMA L5-20R to 5-20P
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Plug/Connector Detail : 1 x NEMA L5-20P
• Input Voltage Range : 100 V AC - 120 V AC
• Plug/Connector Type : NEMA L5-20P
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Receptacle Type : NEMA 5-20R
• Limited Warranty : 3 Year
• Receptacle Detail : 8 x NEMA 5-20R
• Product Model : PDU31002
• Network (RJ-45) : Yes
• Length : 4.40" (111.76 mm)
• Country of Origin : China
