This 4-port HDMI splitter with built-in scaler connects an HDMI video source to four HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), and 7.1 channel audio.
4K 60Hz Resolution
This 4-way HDMI splitter supports up to 4K 60Hz resolution, at 4:4:4 chroma subsampling. The built-in scaler enables enables the concurrent output of 2 resolutions, ideal for environments where there is a variety of displays, monitors, and projectors.
Flexible Audio
This 4K HDMI Splitter features HDMI, 3.5mm, and Optical audio outputs, enabling connections to a variety of speakers and/or amplifiers. Simultaneous audio output is supported across all the audio ports.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The metal enclosure and 8kV air and 4kV contact Electro-static Discharge (ESD) protection is suitable for installation in a variety of environments.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
4-PORT HDMI SPLITTER: This HDMI Splitter displays the same image, with audio, on 4 screens
4:4:4 chroma subsampling support
HDMI 2.0b 4K 60Hz
HDR
18Gbps Bandwidth
7.1ch HDMI Audio
HDCP 2.2/1.4
8kV Air and 4kV Contact ESD Protection

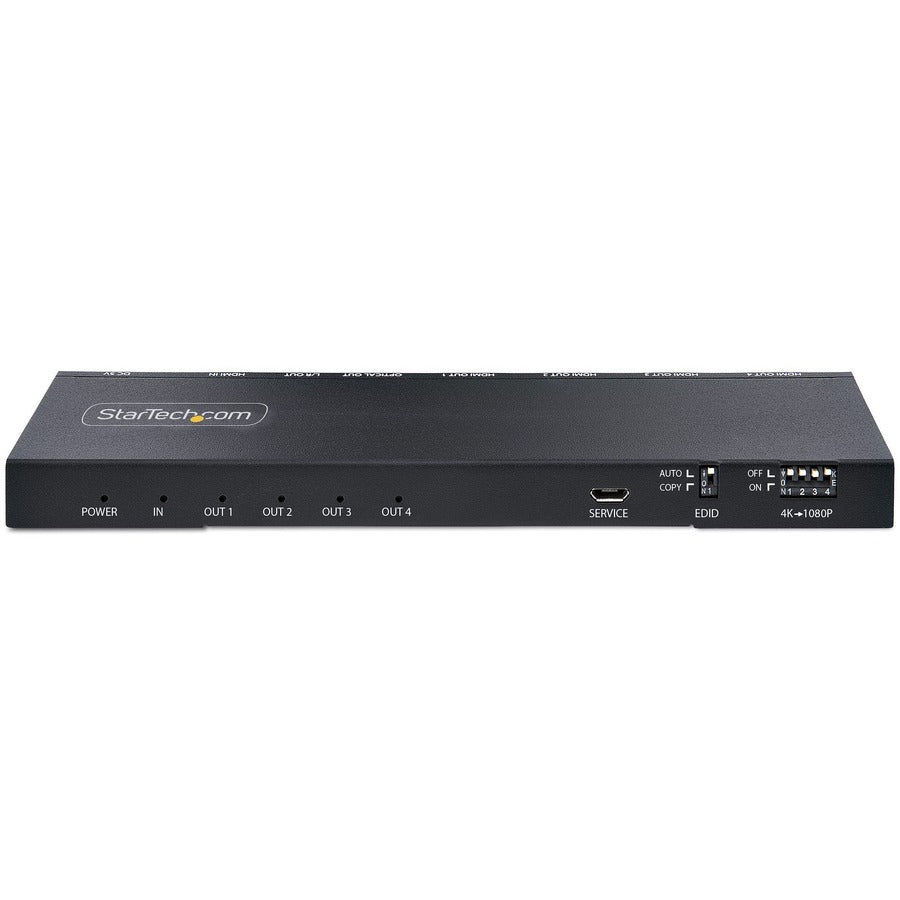

EDID MANAGEMENT SWITCH: The 4 way HDMI Splitter's EDID Auto setting uses a built-in scaler for outputting 2 different display resolutions
EDID Copy clones the EDID settings from output port 1 to another display at the same resolution (720p and up)

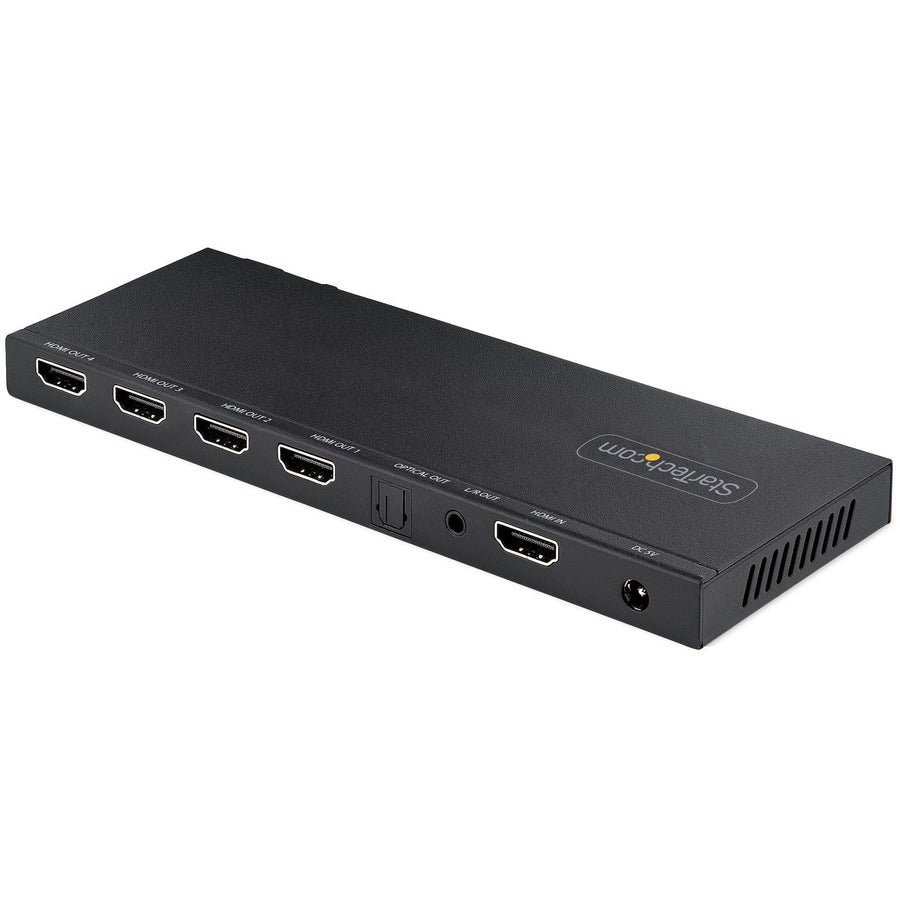

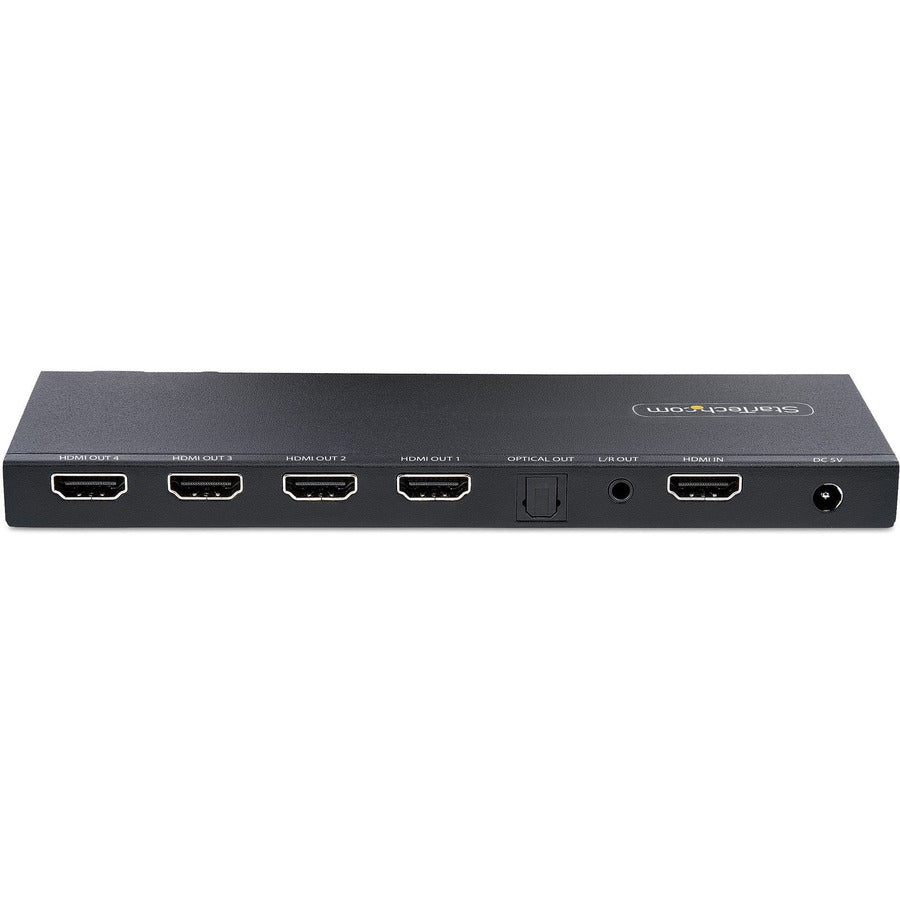

FLEXIBLE AUDIO SUPPORT: The 4K HDMI Splitter has HDMI, 3.5mm, and Optical audio outputs to connect to a variety of speakers or amplifiers
Simultaneous audio output is supported across all ports
Supports Digital to Analog conversion (DAC)
LONG REACH: Reach up to 16.4ft (5m) with passive HDMI cables
The 1x4 HDMI Splitter supports active HDMI cables and HDMI extenders (sold separately) to reach further distances which makes it ideal for boardrooms, digital signage and more
EASY SETUP: No drivers or software required for the 1-Input 4-output HDMI 2.0 splitter
The metal enclosure makes it suitable for installation in many environments
