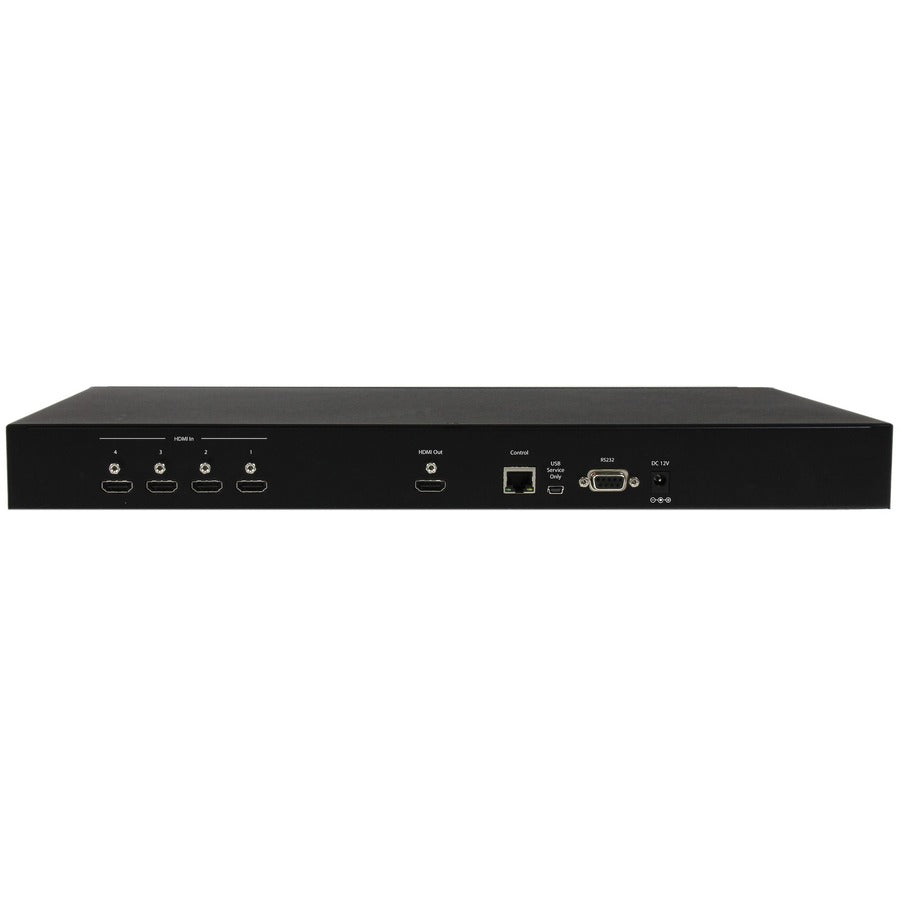

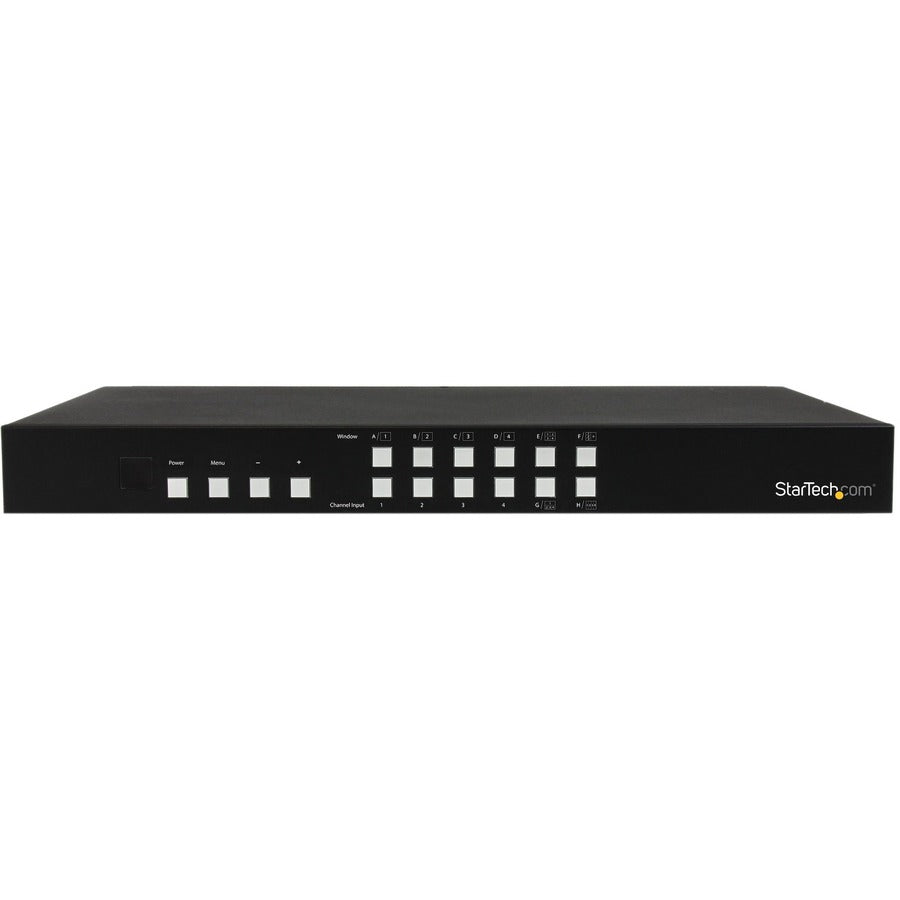

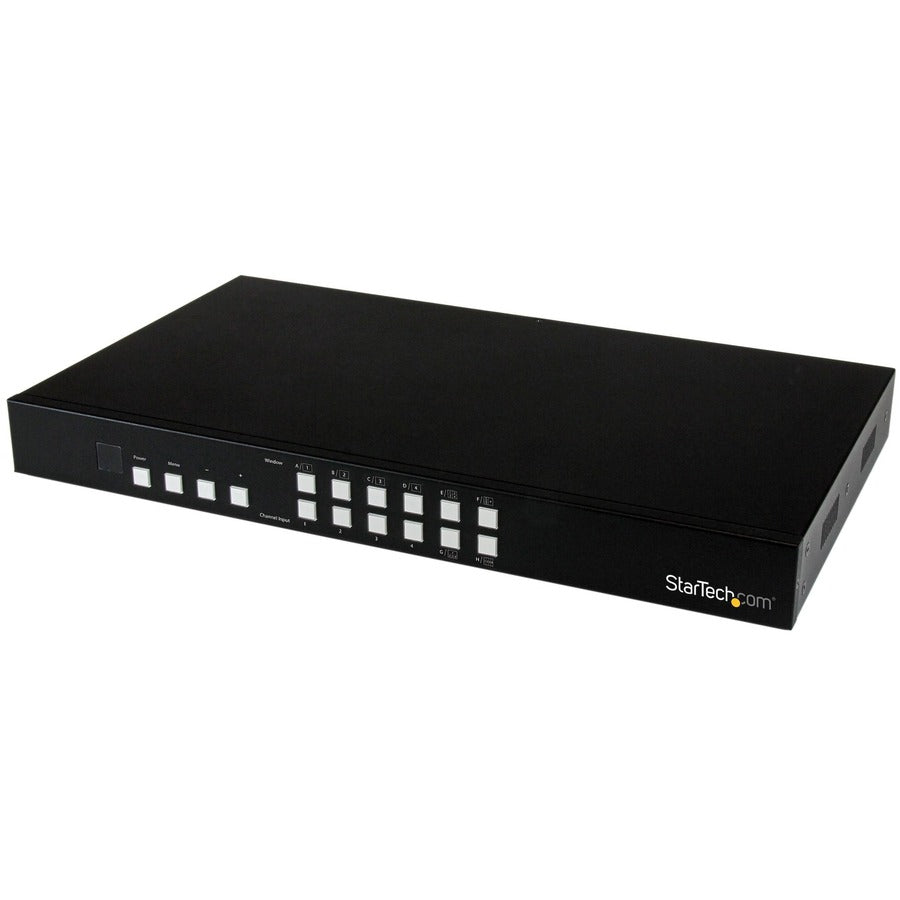

StarTech.com 4-Port HDMI Switch with Picture-and-Picture Multiviewer VS421HDPIP

StarTech.com 4-Port HDMI Switch with Picture-and-Picture Multiviewer VS421HDPIP

Out of stock

For a custom quote please email sales@ziestech.com

The VS421HDPIP 4-Port HDMI Video Switch with Picture-and-Picture (PAP) letsyou connect four HDMI video sources to a single HDMI display with the added benefit of playingall four video sources onyour display simultaneously with combined video.

See the Whole Picture

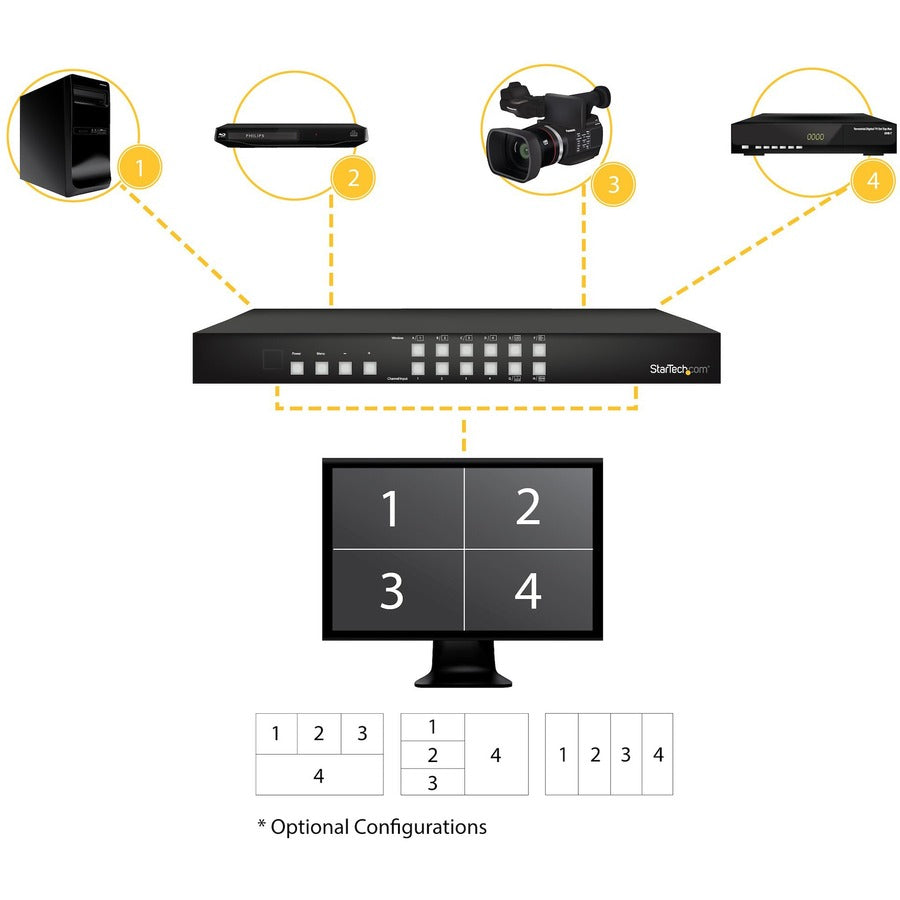

The split-screen multiplexing switchgives you the flexibility of a 4-port video switch with the added benefit ofcombining two, three or four video sourcesonto youroutputdisplay. The switch supportsthree different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) .

Control Your Output

Fitting your boardroom or digital signage application with a VS421HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture switch increase your communication by a factor of four, but it also enables you to adjust your video sources remotely usingyour local TCP/IP network, or the included IR remote control.

Increase the Versatility of Your Display

The VS421HDPIP is a flexible video switch that can improveany video display application.The picture-and-picture technology enables you to share up to four distinct imageson the same screen, reducing required video real estateand saving you from wasting money on additional displays in a digital signage applications. Forsecurity monitoring you cancombine fourvideo sources acrossa single display to view everything more efficiently --you can even zoom into a single feed for a closer look. For versatile installation options mounting hardware is also included ensuring atidy professional installation.

The VS421HDPIP is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

  • Save cost and screen real estate by combining multiple inputs on a single HDMI display
  • Customize your output with multiple display modes for combining video
  • Mounting hardware included
  • Support for video resolutions up to 1920x1200 / 1080p
  • Remote control using Telnet (TCIP/IP Network), or IR (remote control included)
  • Choose which audio source is outputted with your combined video sources
  • TAA Compliant : Yes
  • HDMI Out : Yes
  • Number of HDMI Inputs : 4
  • Packaged Quantity : 1
  • Number of Input Devices Supported : 4
  • Package Contents :
    • 4-Port HDMI Switch with Picture-and-Picture Multiviewer
    • 1 x Remote Control
    • 2 x Mounting Brackets
    • 1 x Universal Power Adapter (NA, UK, EU, ANZ)
    • 1 x Instruction Manual
  • HDMI In : Yes
  • Graphics Modes : WUXGA
  • Number of HDMI Outputs : 1
  • Manufacturer Website Address : http://www.startech.com
  • Device Supported : Digital Signage
  • Connectivity Technology : Cable
  • Maximum Video Resolution : 1920 x 1200
  • Environmentally Friendly : Yes
  • Number of Displays Supported : 1
  • Environmental Certification : REACH
  • Media Type Supported : Twisted Pair
  • Manufacturer : StarTech.com
  • Product Type : Audio/Video Switchbox
  • Limited Warranty : 2 Year
  • Number of Connectivity (RJ-45) Ports : 1
  • Connectivity (RJ-45) : Yes
  • Country of Origin : Taiwan
