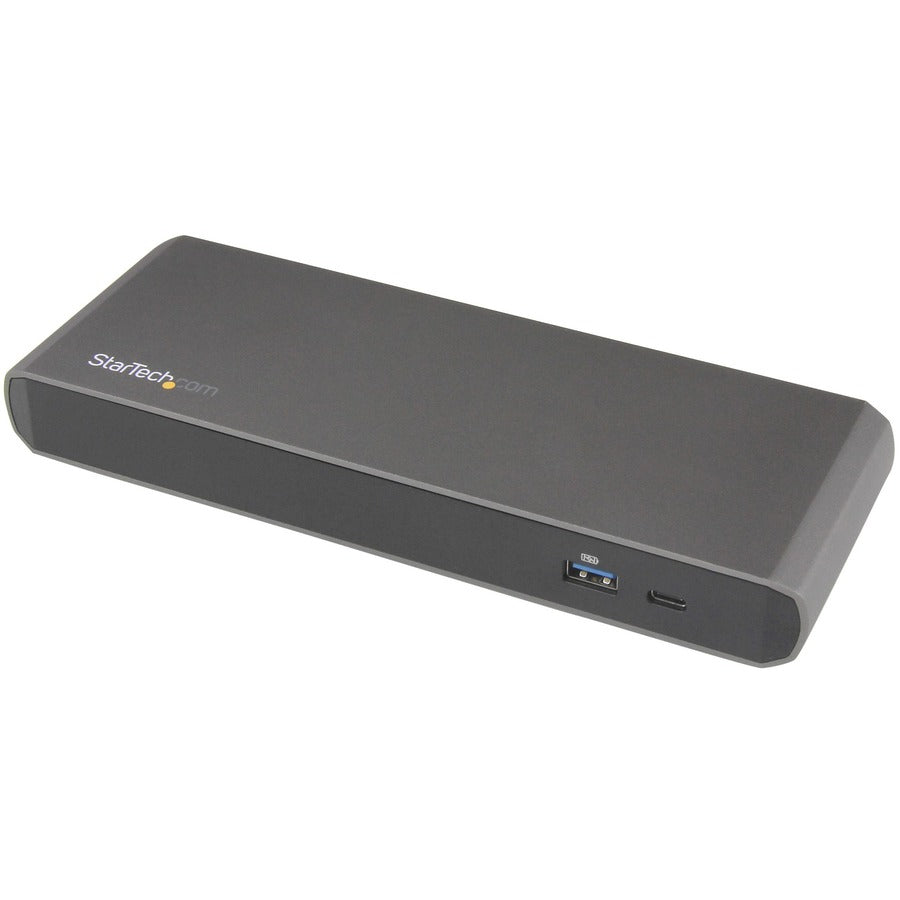

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - No driver installation required - Windows Only - Thunderbolt 3 Dock with Dual-4K Video - Includes TB Cable TB3DK2DPW

Finish Your Work Faster with Thunderbolt 3

You can quickly integrate the dock into your workspace and boost your productivity. With up to 40 Gbps of throughput, you can add extra displays to your laptop, access files faster, and reduce waiting, so you can accomplish more in the same amount of time.

It's the fastest connection available, and it supports multiple video channels and data, without impacting system performance. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.

Multitask at The Highest Resolution

The Thunderbolt 3 dock supports 4K resolutions (3840 x 2160p or 4096 x 2160p) at up to 60Hz when you use a single Thunderbolt 3 display. Creative professionals can be more productive with the freedom to edit 4K video on one display, with a full-size video preview on the second 4K display.

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

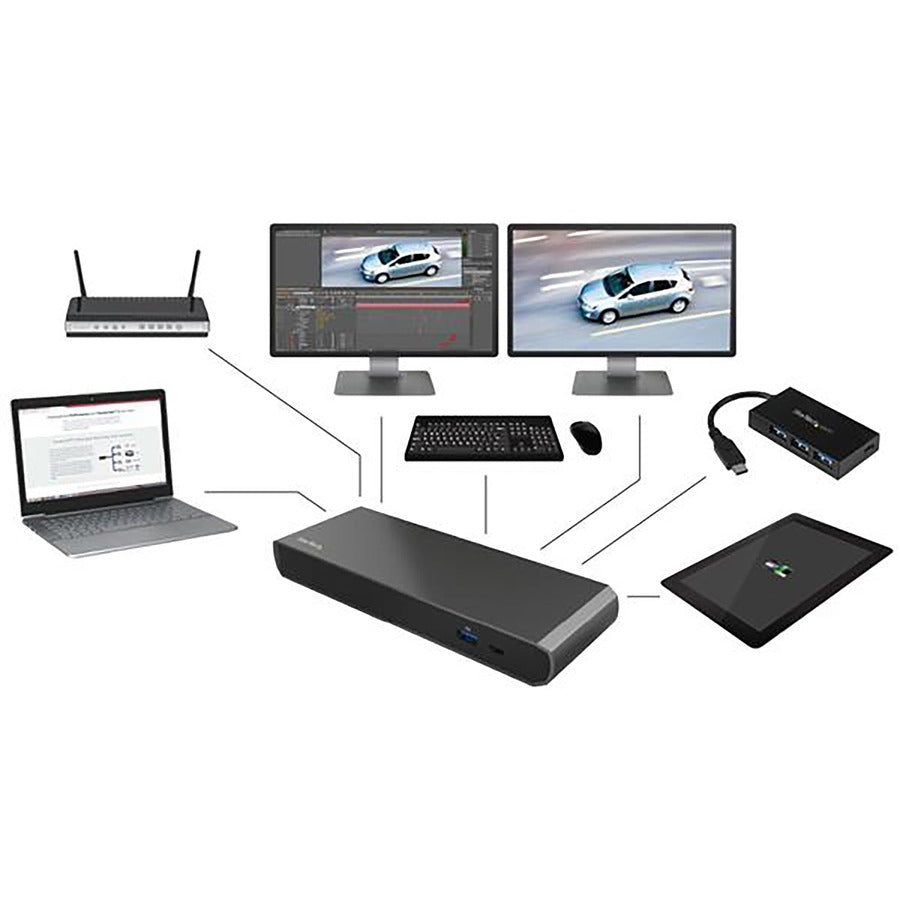

Connect Your Peripherals with Just a Single Cable

Using a single cable and a single port on your laptop, you can transform your Windows laptop into a full-size workstation with access to new and legacy technologies through several different port types. The dock is ideal for virtually all Windows based Thunderbolt 3 equipped laptops such as the Dell™ Precision, Dell XPS, Asus Zenbook Pro Ux501vw, HP Zbook 15 G3, and Lenovo P50.

The dock features two Thunderbolt 3 USB-C ports for connecting to Thunderbolt devices and other peripherals that use the USB-C connector, as well as DisplayPort video output.

Convenient Connections Prepare You for the Future

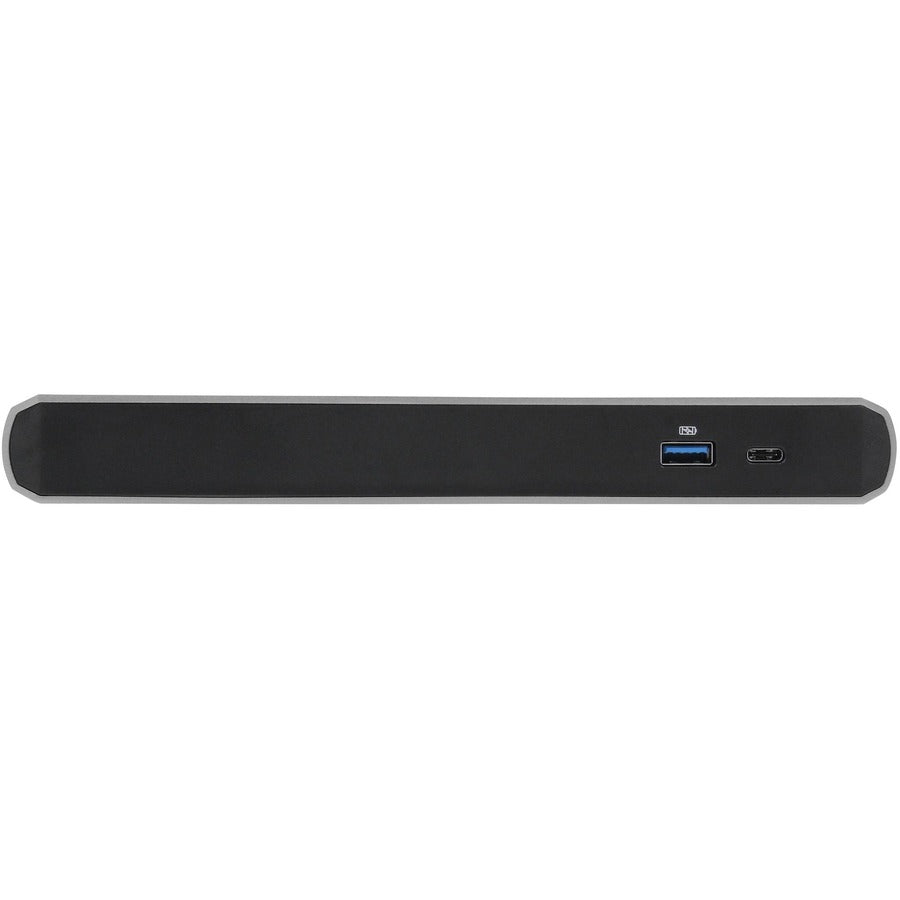

You can keep your mobile device charged and ready to go using the dock's USB fast-charge and sync port. Additionally offering, an extra USB-C port (5Gbps - data only), and a Gigabit Ethernet port.

Video Output Configuration Max DisplayPort Resolution Max Thunderbolt 3 USB-C Resolution DisplayPort and Thunderbolt 3 USB-C (Two Displays - Dual-4K ) 3840 x 2160por 4096 x 2160p (4K) 3840x 2160por 4096 x 2160p (4K) DisplayPort (Single Display - 4K) 3840 x 2160por 4096 x 2160p (4K) N/A Thunderbolt 3 USB-C (Single Display - 4K ) N/A 3840x 2160por 4096 x 2160p (4K - 60Hz) Thunderbolt 3 USB-C Daisy Chain N/A Dependent on the number of Thunderbolt 3 displays

*Lower resolutions are also supported. *When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter may be required depending on the input of your display. *DisplayPort connectivity may be limited to 4K at 30Hz depending on monitor used (see technical specifications for more detail)

The TB3DK2DPW features a rugged aluminum casing, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: This docking station will not charge your host laptop

More from the Manufacturer

• Improve your workflow with single-cable docking and up to 40Gbps bandwidth
• Easy to set up and ready to go with no driver installation required
• Supports dual-4K monitors, with 3840 x 2160p or 4096 x 2160p on each display
• Fast charge your phone or tablet with the always-on USB 3.0 fast-charge and sync port

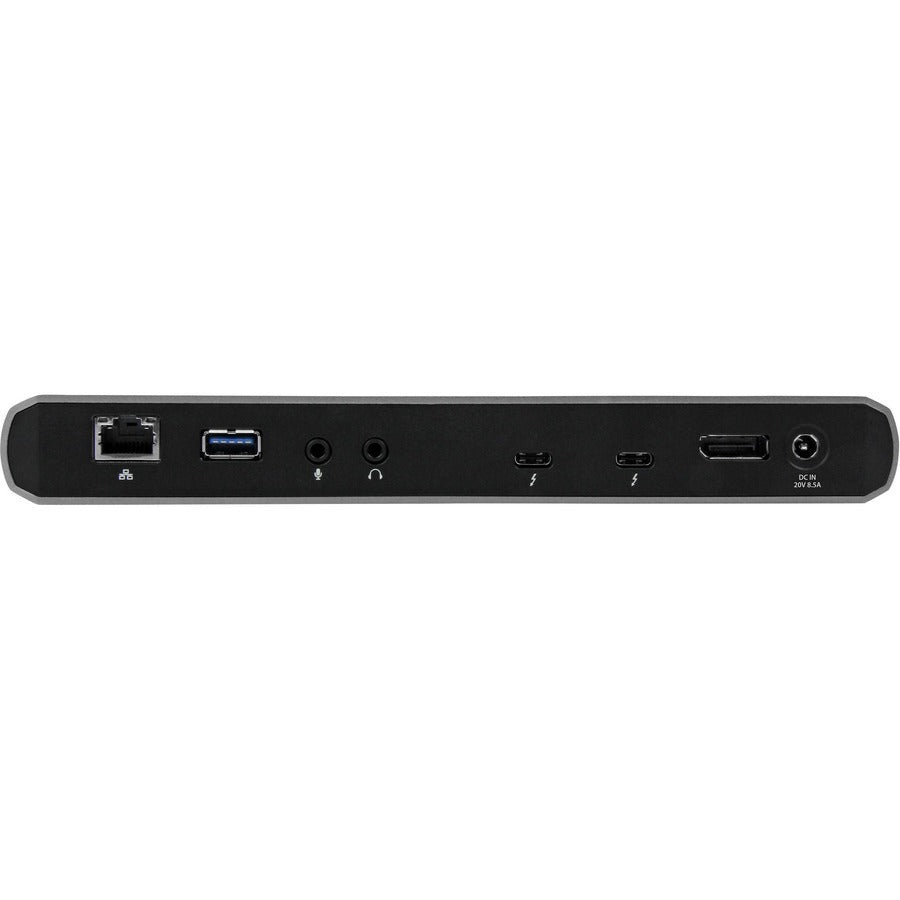

• Includes three USB 3.0 ports (USB-C, 2x USB-A), two Thunderbolt 3 USB-C ports, 3.5mm audio out, 3.5mm microphone in, and GbE
• Thunderbolt Certified and includes a Thunderbolt 3 host cable (0.5 m)

• DisplayPort : Yes
• USB Type-C Detail : 1 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
• Manufacturer Website Address : http://www.startech.com
• Host Interface : Thunderbolt 3
• USB Type-A : Yes
• Country of Origin : China
• Number of DisplayPort Outputs : 1
• Product Color : Gray
• Packaged Quantity : 1
• Package Contents :
  • Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only
  • Thunderbolt 3 Cable - 40Gbps - 0.5m
  • Universal Power Adapter
  • Power Cord (NA)
  • Instruction Manual
• Device Supported : Notebook
• Connectivity Technology : Wired
• Environmentally Friendly : Yes
• Number of Displays Supported : 2
• USB Type-C : Yes
• Operating System Supported : Windows
• Environmental Certification : REACH
• Number of USB 3.0 Ports : 3
• Manufacturer : StarTech.com
• Product Type : Docking Station
• Limited Warranty : 3 Year
• Ethernet Technology : Gigabit Ethernet
• Network (RJ-45) : Yes
• Screen Mode Supported : 4K
• Supported Resolutions : 3840 x 2160
• Total Number of USB Ports : 3
