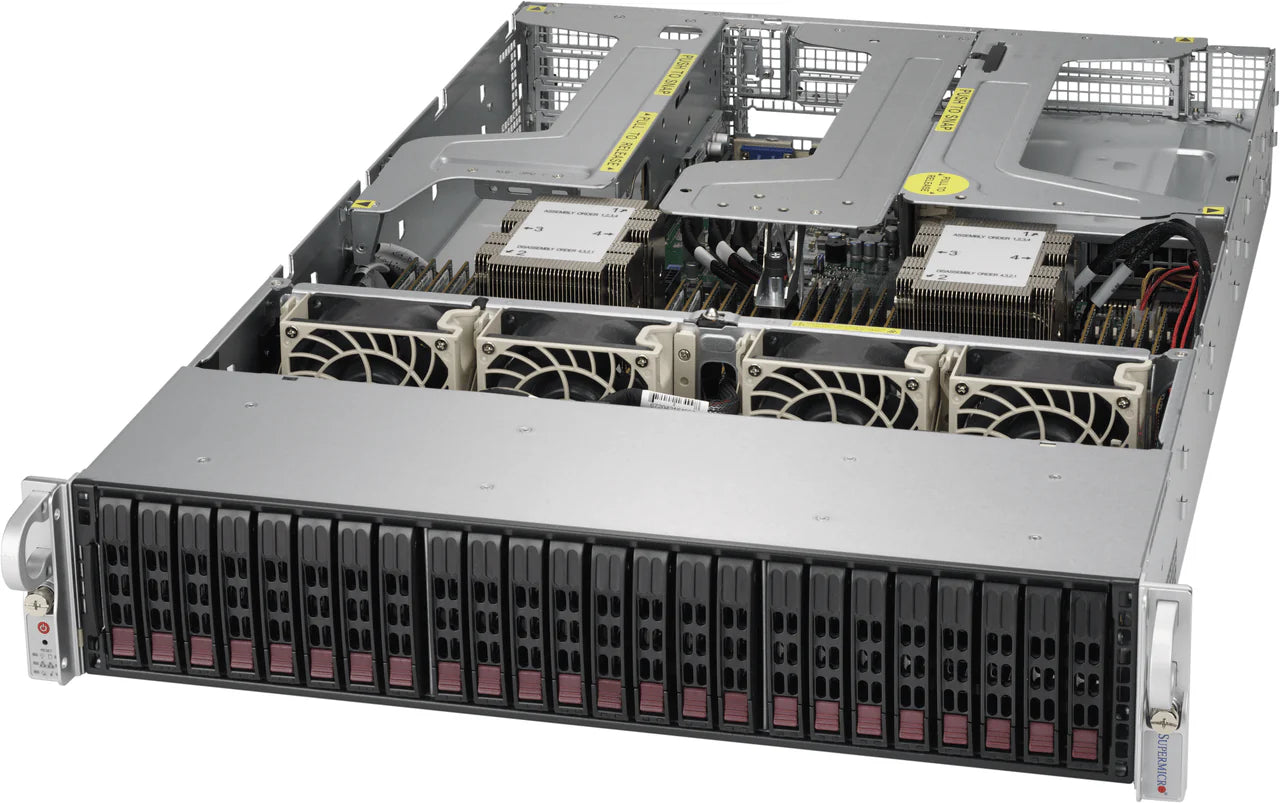

Supermicro SuperServer 2029BT-HNTR Barebone System (SYS-2029BT-HNTR)
For Custom Supermicro Server Configurations Please Contact us at sales@deploydepot.ca or 1-855-885-8324
The Supermicro BigTwin™ is the first and only 2U multi-node system supporting the highest performance processor, memory, storage, I/O and an incredible 30% better thermal capacity. The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs.
Performance: Supporting the 2nd generation Intel® Xeon® Scalable processors up to 205W, the BigTwin achieves incredible performance in a 2U multi-node platform. Each node of the BigTwin supports up to 6TB DDR4-2933MHz in 24 DIMM slots for dramatically faster and increased memory capacity compared to previous generations of Twin systems, as well as support for Intel® Optane™ DC Persistent Memory. With up to 12 hot-swappable 2.5" drive bays per node, storage performance is accelerated with options for All-Flash NVMe, SAS or SATA drives.
Density: BigTwin systems boast incredibly high density with up to 4 hot swappable nodes in a 2U form factor, and double the I/O capacity of competitive 2U solutions. Support for Supermicro I/O Module (SIOM) enables flexible networking options of 1G, 10G, 25G, or 100G Ethernet or 100G InfiniBand/Omni-Path and frees up 2 low-profile PCI-E 3.0 x16 expansion slots per node.
Efficiency: Supermicro's Twin architecture is designed with power and cost efficiency in mind. The BigTwin reduces power consumption with shared cooling and power design, leveraging redundant 2200W high efficiency (96%) power supplies. Maximum compute in a 2U system enables data center footprints to be reduced by 50% compared to standard 2U servers with equivalent performance.
Controllers
Controller Type
Serial ATA
Network & Communication
Ethernet Technology
Gigabit Ethernet
Warranty
Limited Warranty
3 Year
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
Package Contents
SuperServer 2029BT-HNTR (Black)
4 x Super X11DPT-B Motherboard
1 x 2U Chassis
4 x Hybrid BPN to support 4 SATA and/or NVMe in addition to 2 SATA ports,HF,RoHS
1 x 2U 4-Node 24-Port Backplane Supports 2x2.5\" SATA3/SAS3 SSD/HDD and 4x2.5\" SATA3/SAS3/NVMe Stoage Media per Node
2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
8 x Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI
16 x Black Gen3 hot-swap 2.5 inch HDD tray with lock, orange tab
1 x 217B BigTwin type I (Impact) BPN retention bkt w/ foam assy
4 x Bigtwin air box for X11DPT-B(4pcs/set)
4 x Bigtwin 2U4N plastic air shroud (2pcs) for Cascade lake MB
1 x 2029BT-H(N/T/NC0)R Quick Reference Guide
4 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
4 x 1U RHS TwinPro Riser card with one PCI-E x16 slot
4 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
4 x 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
2 x 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48
