Teltonika BAT120 Uninterruptable Power Supply
Teltonika BAT120 Uninterruptable Power Supply
Low stock: 2 left
For a custom quote please email sales@ziestech.com

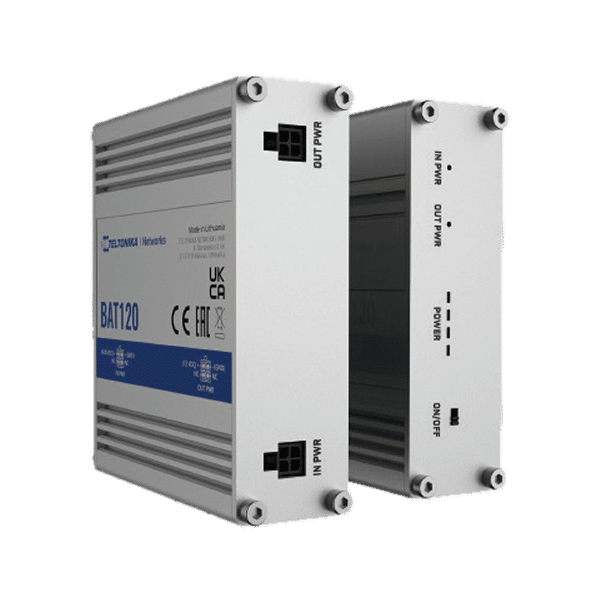

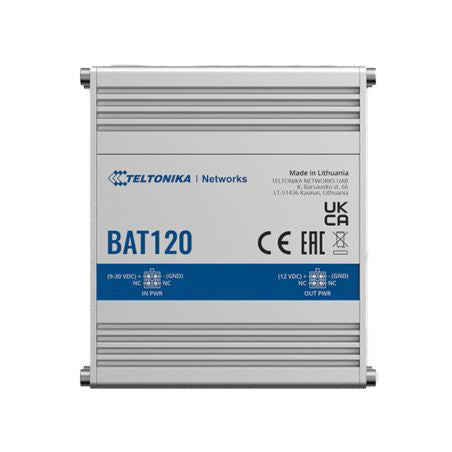

Teltonika BAT120 Uninterruptable Power Supply (BAT120)
BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. // Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features. // This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur.
-
Connector
4-pin industrial DC power socket
-
Input power/max charging current
Charger: max 4 W / 300 mA (max battery charging current)
-
Input voltage range
9 – 30 VDC
-
Input protection
Reverse polarity protection, Overvoltage protection
-
Output voltage in passthrough mode
9 – 30 VDC
-
Output voltage in battery mode
12 VDC
-
Output protection
3 A overcurrent protection
-
Max output power/current in battery mode
22 W / 1.8 A
-
Battery capacity
2300 mAh 17 Wh
-
Power IN
1x 4-pin DC connector
-
Power OUT
1x 4-pin DC connector
-
Status LEDs
1x IN PWR LED, 1x OUT PWR LED, 4x Power status LEDs
-
Switch
On/Off slider switch
-
Alarm Output
1x Active HIGH output, max output 12 V, 2.5 mA
-
Lithium cells
2x 18650 Li-Ion cells
-
Compatible devices
RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100
-
Casing material
Aluminum housing
-
Dimensions
100 x 30 x 85 mm
-
Weight
315g
-
Mounting options
DIN Rail, flat surface placement
-
Operating temperature
0 °C ~ 45 °C
- Regulatory
CE/RED, UKCA, EAC
