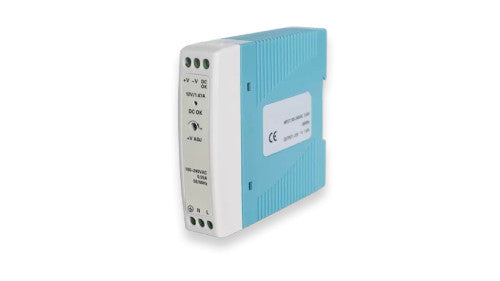

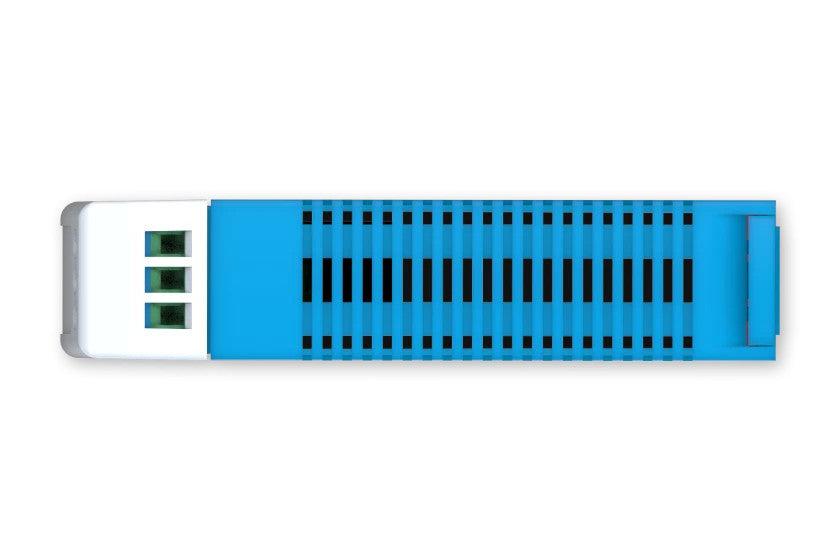

Teltonika DIN Rail Power Supply

Teltonika DIN Rail Power Supply

Out of stock

For a custom quote please email sales@ziestech.com

FEATURES
ORDERING
TECHNICAL DATA

  • Single output power

    20 W

  • Input voltage range

    85 - 264 VAC 47 - 63 Hz

  • DC output voltage

    12 V

  • DC output current

    0 - 1.67 A

  • Output ripple and noise

    120 mVp-p

  • Line regulation

    ±1 %

  • Load regulation

    ±1 %

  • Efficiency

    80 %

  • Adjustable range for DC voltage

    ±1 %

  • Test standard

    EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

    EN 55022:2010

    EN 61000-3-2:2014

    EN 61000-3-3:2013

    EN 55024:2010/A1:2015

  • Inrush current

    Cold start current 20 A / 115 VAC; 40 A / 230 VAC

  • Overload protection

    105 % - 160 % cut off the output, automatic recovery

  • Over voltage protection

    120 % - 140 % shut down O/P voltage, off / on cycle required for recovery

  • Setup, rise, hold up time

    500 ms, 30 ms / 230 VAC at full load; 1000 ms, 30 ms / 115 VAC at full load

  • Withstand voltage

    I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute

  • Isolation resistance

    I/P-O/P I/P-FG O/P-FG: 500 VDC / 1000 MΩ

  • Working temperature

    -10 °C - +50 °C

  • Mounting options

    35 mm DIN Rail

  • Dimensions

    22.5 x 90 x 100 mm

  • Weight

    190 g

    Compatible With: RUT200, RUT240, RUT241, RUT260, RUT300, RUT301, RUT360, RUT361, RUT901, RUT906, RUT950, RUT951, RUT955, RUT956, RUTM50, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, TRB140, TRB141, TRB142, TRB143, TRB145, TRB245, TRB246, TRB255, TRB256, TRB500, TRM240, TRM250, TSW100, TSW101, TSW110, TSW200, TSW210
