Teltonika L2 Managed POE+ Ethernet Switch - TSW212

Out of stock

For a custom quote please email sales@ziestech.com

MANAGED ETHERNET SWITCH

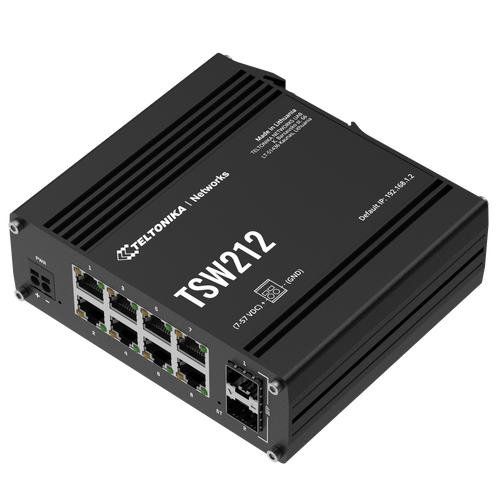

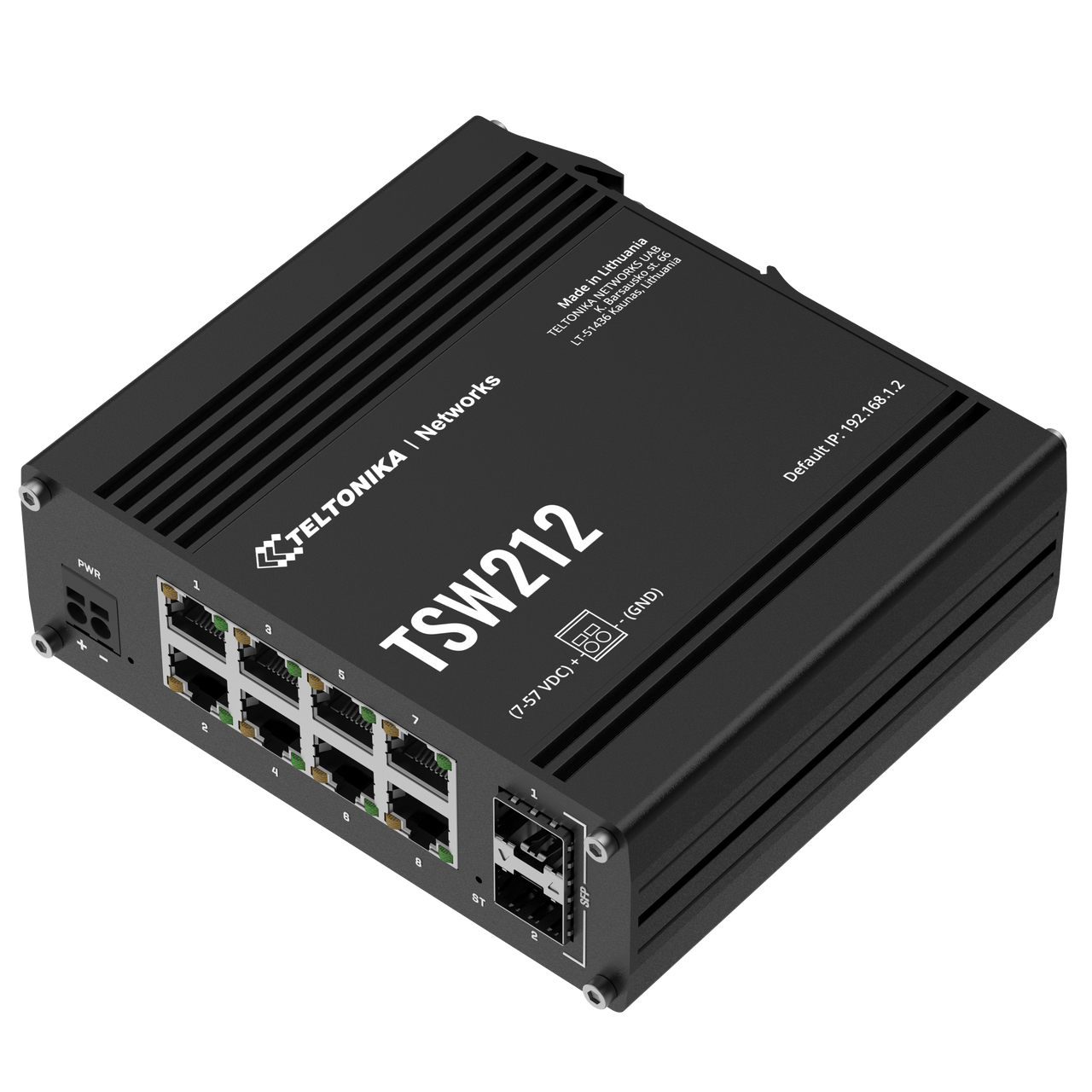

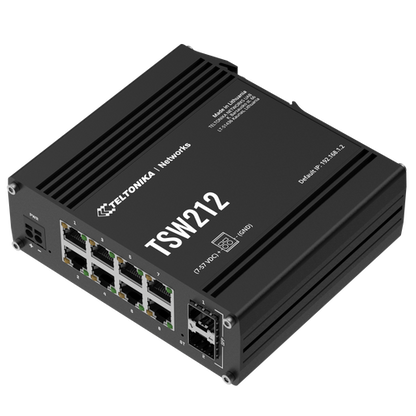

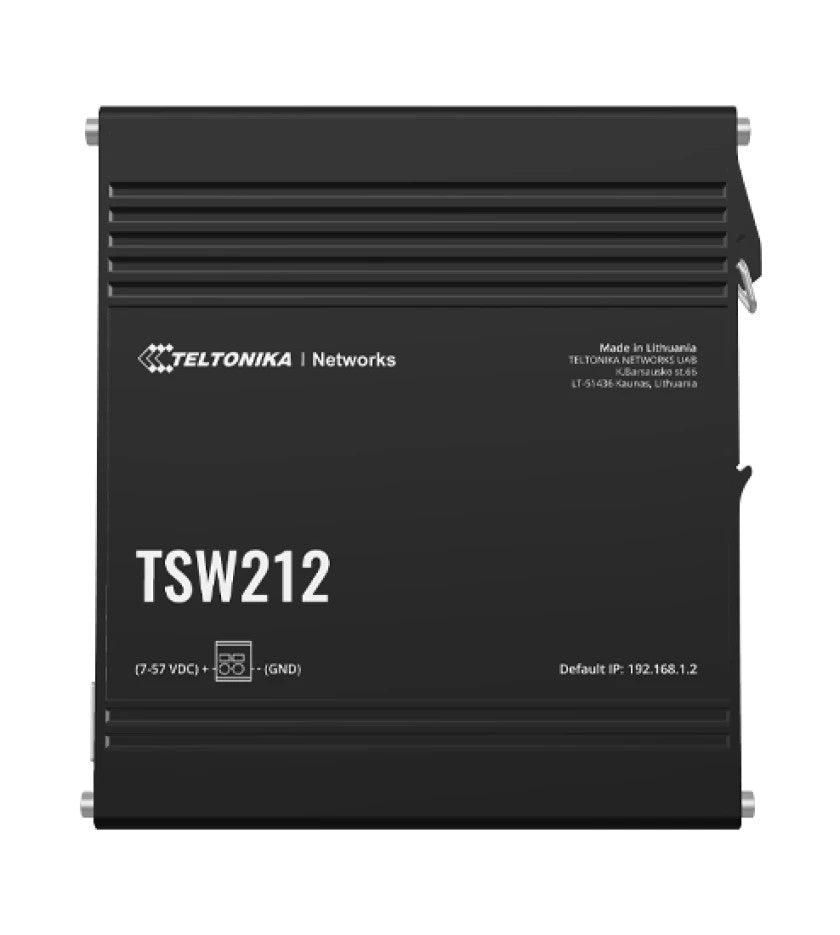

TSW212 is an L2 Teltonika Networks managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.

ETHERNET

ETH

Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre

2 x SFP ports
IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x

SERVICES

EtherNet/IP

Yes
Profinet (class B)

Yes
SNMP V2, V3

Yes
LLDP

Yes
802.1x

Yes

NETWORK

MRP

MRP client role, MRP manager role
L2 features

Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP

DHCP server, DHCP client
Port Settings

Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

QOS

Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method

SP/WFQ/WRR
Bandwidth control

Rate limiting, storm control
Traffic Shaper

Port-based shaping

DIAGNOSTICS

Tools

Cable diagnostic, ping, traceroute, nslookup

API

Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

SYSTEM CHARACTERISTICS

RAM

128MB, DDR3
FLASH storage

16 MB serial flash

FIRMWARE / CONFIGURATION

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system

TSWOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++
Development tools

SDK package with build environment provided

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)

20 Gbps
Forwarding rate

14.88 Mpps
Packet buffer

512 KB
MAC address table size

8K entries
Jumbo frame support

10000 bytes

POWER

Connector

2-pin industrial DC power socket
Input voltage range

7 – 57 VDC
Power consumption

Idle: < 2.5 W / Max: 6 W

PHYSICAL INTERFACES

Ethernet

8 x RJ45 ports, 10/100/1000 Mbps
Fibre

2 x SFP ports
Status LEDs

1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power

1 x 2-pin industrial DC power socket
Reset

Software reset button
Other

1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material

Anodized aluminum housing and panels
Dimensions (W x H x D)

132 x 44.2 x 122.2 mm
Weight

615 g
Mounting options

Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C
Operating humidity

10% to 90% non-condensing
Ingress Protection Rating

IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC EMISSIONS & IMMUNITY

Standards

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2: 2019 + A1:2021

EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD

EN 61000-4-2:2009
Radiated Immunity

EN IEC 61000-4-3:2020
EFT

EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017
CS

EN 61000-4-6:2014
DIP

EN 61000-4-11:2020

SAFETY

Standards

CE: EN IEC 62368-1:2020 + A11:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
