Teltonika PR1KCS28 Combo

Teltonika PR1KCS28 Combo

Out of stock

For a custom quote please email sales@ziestech.com

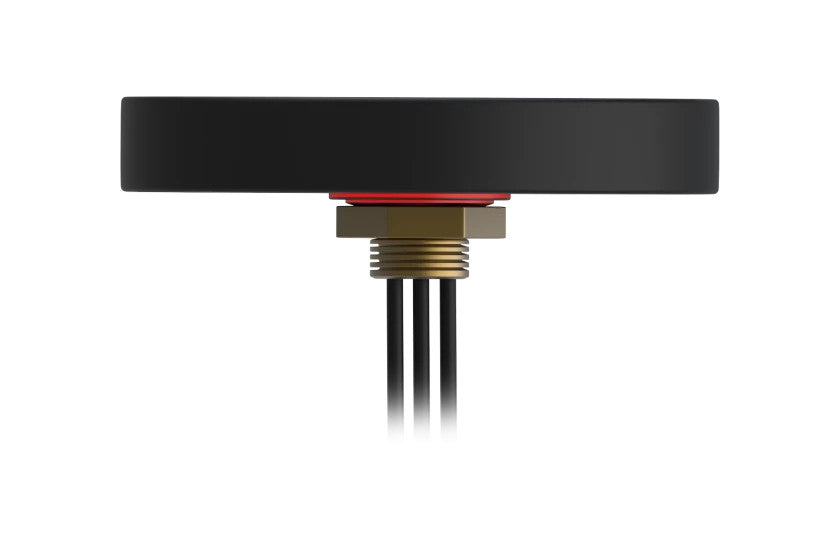

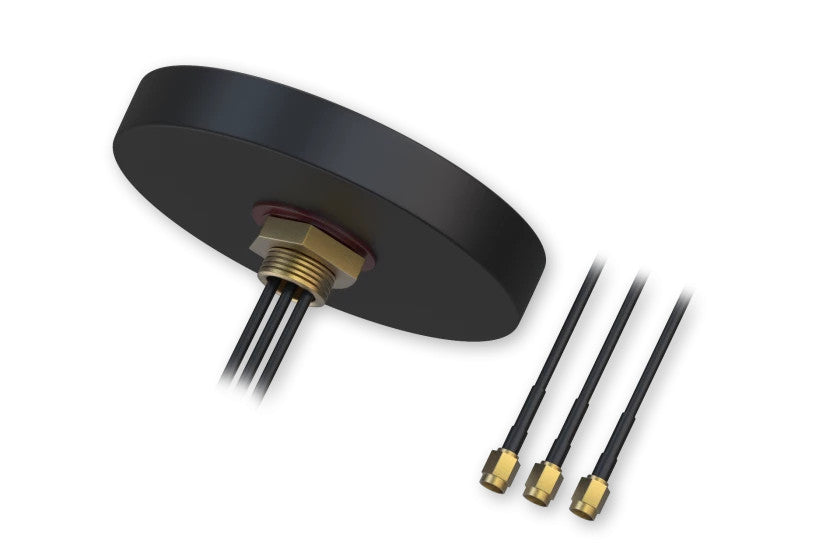

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA PR1KCS28

MECHANICAL/ENVIRONMENTAL

  • Mounting method

    Screw

  • Radome ingress protection rating

    IP67 (exclude cable outlet)

  • Radome material

    ABS

  • Housing dimensions

    Ø 80.5 x 15.2 mm

  • Cable

    3x RG174, 3000 mm

  • Operating temperature

    - 40 ~ +85 °C

  • Weight

    215 ± 10 g

  • UV resistance

    ✓

  • RoHS Compliant

    ✓

GNSS ANTENNA

  • Frequency range

    1575 – 1610 MHz

  • Polarization

    RHCP

  • LNA gain

    28 dBi

  • LNA noise figure

    1.5 dB

  • V.S.W.R

    ≤ 1.5

  • Impedance

    50 Ω

  • Supply voltage

    2.7 – 5.0 ± 0.5 VDC

  • Current consumption

    < 15 mA

  • Connector type and count

    SMA Male

LTE ANTENNA

  • Frequency range

    617 – 960, 1710 – 2690 MHz

  • Polarization

    Linear

  • Radiation pattern

    Omni - Directional

  • Gain

    3.5 dBi

  • V.S.W.R

    ≤ 1.5

  • Impedance

    50 Ω

  • Connector type and count

    SMA Male

WIFI ANTENNA

  • Frequency range

    2350 – 2500 MHz

  • Polarization

    Linear

  • Radiation pattern

    Omni - Directional

  • Gain

    2.5 dBi

  • V.S.W.R

    ≤ 1.5

  • Impedance

    50 Ω

  • Connector type and count

    RP-SMA Male
