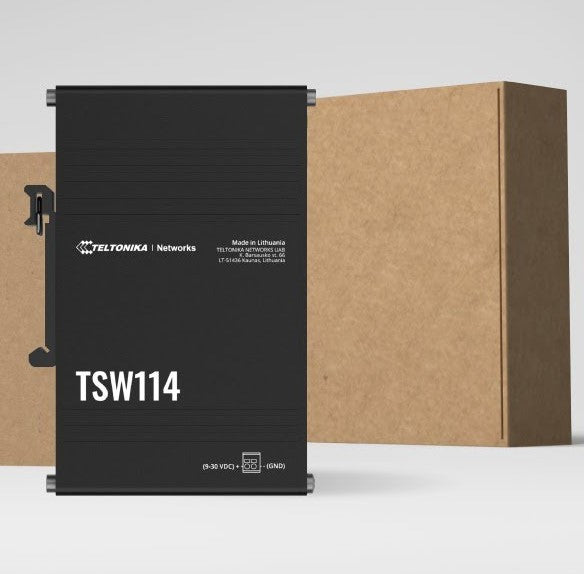

Teltonika TSW114 Gigabit Rail Switch (TSW114)
A device designed for industrial environments, where space is often limited yet network connectivity is essential. That’s what our newest addition to the switches’ portfolio – the TSW114 – is all about!
// TSW114 is an affordable way to simplify your connectivity with its plug-n-play nature.
// 5 x Gigabit Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices."
// Compact size, front-facing ports, and an integrated DIN rail bracket enable easy installation across many industrial environments and especially control cabinets.
// This rugged, anodized aluminum-housed unmanaged switch is the perfect choice for industrial solutions, boasting a wide power supply voltage range of 9-30 V with reverse polarity and voltage surge/transient protection.
FEATURES
| INTERFACES | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| POWER | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power consumption | Idle: 0.3 W / Max: 2.3 W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |
| Mounting options | Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE, REACH, RoHS, WEEE |
| UKCA, FCC, IC, CB, RCM | |
| SAFETY | |
| Standards | EN IEC 62368-1:2020+A11:2020 |
