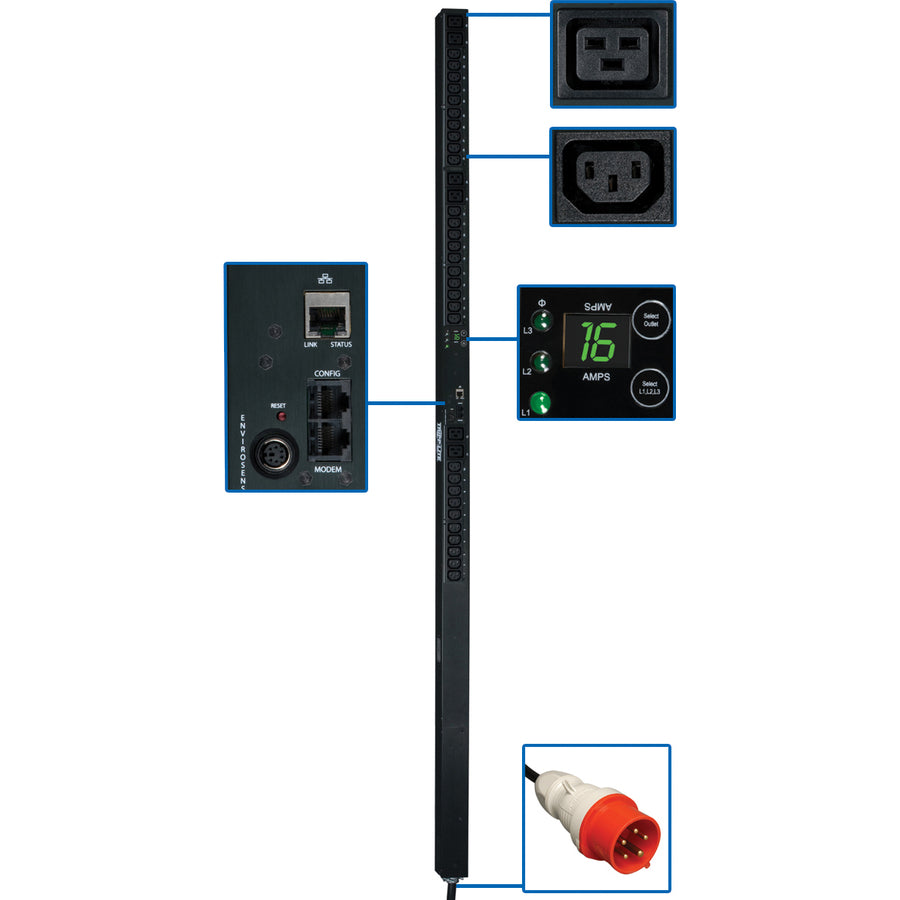

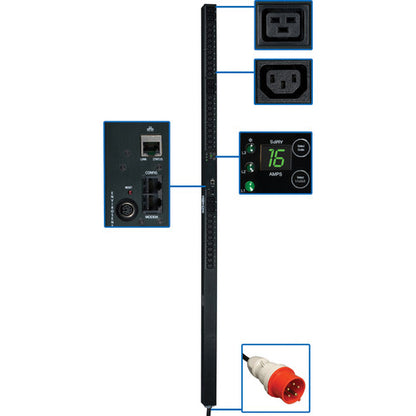

PDU3XVN10G16 Monitored 3 phase 400V input / 230V output Zero U vertical rack PDU supports 11kW total output capacity. Includes 10 ft. / 3m input cord with IEC-309 Red 16A (3P+N+E) 400V 3 phase input plug and 36 230V outlets arranged in 3 single phase output load banks. Each output loading bank contains 12 outlets (10 C13 and 2 C19). Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
Temperature, humidity and contact closure monitoring options
30 C13 & 6 C19 single phase 230V outlets; Included cord retention brackets
IEC-309 Red 16A (3P+N+E) 380/400V 3 phase input; 3m line cord
Visual current meter; Toolless button-mount installation
Reports voltage, frequency and load per-phase via built in ethernet interface
