Waterproof Electrical Junction Box Recommended for Outdoor or Harsh Outdoor Environments

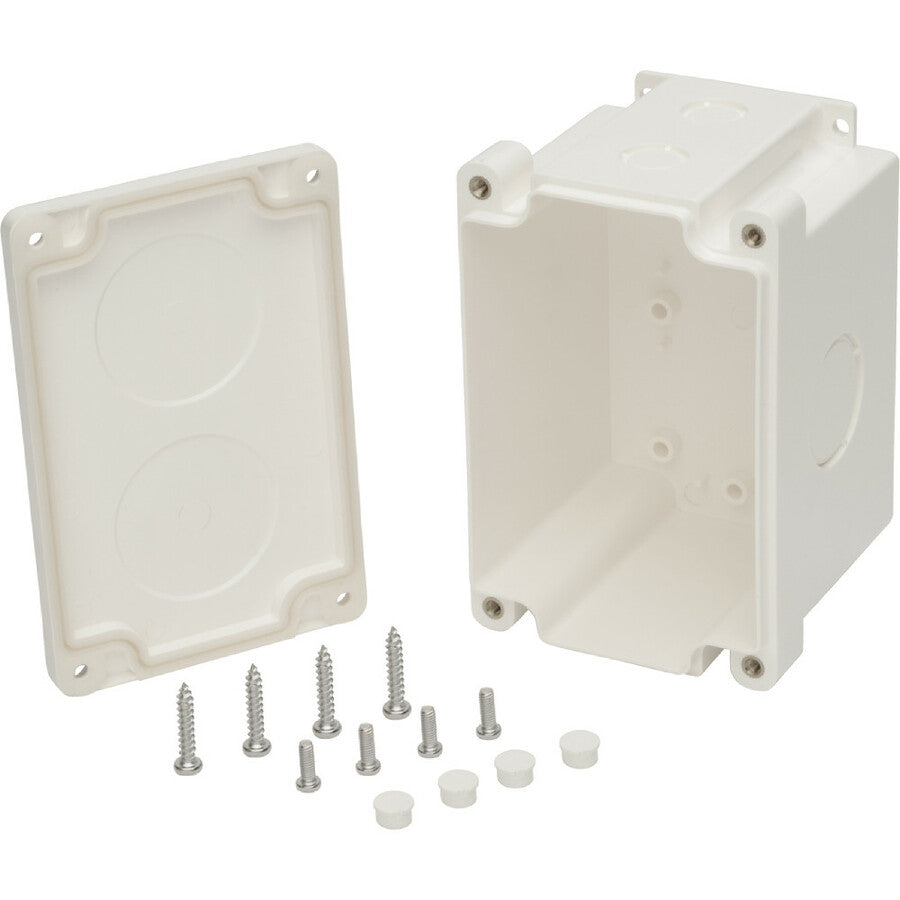

This surface-mount Cat5e junction box is ideal for connecting Cat5e/6 networks or USB 3.0 installations in outdoor applications and other areas where protection from harsh elements is essential. It is constructed with a high-impact polycarbonate (UL94V-0) housing and flexible rubber gaskets. Two knockout holes are suitable for standard M16 cable glands (included) or M32 conduit glands. Wall-mounting hardware is included.
Designed for Use with Tripp Lite Industrial-Grade Cables and Couplers

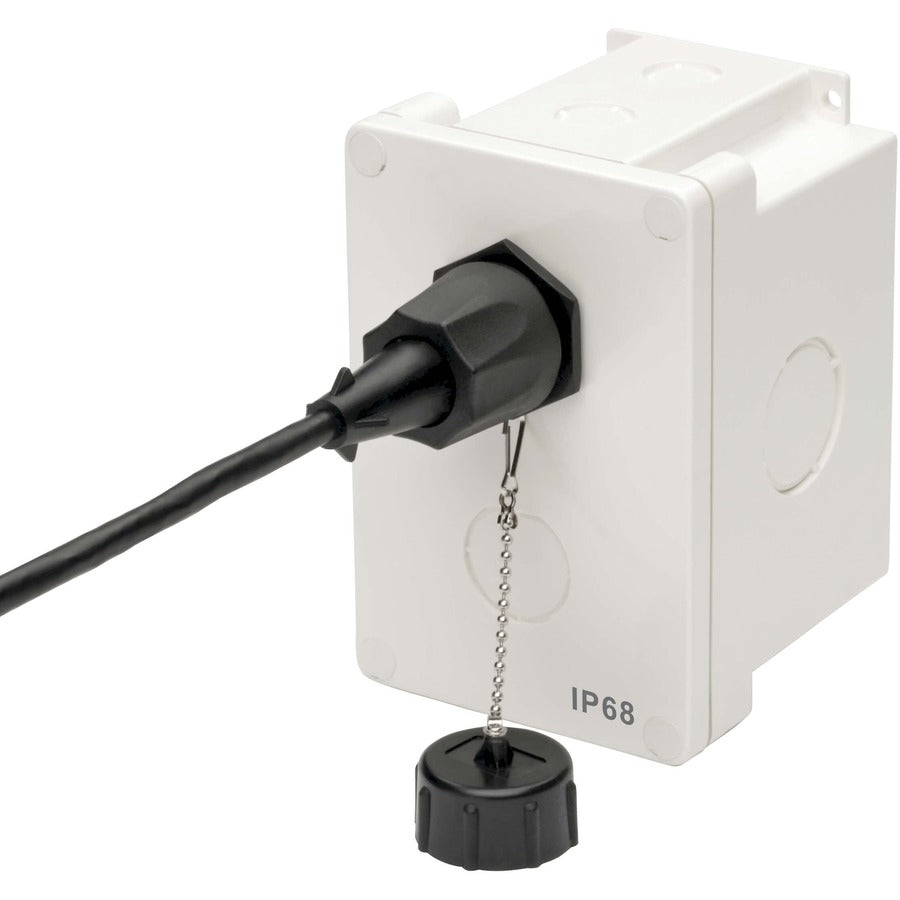

The industrial junction box with two bulkhead cutouts works with Tripp Lite's N206-Series industrial Cat5e/6 patch cables and N206-BC01-IND bulkhead coupler or N206-KJ01-IND keystone jack, as well as the U325-Series industrial USB 3.0 cables and U325-000-IND bulkhead coupler (all sold separately).

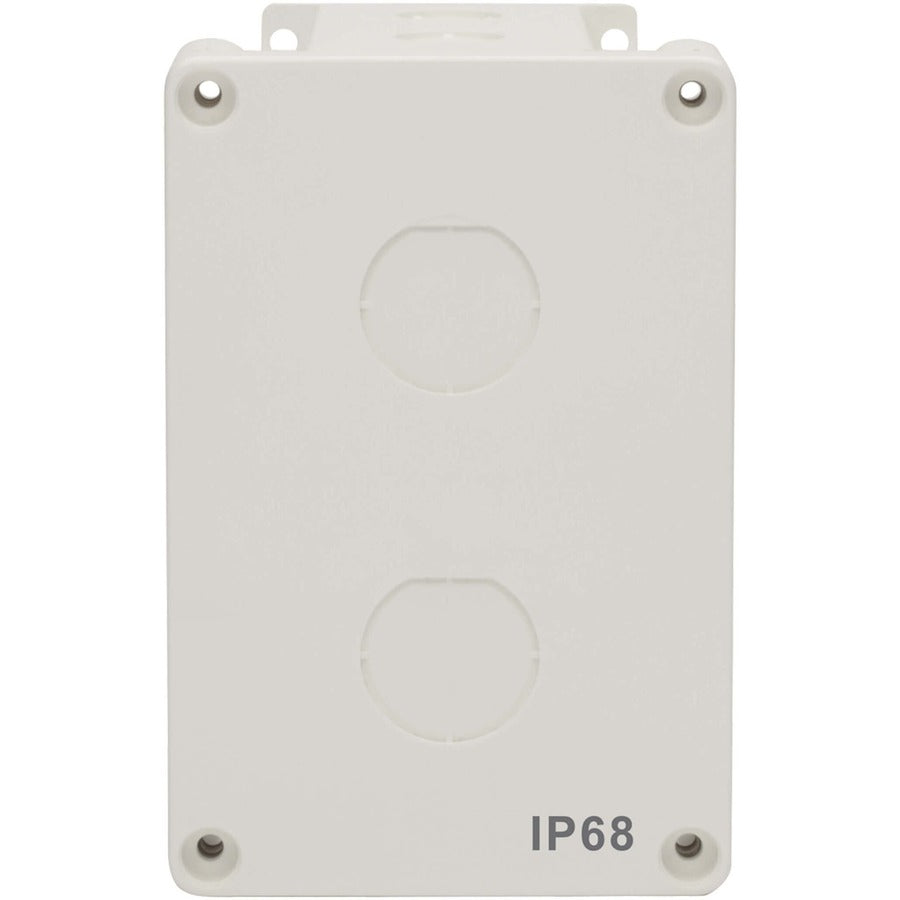

IP68 Rating Denotes Resistance to Dust and Water
The IP68 rating means the junction box is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance, making the box ideal for basement applications.
TAA-Compliant for GSA Schedule Purchases
The N206-SB01-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Lifetime Warranty
The N206-SB01-IND is backed by a lifetime warranty, ensuring reliability and performance.
Typical Applications
Connect Gigabit Ethernet networks, security cameras or digital signage in factories, warehouses, mills and other industrial environments
Provide Cat6 or USB 3.0 connectivity in outdoor environments susceptible to rain, such as a stadium or outdoor arena
Set up outdoor digital signage at malls, theaters and bus stops
Protect IT infrastructure in basements and other areas susceptible to flooding
